Televes 231080 Outdoor Node with Return Path TX (1310nm/3dBm) – Local Powered
19 people are viewing this product right now
Original price was: $1,255.57.$878.90Current price is: $878.90.
Shipping calculated at checkout.
Estimated delivery:3 days
Outdoor Node w/ Return Path TX (1310nm/3dBm) – local powered
- Optical Level Control provides stable output levels within wide optical input range (-8 to 1dBm)
- High RF output (>50dBmV), very low power consumption, and improved C/N
- Full forward bandwidth up to 1 GHz, with extended upstream option
- Local AC powering or remote over coax line
- Three colored LED indicator for optical input level
- Die-cast aluminum housing for excellent heat dissipation and RFI shielding
Guarantee Safe and Secure Payment Checkout
Description
Televes 231080 – Outdoor Node with Return Path TX (1310nm/3dBm) – Local Powered
- High RF output (>50dBmV), very low power consumption, and improved C/N
- Full forward bandwidth up to 1 GHz, with extended upstream option
- Local AC powering or remote over coax line
- Three colored LED indicator for optical input level
Compact outdoor optical node / receiver range, featuring high RF output with AGC feature, extended return bandwidth, and comprehensive attenuation / tilt controls.

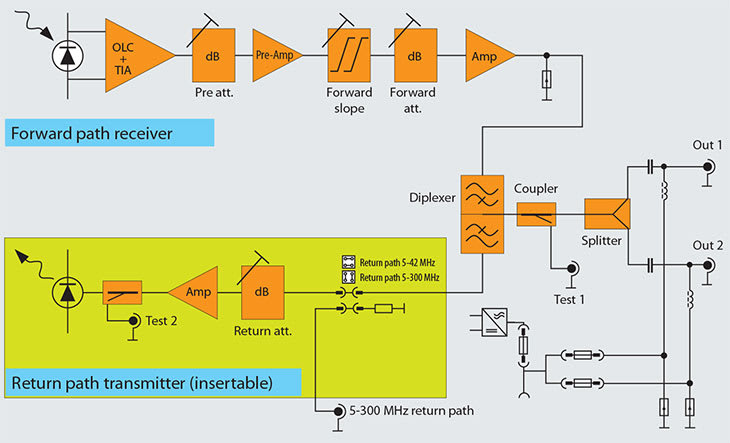

Block diagram

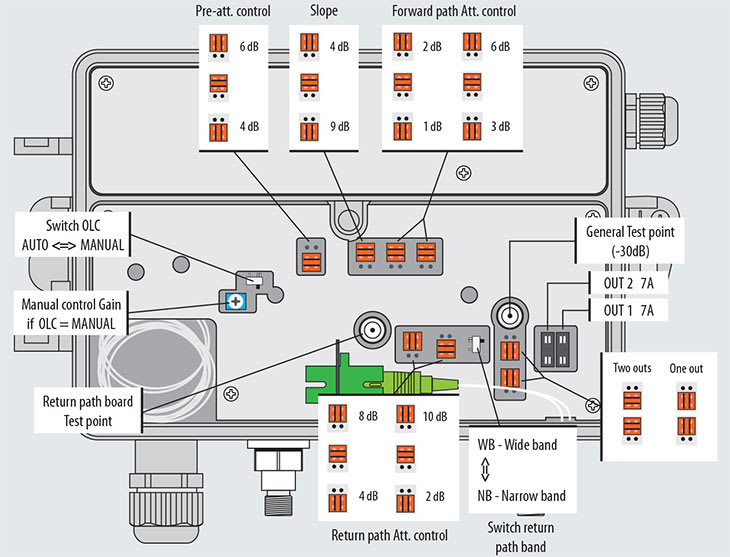

Controls description
Controls description
Select the return path band (WB up to 300MHz or NB up to 42MHz).
- Narrow band (NB): Select the best combination of attenuators up to measure 16-17 dBmV per channel in the return path test point. This measure was done with 6 channels.
- Wide band (WB): Select the best combination of attenuators up to measure 10-12dBmV per channel in the return path test point. This measure was done with 28 channels.
Video Distribution Equipment/Fiber Optic Transmitters / Receivers / Nodes | |
|---|---|
| Type (Fiber Optic Tx Rx Node) | Fiber Optic Nodes |
Product General Attributes | |
| Country of Origin | Spain |
