Televes 5806 A/V Twin T.0X Modulator

Televes 5806 – A/V Twin T.0X Modulator

Twin modulator

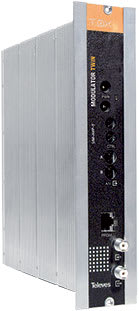

The TWIN unit features two A/V inputs (modules A and B) which generate two independent output channels.

The A/V inputs for each module (A and B) are modulated according to the TV standard in an IF of 38.9 MHz.

The modulated IF signal is converted to any channel or frequency between 46 and 862 MHz and then, once filtered, it is amplified to achieve the specified output level.

It is also possible to control the unit via a PC.

Broadband amplifier

It features two signal input connectors, to allow the mixing of the channels provided by two systems. If only using one of the inputs, it is recommended to load the unused input with a load of 75 ohm, ref 4061.

Output connector and a test socket (-30 dB) are located in the upper part of the front panel. The amplifier is powered with 24 Vdc by means fo a lead which is the same as that used to power the rest of the system’s modules.


19″ rack frame mounting
