Televes 593001 Noise Generator
19 people are viewing this product right now
Original price was: $821.43.$575.00Current price is: $575.00.
Shipping calculated at checkout.
Estimated delivery:3 days
Noise Generator (5-3000MHz)

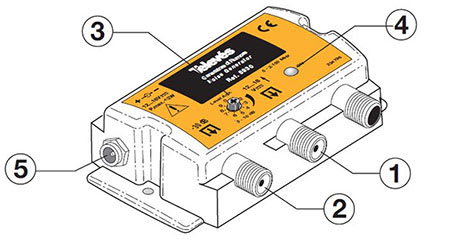

- Normal signal output. Electrical connection from installation to power the simulator.
- Output attenuated by 30 dB compared to output obtained in 1. If the attenuated output is used, the main output must be charged.
- Thumbwheel to vary the output level in both connectors by 10 ± 2 dB.
- LED indicator
- Connector to provide external power to the simulator using the DC adaptor
Guarantee Safe and Secure Payment Checkout
Description
Televes 593001 – Noise Generator (5-3000MHz)
- Output attenuated by 30 dB compared to output obtained in 1. If the attenuated output is used, the main output must be charged.
- Thumbwheel to vary the output level in both connectors by 10 ± 2 dB.
- LED indicator
This band noise generator is typically used to study the distribution network’s frequency response.
- User-selectable output level.
- External or line-powered.
A device designed to carry out attenuation and flatness testing in F.I. satellite installations with no entry signal, connected to a Televés FSM or MTD series field strength meter.
It allows to generate a sign of noise from 5 to 2150 Mhz.
Â
Equipped with a thumb wheel allowing the output level to be varied by 10 ± 2 dB in 10 steps.
- Normal signal output. Electrical connection from installation to power the simulator.
- Output attenuated by 30 dB compared to output obtained in 1. If the attenuated output is used, the main output must be charged.
- Thumbwheel to vary the output level in both connectors by 10 ± 2 dB.
- LED indicator
- Connector to provide external power to the simulator using the DC adaptor
The noise generator can be powered by an mains adaptor, or by the meter via an RF cable. In order to do this simply select the pre-amplifier powering in the meter’s corresponding menu.
Generators / Counters/Noise Generators Template | |
|---|---|
| Minimum Frequency Range | 5 MHz |
| Maximum Frequency Range | 2150 MHz |
Product General Attributes | |
| Safety Approval | CE |
| IP Rating | IP20 |
| Product Height | 65 MM (2.56 IN) |
| Product Length | 27 MM (1.06 IN) |
| Product Width | 98 MM (3.86 IN) |
| Country of Origin | Spain |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 27 × 98 × 65 in |
|---|
