Televes High-VHF V – High-VHF Antenna

• Compared to other High-VHF antennas, the High-VHF V antenna has an innovative, eye-catching design, which optimizes the antenna length without losing its electrical features. The result is a compact antenna with outstanding performance and a differentiating design
• Provides high gain in High-VHF, with exceptional rejection characteristics regarding the adjacent bands
• Allows both horizontal and vertical polarization mounting
• The clamp allows the adjustment of the antenna elevation on the vertical axis
• Built with aluminum (corrosion resistant) for long service life, and in ABS plastic for high weather resistance

An entirely different High-VHF antenna

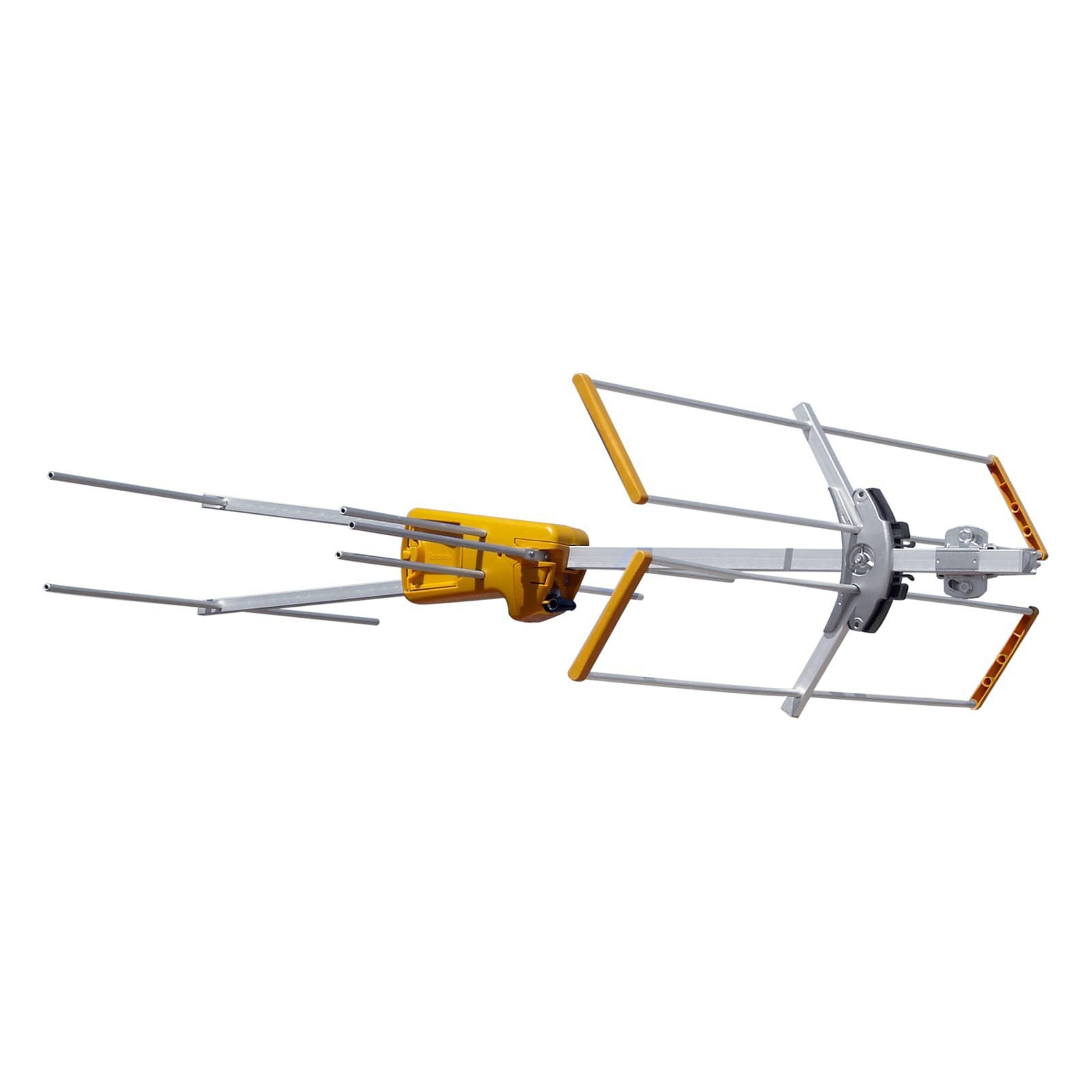

A Yagi antenna for TV reception in High-VHF with an innovative design. Equipped with 4 directors on two vertically stacked grids in an angular aperture, a 4-element reflector and a simple dipole.

Supplied in individual packing.

A Yagi antenna for TV reception on Band III (174-230 MHz), based on our V antenna for UHF. Composed of four directors arranged in two vertically stacked grills with angular aperture, a 4 elements re¬ ector and a single dipole with shielded impedance adapter. The impedance adapter is optimized for the reception in the 174-230 MHz band (channels 5-12), resulting in a great rejection of adjacent bands (FM and UHF). Compared to other BIII antennas on the market, the V BIII antenna features an innovative and striking design, optimizing the length of the antenna without losing electrical characteristics. This results in a compact and high-performance antenna with a distinctive design. The antenna is clamped in one end through a robust ¬ xing system that allows slightly modi cations of the tilt of the antenna on the vertical axis.
