Tempo IC1 – Inductive Coupler for 501 Tracker II Cable Locator

• Inductive clamp
• Compatible with 501 Tracker II cable locator (sold separately)
• Designed to induce tracking tone into subject cable or wire without establishing metallic contact or removing bonds
• Accommodates cable up to 3 inches in diameter

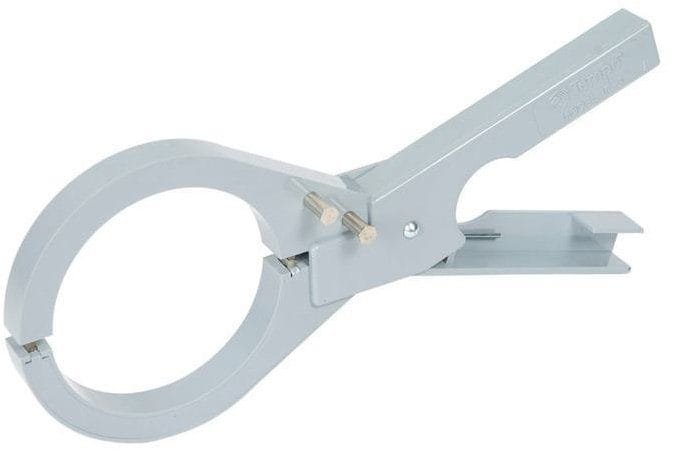

The Tempo IC1 inductive coupler is designed to induce a tracking tone into a subject cable or wire without establishing metallic contact or removing bonds.

The inductive coupler is constructed of plastic and iron and can accommodate up to a 3-inch cable.

Please note: the IC1 is only a clamp – it is not a complete system.

Clamp the inductive coupler around the insulation of the buried cable to be tracked. The coupler must be completely closed to transmit the maximum signal. Connect both transmitter leads to the two terminals on the face of the coupler. Turn the transmitter on to approximately a #5 output setting and radius of the immediate area with the Tracker II receiver to determine the path. The power output may be increased for greater distance.

The images below show two sample applications:
