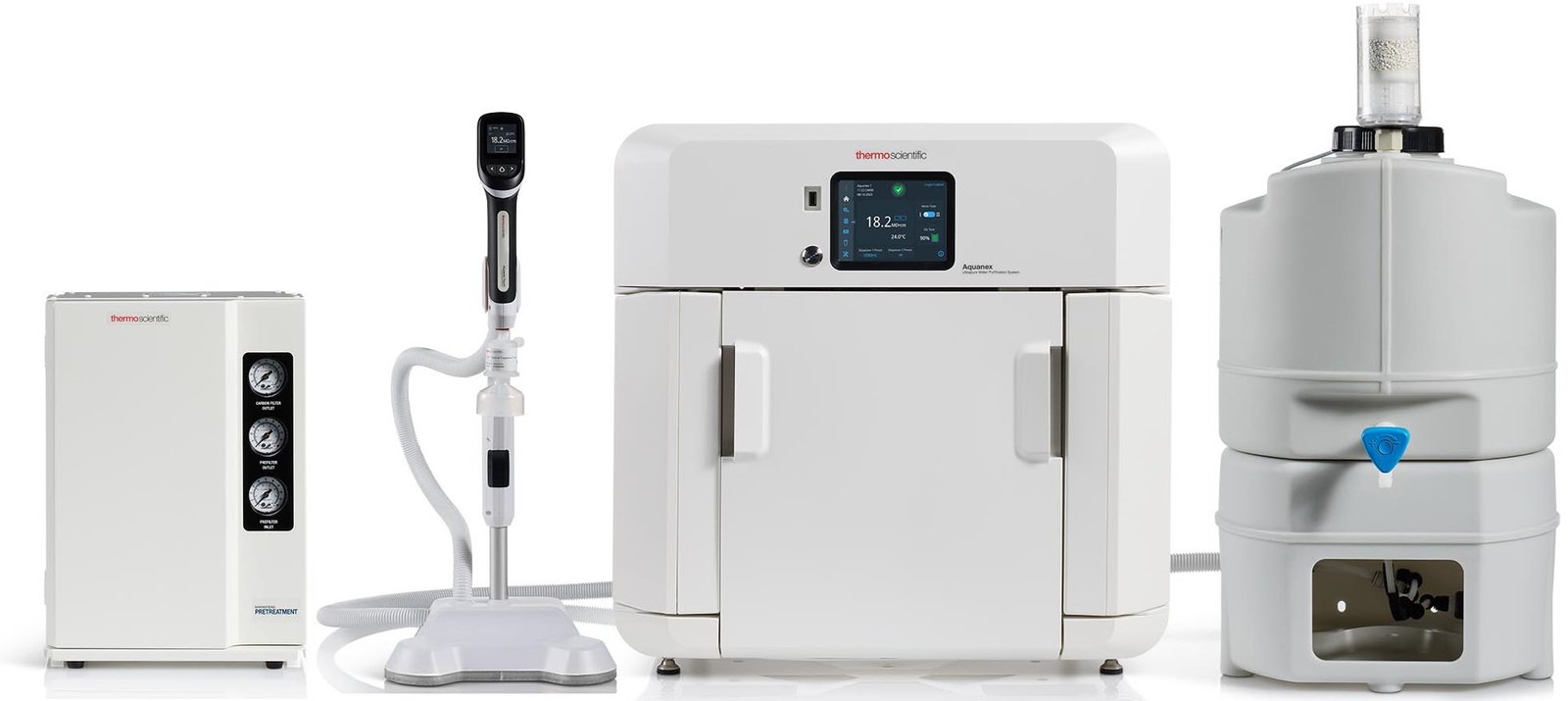

Thermo Scientific 7201031 – Aquanex 30L Water Purification System with Barnstead Prefiltration System

The Aquanex Ultrapure Water Purification System is comprised of an automated water treatment unit with an intuitive touchscreen interface and an Aquanex Touch Smart Dispenser for Type I water. The system is equipped with either a 10L built-in water storage tank or a 30L external water storage tank, based on ordered components.

The dispenser comes with a built-in UI screen that reflects the main display for ease of use and a benchtop dispenser stand, which can be transformed into a wall mount stand. Making changes to the smart dispenser UI screen automatically updates information on the main screen of the instrument. Users can select between manual and volumetric dispense operation. Users can also add an optional second smart dispenser to take advantage of smart dispensing capability on both sides of the system.

The Aquanex System provides the flexibility of assembly by supporting both a benchtop or wall-mounted configuration. It is designed for easy access to consumables to enable quick replacement and hassle-free maintenance.

The system comes with one set of consumables, consisting of (1) RO assembly, (1) UV lamp, (2) Aquanex DI packs, (1) UF filter, (1) 0.1 μm Point of Use (POU) filter, and (1) CO2 adsorber with filter. The system also comes with all feedwater tubes, waste-water drain tubes, disinfectant bypass adapters, sterile overflow (30L units), and other necessary fittings for initial setup.

In operation, the source tap water is routed through the pretreatment device into the inlet of the Aquanex System’s main unit. From the main unit, the water is routed to Dispenser 1 (D1) or Dispenser 2 (D2) depending on the configuration chosen by the user. A user can also dispense Type II water by adding a hand-held dispenser (sold separately). In the 30L system, users can also access Type II water from the tap on the 30L tank.

The Aquanex System helps in protecting the lab environment from leaks in and around the system with a leak detector installed in the main unit. Additionally, the 30L system has a supplementary external leak detector that can be placed at a desired location near the system.

The Aquanex water purification systems are available in four configurations differing in tank size and pretreatment options. Please see the table below for a comparison.

1. Tank level

2. Dispenser ID

3. Dispense volume setting – touchscreen

4. System health status indicator

5. Type 1 water temperature

6. Dispensing water purity

7. Dispense and flow speed selector buttons

1. System health/status indicator

2. Unit name, time, and date

3. Home screen navigation bar

4. Dispenser volume setting

5. Dispensing water purity

6. Type 1 water temperature

7. Tank level

8. Water type selector

9. Secure mode log in/out

• Use pretreatment when feed water quality doesn’t match the requirements for your system
• Contains a pre-filter, hardness stabilizer, and carbon filter
• Contains a pressure regulator and pressure gauges
• The space-saving design comes with Wall Mount capability

• UV lamp, reverse osmosis assembly, and ultrafilter consumables are easily accessed by removing the magnetic front panel
• No screws or complicated tools are required to change consumables
• The system will notify you when consumables are nearing the end of their life and require replacement
• Consumable installation and replacement dates can be easily viewed in the maintenance menu
• Guide rails, built-in sensors, and a quick-connect system allow for smooth installation of DI cartridges

The diagram below shows the flow of pretreated water through the Aquanex purification system. It is recommended to use external pretreatment, such as the Barnstead Pretreatment System (included with some models or available separately as part number 50157886). Pretreatment is intended to protect the reverse osmosis assembly from particles and hardness and to eliminate chlorine that can be present in tap feedwater.

The perfect fit for your applications. Laboratory scientists count on the consistent performance of Type I water. The intelligent Aquanex system provides reliable performance to meet the purification needs of a range of industries.
