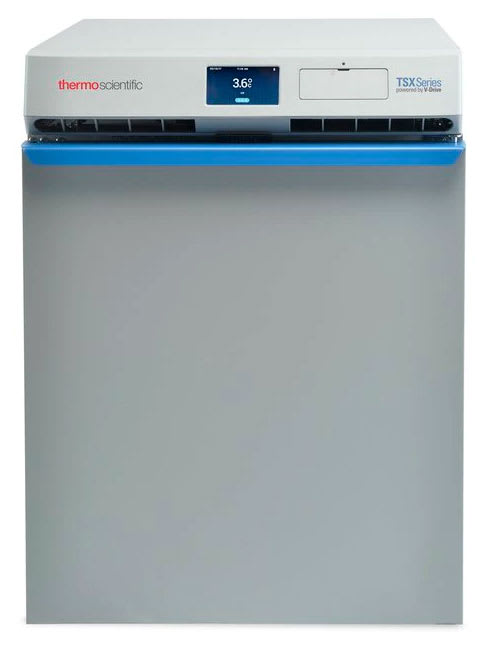

Thermo Scientific TSX505SA – High Performance Undercounter Refrigerator (Solid Door), 5.5 Cubic Foot Capacity, NEMA 5-15P Plug
46 people are viewing this product right now
$7,620.00
Shipping calculated at checkout.
Estimated delivery:5 days
TSX Series powered by V-drive, 5.5cf (156L) under-counter refrigerator with solid door. Standard with (3) shelves, temperature range 2 Degrees C – 8 Degrees C (factory default 5 Degrees C), standard remote alarm contacts, audible and visual alarms, integrated locking mechanism, ergonomic touch screen display, data-logging functionality with USB download port, 100V-240V / 50Hz -60Hz; Nema 5-15 plug
- Undercounter lab-grade refrigerator
- +3°C to +7°C temperature range
- Solid door (not glass)
- 5.5 cubic foot capacity
- 20.5”D x 19.5”W x 23”H interior dimensions
- NEMA 5-15P plug
- Bright, easy-to-adjust interior LED lighting
- Electronic lock is standard
- Datalogging with USB download functionality
- Audible & visual alarms (power fail, high temp, low temp, low battery, memory full, door ajar)
- Convenient, adjustable shelves
Guarantee Safe and Secure Payment Checkout
Description
Thermo Scientific TSX505SA – High Performance Undercounter Refrigerator (Solid Door), 5.5 Cubic Foot Capacity, NEMA 5-15P Plug
- Undercounter lab-grade refrigerator
- +3°C to +7°C temperature range
- Solid door (not glass)
- 5.5 cubic foot capacity
- 20.5”D x 19.5”W x 23”H interior dimensions
- NEMA 5-15P plug
Designed for your environment, new Thermo Scientific TSX Series high-performance undercounter lab refrigerators support sample protection and sustainability objectives for the storage of media, reagents, chemotherapy, pharmaceutical and other research and medical products. Powered by V-drive, the TSX Series delivers low energy, decreased noise levels and improved performance and user experience. These new undercounter refrigerators are quiet and feature an improved user interface, automated locking and increased storage capacity and reliability.
Designed for the following industries
Biological
Diagnostic kits & reagents
Molecular biology
Vaccines & pharmacies
Clinical applications
Industrial testing

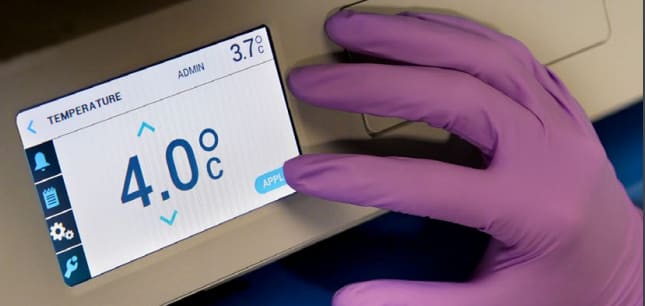

Easy to operate user interface
- Password protected
- Icon based
- Adjustable lighting
- Built-in datalogging
- USB port
- Ergonomic tilted design to help prevent neck strain
- Electronic lock is standard

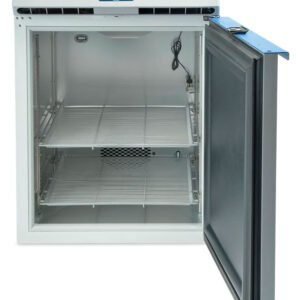

Smart design maximizes storage space
The TSX505 does not include internal protrusions such as overhead fans. This allows you to store more in its interior. Also, with the V-drive and STEM cooling, temperatures are consistent at all shelf levels, making the TSX505 a smart choice for vaccines, reagents, media and other sensitive material.
- 45 boxes per level (9×5 pattern)
- 225 boxes per shelf (5 levels per shelf, 2 shelves per unit)
- 45 boxes (1 additional level above top shelf)
Total number of vaccine boxes: 495 boxes (225 + 225 + 45)**
Several models available
The TSX505 is available with a glass door or solid door. There are also two plug styles available – NEMA 5-15P or NEMA 6-15P.
- TSX505SA
- Solid door
- NEMA 5-15P
- TSX505SD
- Solid door
- NEMA 6-15P
- TSX505GA
- Glass door
- NEMA 5-15P
- TSX505GD
- Glass door
- NEMA 6-15P
Features overview

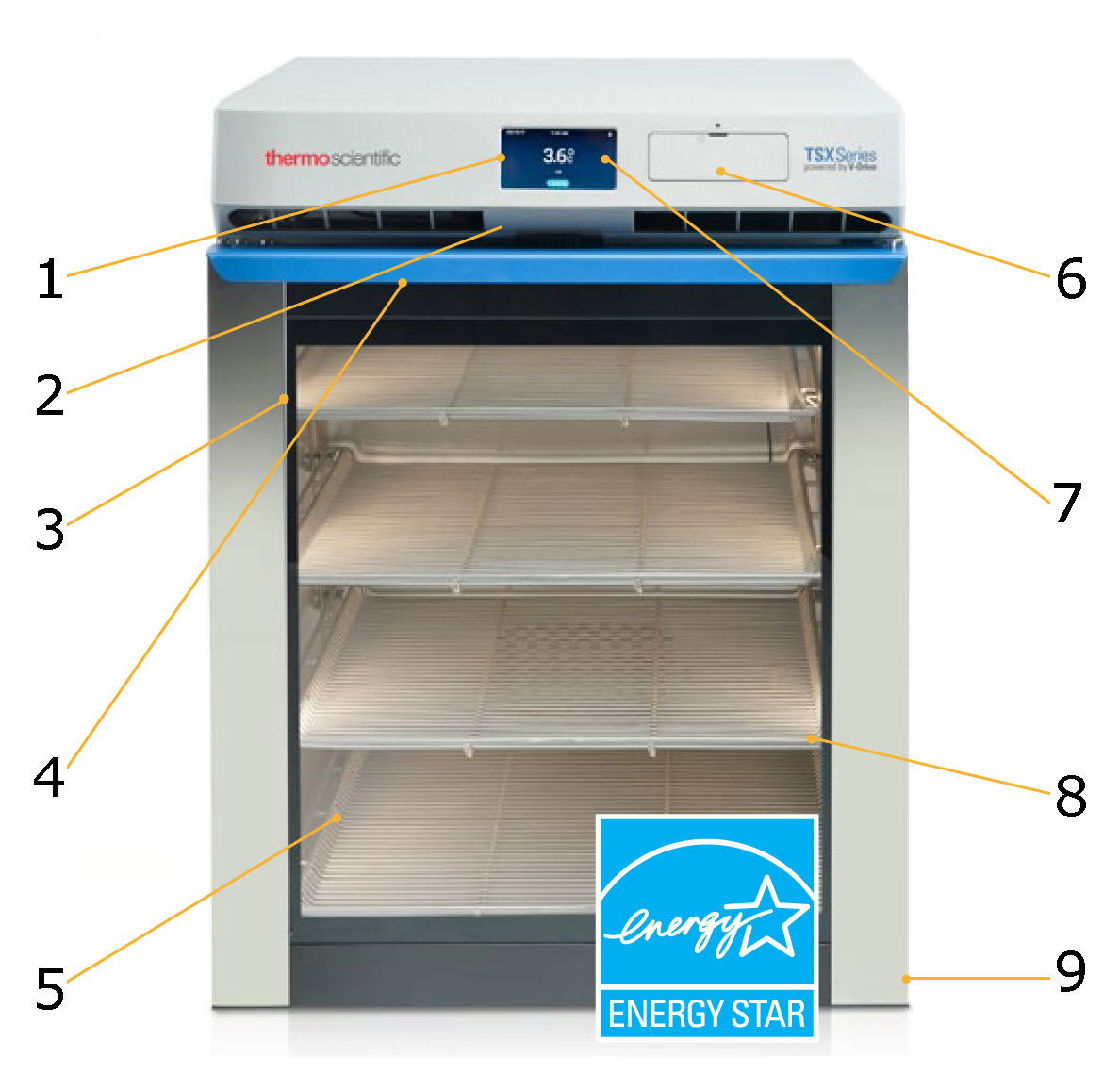

The image below shows an overview of several main features. Please note, the model in the picture is a glass door version. This product is available with a choice of a glass door or solid door.
- Air and glycol temperature display
- Electronic lock
- Bright, easy-to-adjust interior LED lighting
- ADA compliant, ergonomic handle with reversible doors fits any workspace configuration
- Choice of transparent glass or solid door
- Datalogging with USB download functionality
- Audible & visual alarms (power fail, high temp, low temp, low battery, memory full, door ajar)
- Convenient, adjustable shelves (rolling wire baskets available as customer installed accessory)
- 1″ rear access port
Cold Storage | |
|---|---|
| Type (Cold Storage) | Refrigerator, Under/Over Counter |
| Capacity (Incubator/Oven/Chamber) | 156 L (156000 ml) |
| Voltage (Life Science) | 100-240 VAC |
| Max Temp (Incubator/Oven/Chamber) | 7 C (44.6 F) |
| Min Temp (Incubator/Oven/Chamber) | 3 C (37.4 F) |
| Special Cold Storage Functions (incl or optional) | Auto Defrost |
