Time Mark 153 – Reverse Phase Relay, 190-500 VAC, 50 to 60Hz, 2W
46 people are viewing this product right now
Original price was: $113.85.$84.96Current price is: $84.96.
Shipping calculated at checkout.
Estimated delivery:5 days
Reverse Phase Relay, 190-500 VAC, 50 to 60Hz, 2W
- Reverse phase relay
- Nominal voltage: 190-500 VAC
- Frequency: 50 to 60Hz
- Power consumption: 2W
- Automatic reset
- SPDT contacts
- DIN or Surface mounting
- Senses phase reversal on Wye or Delta
- ABS plastic case
- 5-year unconditional warranty
Guarantee Safe and Secure Payment Checkout
Description
Time Mark 153 – Reverse Phase Relay, 190-500 VAC, 50 to 60Hz, 2W
- Reverse phase relay
- Nominal voltage: 190-500 VAC
- Frequency: 50 to 60Hz
- Power consumption: 2W
- Automatic reset
- SPDT contacts
- DIN or Surface mounting

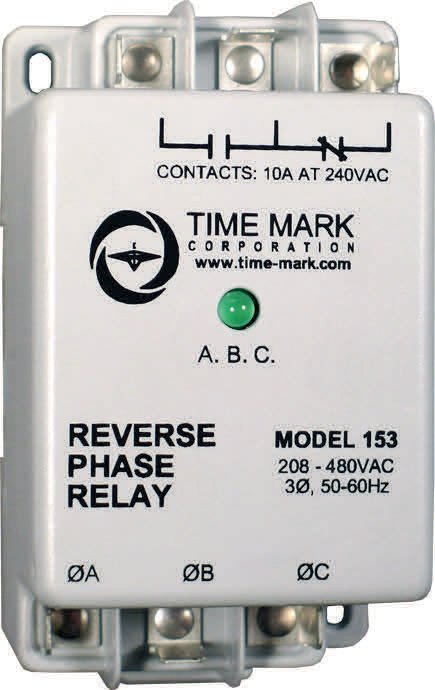

The Time Mark 153 Reverse Phase Relay is designed to continuously monitor the phase rotation of 3-phase lines. This device should be used in applications where proper phase rotation is critical, such as fan motors, compressors, grinders, elevators, etc. The solid-state sensing circuit drives an internal electromechanical relay which energizes when power, with correct phase rotation, is applied. The relay will not energize if the applied phases are reversed. It will de-energize if phase rotation is reversed while the motor is running. An LED indicator will illuminate with the correct ABC phase rotation.
Dimensions:
Typical Application:
Three Phase Monitor Relays | |
|---|---|
| 3-Phase Monitor Relay Function | Phase Reversal Only |
| Max Nominal Phase to Phase Voltage (monitors) | 500 VAC |
| Monitor Relay Contact Type | SPDT |
| Time Mark Mounting | DIN, Surface Mount |
Product General Attributes | |
| Warranty | 5 YEARS |
| Warranty Details | This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. |
| Product Weight | 0.25 LBS |
| Product Height | 3.71 IN |
| Product Length | 2.19 IN |
| Product Width | 2.31 IN |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 2.19 × 2.31 × 3.71 in |
