Time Mark 16-1-H-S – Over/Under Voltage Monitor
34 people are viewing this product right now
Original price was: $182.60.$136.26Current price is: $136.26.
Shipping calculated at checkout.
Estimated delivery:5 days
16-1-H-S O/U VOLTAGE DR
- Input voltage: 30-277 VAC/VDC
- Enclosure: Surface/DIN Rail Mount with 5 spade connections
- One (1) SPDT Relay
- Frequency: DC, 50/60Hz
- Adjustable Trip & Restart, can be disabled
- 5 LEDs: Trip, Normal & Delay status
Guarantee Safe and Secure Payment Checkout
Description
Time Mark 16-1-H-S – Over/Under Voltage Monitor
- Input voltage: 30-277 VAC/VDC
- Enclosure: Surface/DIN Rail Mount with 5 spade connections
- One (1) SPDT Relay
- 5 LEDs: Trip, Normal & Delay status
The Time Mark16-1-H-S protects equipment from Over, Under, Over/Under voltage, or rapid cycling conditions that can damage valuable equipment. Trip and restart delays are adjustable or can be disabled. The input voltage range is 30-277 VAC/VDC.
A proprietary microcontroller-based sensing circuit de-energizes the relay(s) after the trip delay (if enabled) upon the detection of harmful voltage conditions. The relay(s) will energize after power line conditions return to an acceptable level and the restart delay time has expired (if enabled). Trip delays can be added to avoid nuisance tripping while restart delays can be used to stagger the startup of equipment or protect compressors. Time Mark’s proprietary microcontroller-based design offers maximum flexibility with an easy to use interface.
Voltage Frequency Monitor Relays | |
|---|---|
| Voltage Frequency Monitors Function | Over or Under |
| Monitor Relay Contact Type | SPDT |
| Time Mark Mounting | Surface Mount or DIN |
| Nominal Voltage (monitor relays) | 30-277 VAC/VDC |
Product General Attributes | |
| Warranty | 5 YEARS |
| Warranty Details | This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. |
| Product Weight | 0.25 LBS |
| Product Height | 3.52 IN |
| Product Length | 2.19 IN |
| Product Width | 2.44 IN |
| Country of Origin | United States |
| Shipping Height | 3.46 IN |
| Shipping Length | 2.19 IN |
| Shipping Width | 2.31 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 0.25 lbs |
|---|---|

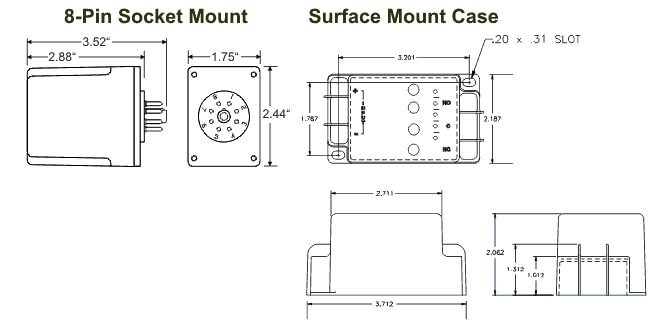

| Dimensions | 2.19 × 2.44 × 3.52 in |
