Time Mark 173-5 Over/Under Current Monitor, 120/240VAC
42 people are viewing this product right now
Original price was: $231.00.$172.39Current price is: $172.39.
Shipping calculated at checkout.
Estimated delivery:5 days
Over/Under Current Monitor, ,120/240VAC,SPDT, 1-5A
- 120/240VAC,SPDT, 1-5A
- No CT Required for Currents Up To 25 Amps
- Quick Connect Terminals
- Detects Over or Under Current
- Surface or DIN Rail Mounting
Guarantee Safe and Secure Payment Checkout
Description

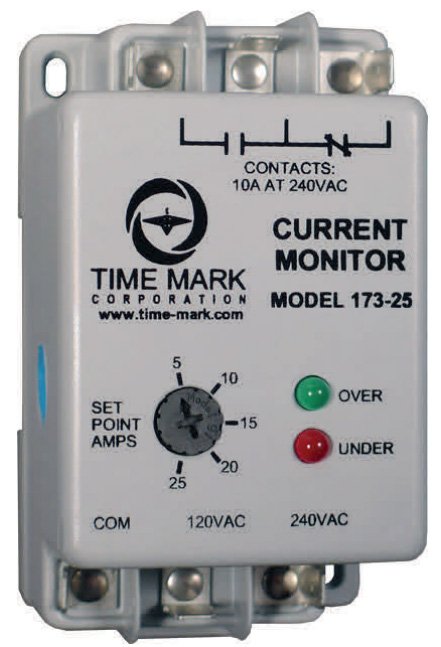

Time Mark 173 AC Current Monitor
 |
|
The Model 173 AC Current Monitor is a single setpoint AC current monitor. It can be used to detect either over current or under current, depending on whether the set point is set above or below the input current. The OVER L E D illuminates and the relay energizes when the current exceeds the set point. The UNDER L E D is lit and the relay is de-energized when the current is less than the set point.
Two versions, either of which can be connected to 120 or 240VAC, are available. One for current ranges up to 5 amps, the other for applications from 5 to 25 amps. For currents above 25 amps, matching CT’s are available. The Model 173 is not frequency sensitive and can be used on AC currents from 50 to 400Hz. The compact housing can be surface or DIN rail mounted with 1/4″ quick connect terminals provided for input and output connections.
| Typical Application | Dimensions |
 |  |
Current Monitor Relays | |
|---|---|
| Max Current AC | 25 A |
| Nominal Voltage (monitor relays) | 120 VAC, 240 VAC |
| Time Mark Mounting | Surface Mount or DIN |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | This product is warranted to be free from defects in materials and workmanship for one year. Should this device fail to operate, we will repair it for one year from the date of manufacture. |
| Product Weight | 0.29 LBS |
| Product Height | 3.71 IN |
| Product Length | 2.19 IN |
| Product Width | 2.31 IN |
| Country of Origin | United States |
| Shipping Height | 3.71 IN |
| UPC | 662917003699 |
| Shipping Length | 2.19 IN |
| Shipping Width | 2.31 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 0.29 lbs |
|---|---|
| Dimensions | 2.19 × 2.31 × 3.71 in |
