Time Mark 1732 Over/Under Current Monitor, 240VAC
9 people are viewing this product right now
Original price was: $357.50.$266.79Current price is: $266.79.
Shipping calculated at checkout.
Estimated delivery:5 days
Over/Under Current Monitor, 240VAC,SPDT, 25-150A
- 240VAC,SPDT, 25-150A
- Detects Over or Under Current
- Adjustable Setpoint
- No External Power Supply
- Dual LED Condition Indicators
Guarantee Safe and Secure Payment Checkout
Description

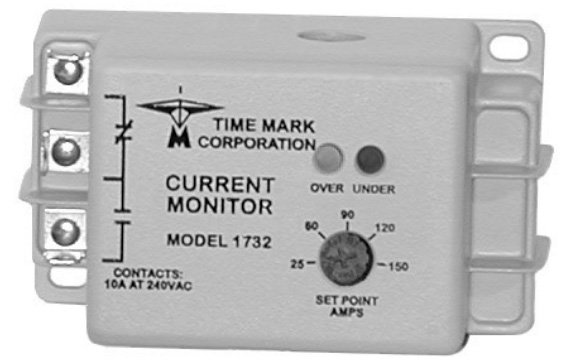

Time Mark 1732 AC Current Monitor
 |
|
The Model 1732 AC Current Monitor is a single setpoint current monitor. It can be used to detect either over current or under current, depending on whether the trip point is set above or below the input current. Dual LED indicators on the front or top of the unit give a clear visual reference for a fault condition.
The Model 1732 generates its operating voltage from the monitored current line, so no external power supply is required. A current greater than 25 amps is needed to energize the internal relay. The maximum current set point is 150 amps. The Model 1732 is not frequency sensitive, and can be used on AC currents from 50 to 400Hz.
| Typical Application | Dimensions |
 |  |
Current Monitor Relays | |
|---|---|
| Max Current AC | 25 A |
| Nominal Voltage (monitor relays) | 240 VAC |
| Time Mark Mounting | Surface Mount |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | This product is warranted to be free from defects in materials and workmanship for one year. Should this device fail to operate, we will repair it for one year from the date of manufacture. |
| Product Weight | 0.32 LBS |
| Product Height | 3.71 IN |
| Product Length | 2.19 IN |
| Product Width | 2.31 IN |
| HTS/Schedule B Number | 8542.39.0001 |
| ECCN Number | EAR99 |
| Country of Origin | United States |
| Shipping Height | 3.71 IN |
| UPC | 662917003927 |
| Shipping Length | 2.19 IN |
| Shipping Width | 2.31 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 0.32 lbs |
|---|---|
| Dimensions | 2.19 × 2.31 × 3.71 in |
