Time Mark 208A-480V – Line Voltage & Phase Sequence Detector, 50/60Hz
15 people are viewing this product right now
Original price was: $148.50.$110.82Current price is: $110.82.
Shipping calculated at checkout.
Estimated delivery:5 days
Line Voltage and Phase Sequence Detector
- Frequency: 50/60Hz
- Indicates Normal Condition
- Shows Missing Phase
- Indicates Phase Sequence ABC or CBA
- ABS plastic enclosure
Guarantee Safe and Secure Payment Checkout
Description
Time Mark 208A-480V – Line Voltage & Phase Sequence Detector, 50/60Hz
- Frequency: 50/60Hz
- Indicates Normal Condition
- Shows Missing Phase
- Indicates Phase Sequence ABC or CBA
- ABS plastic enclosure
The Time Mark 208A & 208D Line Voltage & Phase Sequence Detectors allows quick and easy determination of phase sequence (either ABC or CBA). Available in 50/60 Hz and 400 Hz versions, this unit can also show that all phases are present, or if one or more phases are lost, it indicates which of the phases are missing. To use, connect the Detector to any 3-phase circuit, Wye or Delta. In proper phase sequence, and with all phases present, the ABC lamp, and the three line voltage lamps will illuminate. An open phase condition will illuminate both rotation lamps and only two line voltage lamps.

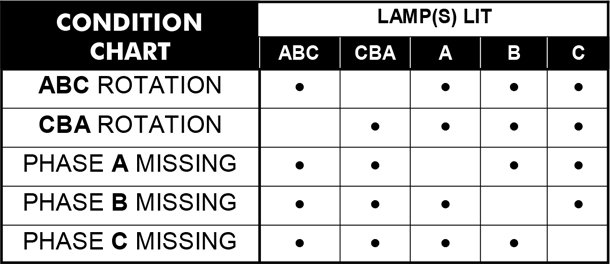

Condition Chart:
Phase / Motor / Transformer Testing/Phase and Rotation Meters Template | |
|---|---|
| Maximum Frequency Range | 60 Hz (0.00006 MHz) Maximum Frequency Range 50/60Hz |
| Phases | Three phase |
| Rotation Direction | Yes |
| Measure Voltage | Yes |
| Type (Phasing Sequence) | Portable |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | Time Mark Corporation offers a 5-year unconditional warranty on all of our 3-Phase Monitors and socket mounted products. All other standard products have a 1-year warranty. |
| Product Weight | 0.2 LBS |
| Product Height | 4.55 IN |
| Product Length | 2.0 IN |
| Product Width | 2.94 IN |
| Country of Origin | United States |
| Shipping Height | 4.55 IN |
| UPC | 662917003057 |
| Shipping Length | 2.94 IN |
| Shipping Width | 2.31 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 2 × 2.94 × 4.55 in |
