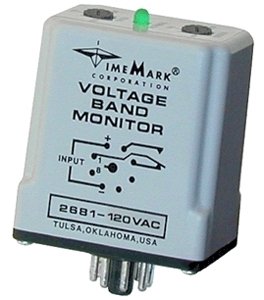

Time Mark 2681-240VAC – Voltage Band Monitor
47 people are viewing this product right now
Original price was: $214.50.$160.07Current price is: $160.07.
Shipping calculated at checkout.
Estimated delivery:3 days
2681-240VAC VOLTAGE BAND MON
- Voltage Range: 200-270VAC
- 8-pin socket
- SPDT Output in Standard Relay Configuration
- Monitors Over and Under Voltage
- Automatic Reset
- ABS plastic case
Guarantee Safe and Secure Payment Checkout
Description
Time Mark 2681-240VAC – Voltage Band Monitor
- Voltage Range: 200-270VAC
- 8-pin socket
- SPDT Output in Standard Relay Configuration
- Monitors Over and Under Voltage
- Automatic Reset
The Time Mark 2681 Voltage Band Monitor is a dual set-point voltage monitor. Input voltages between the upper and lower set-points will cause the output contacts to pull in (contacts 1 & 3 closed) and the LED indicator to illuminate. Input voltages above or below the set-points will cause the output contacts to drop out (contacts 1 & 4 closed) and extinguish the LED indicator.
The Model 2681 is available in AC or DC versions. AC models of the 2681 are not frequency sensitive and can be used on systems from 50 to 400 Hz. The voltage set-points are screwdriver adjustable over a wide operating range.
The SPDT output configuration is identical to the configuration of general purpose relays. This unit requires a standard 8-pin socket for mounting.

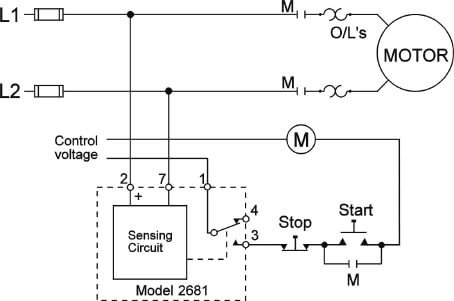

Typical Application:
Voltage Frequency Monitor Relays | |
|---|---|
| Voltage Frequency Monitors Function | Voltage Band Monitor |
| Monitor Relay Contact Type | SPDT |
| Time Mark Mounting | 8-pin |
| Nominal Voltage (monitor relays) | 240 VAC |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | Time Mark Corporation offers a 5-year unconditional warranty on all of our 3-Phase Monitors and socket mounted products. All other standard products have a 1-year warranty. |
| Product Weight | 0.31 LBS |
| Product Height | 2.44 IN |
| Product Length | 1.75 IN |
| Product Width | 3.52 IN |
| Country of Origin | United States |
| Shipping Height | 3.52 IN |
| UPC | 662917007253 |
| Shipping Length | 2.44 IN |
| Shipping Width | 1.75 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 0.31 lbs |
|---|---|
| Dimensions | 1.75 × 3.52 × 2.44 in |
