Time Mark 273-5-120 Single Phase Current Monitor,120VAC
17 people are viewing this product right now
Original price was: $151.80.$113.28Current price is: $113.28.
Shipping calculated at checkout.
Estimated delivery:3 days
Single Phase Over/Under Current Monitor,120VAC 50-400 Hz, 0.5-5A, SPDT, UL/CSA
- 120VAC 50-400 Hz, 0.5-5A, SPDT, UL/CSA
- Adjustable trip point
- Over or under current sensing
- 5 or 10 amp adjust range options
- Five year unconditional warranty
Guarantee Safe and Secure Payment Checkout
Description

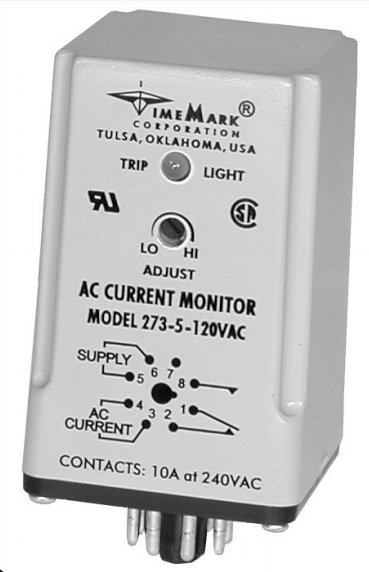

Time Mark 273-5-120 Single Phase Current Monitor
 |
|
The Model 273 Single Phase Current Monitor is a single setpoint sensor. It can be used as either an over current or under current sensor, depending on the contacts used. This device can directly monitor AC currents in the range of 0.5 to 5 amps; or 2 to 10 amps, 50 to 400Hz. Matching transformers are available to extend the use of the monitor to most any range.
The current being monitored can be of any voltage, up to the rating of the socket. An LED indicator is provided to show when the relay is energized. The Model 273 is available for either 24VAC or 120VAC supply voltages. Model 273-5 is UL Recognized and CSA Certified. All versions use a standard 8-pin socket.
| Typical Application | Dimensions |
 |  |
Current Monitor Relays | |
|---|---|
| Max Current AC | 10 A |
| Nominal Voltage (monitor relays) | 120 VAC |
| Time Mark Mounting | 8-pin |
| Electrical Approval (monitor relays) | CSA, UL |
Product General Attributes | |
| Warranty | 5 YEARS |
| Warranty Details | This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. Should this device fail to operate for any reason, we will repair it for five years from the date of manufacture. |
| Safety Approval | CSA, UL |
| Product Weight | 0.5 LBS |
| Product Height | 3.25 IN |
| Product Length | 1.95 IN |
| Product Width | 1.95 IN |
| Country of Origin | United States |
| Shipping Height | 3.25 IN |
| UPC | 662917003743 |
| Shipping Length | 1.95 IN |
| Shipping Width | 1.95 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 1.95 × 1.95 × 3.25 in |
