Time Mark 2742-115 – 3-Phase Over/Under Current Monitor
21 people are viewing this product right now
Original price was: $469.70.$350.52Current price is: $350.52.
Shipping calculated at checkout.
Estimated delivery:3 days
2742-115VAC 3PH O/U CUR MON
- Supply voltage: 100-130VAC
- Max supply voltage: 140V
- Monitors over or under current
- Fail-safe design
- Automatic or manual reset
- Adjustable trip delay timer
- For use on motors, pumps, conveyors, etc.
- Engineered and Built in the U.S.A.
Guarantee Safe and Secure Payment Checkout
Description

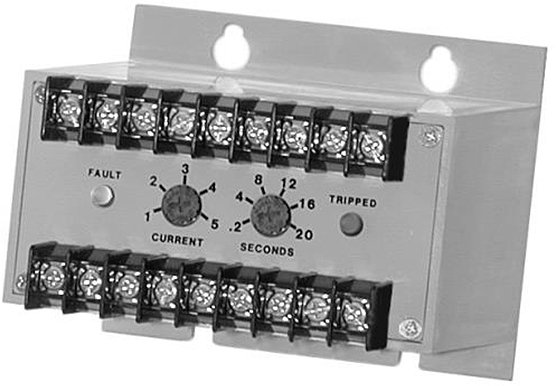

Time Mark 2742-115 – 3-Phase Over/Under Current Monitor
- Supply voltage: 100-130VAC
- Max supply voltage: 140V
- Monitors over or under current
- Fail-safe design
- Adjustable trip delay timer
The Time Mark 2742-115 3-Phase Over/Under Current Monitor is designed to monitor the current level of a 3-phase line or to compare the currents of three single-phase lines. This model has a supply voltage of 100-130VAC; 140V max.
The Model 2742 is factory-set as an over-current monitor; that is, if one or more current inputs rises above the trip level, the internal relay will de-energize. Adding a wire between the UNDER CURRENT terminals on the case will cause the Model 2742 to sense a decrease of one or more current inputs.
An adjustable trip delay of 0.2 to 20 seconds will prevent nuisance tripping. The current trip point is adjustable from 1 to 5 amps, and matching current transformers are available to extend the current range of the monitor.
The Model 2742 will automatically reset when the current fault is corrected. An external manual reset can be added by installing a normally closed switch between the terminals marked RESET.
Current Monitor Relays | |
|---|---|
| Max Current AC | 40 A |
| Nominal Voltage (monitor relays) | 120 VAC/VDC |
| Time Mark Mounting | Surface Mount |
Product General Attributes | |
| Warranty | 5 YEARS |
| Warranty Details | Time Mark Corporation offers a 5-year unconditional warranty on all of our 3-Phase Monitors and socket mounted products. All other standard products have a 1-year warranty. |
| Product Weight | 1 LBS |
| Product Height | 3.5 IN |
| Product Length | 4.8 IN |
| Product Width | 4.5 IN |
| HTS/Schedule B Number | 8542.90.0000 |
| ECCN Number | EAR99 |
| Country of Origin | United States |
| Shipping Height | 4.50 IN |
| UPC | 662917004009 |
| Shipping Length | 3.50 IN |
| Shipping Width | 4.80 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 1 lbs |
|---|---|
| Dimensions | 4.8 × 4.5 × 3.5 in |
