Time Mark 30 High Voltage Multi-Function Timer, 50/60 Hz
21 people are viewing this product right now
Original price was: $264.00.$197.01Current price is: $197.01.
Shipping calculated at checkout.
Estimated delivery:4 days
High Voltage Multi-Function Timer, 50/60 Hz, DPDT, 4 ranges (0.1 Sec – 1023 Hr)
- 50/60 Hz, DPDT, 4 ranges (0.1 Sec – 1023 Hr)
- 600VAC Contacts
- 240/480VAC Operating Voltage
- 4 Timing Functions
- 4 Timing Ranges
Guarantee Safe and Secure Payment Checkout
Description

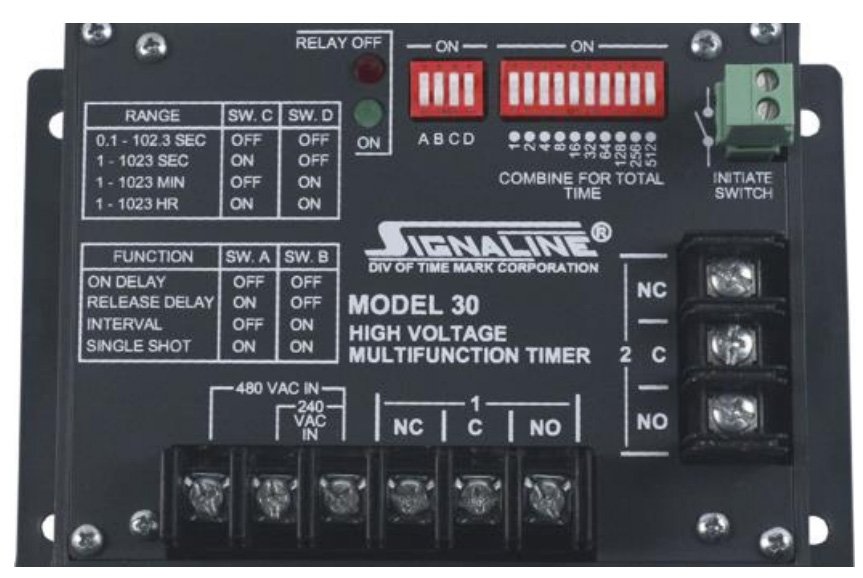

Time Mark 30 High Voltage Multi-function Timer
 |
|
| The Model 30 is a High Voltage Multifunction Timer. The digital design of the Model 30 provides high accuracy, repeatability and response time. The output of the Model 30 is a heavy-duty DPDT electro-mechanical output relay. Four DIP switches select one of four timing functions and one of four timing ranges. Delay time is set with a 10-position DIP switch. When timing either the red LED will blink indicating the relay is de-energized or the green LED will blink indicating the relay is energized. On completion of the delay period either the red LED lights indicating the relay is de-energized or the green LED lights indicating the relay is energized. | Dimension  |
Time Delay Relays | |
|---|---|
| Timer Function (timers) | Multifunction Timer |
| Nominal Voltage (monitor relays) | 240/480 VAC |
| Time Mark Mounting | Surface Mount |
Product General Attributes | |
| Warranty | 5 YEARS |
| Warranty Details | This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. Should this device fail to operate for any reason, we will repair it for five years from the date of manufacture. |
| Product Weight | 1.2 LBS |
| Product Height | 6.06 IN |
| Product Length | 3.88 IN |
| Product Width | 3.01 IN |
| Country of Origin | United States |
| Shipping Height | 6.06 IN |
| UPC | 662917004733 |
| Shipping Length | 3.88 IN |
| Shipping Width | 3.01 IN |
| Other Information | Repeatability: ± 0.1% |
You must be logged in to post a review.
Manuals/Guides
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 3.88 × 3.01 × 6.06 in |
