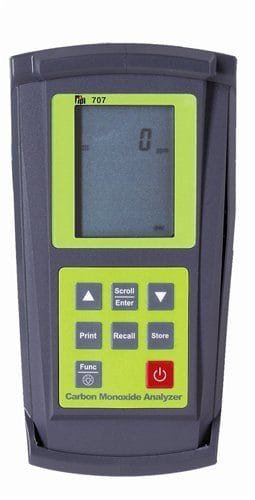

TPI 707 – Carbon Monoxide Analyzer

Test flue gasses at home or office spaces for the presence and location of CO leaks. With a protective rubber boot, the new 707 fits comfortably in your hand and operates with the push of a button.

The TPI 707 Combustion Analyzer uses a state of the art electrochemical sensor. This sensor technology provides the longest lasting, most accurate and reliable means for performing tests. The sensor in your analyzer will need to be replaced periodically and calibration is recommended once every year. The 707 will remind you when calibration is due by flashing “CAL DUE Err” for three seconds at start up if the date of calibration is one year or older.

Electrochemical sensors by nature are always active. Therefore the time the analyzer is off and not being used must be taken into account when determining sensor life. The sensor in your analyzer is warranted for two years. This warranty does not cover a sensor damaged through misuse of the analyzer.

You should keep the batteries of your 707 fresh so power is constantly being supplied to your sensor. The following guidelines will help prevent damage to your sensor: Always use the mini pump filter when performing tests. Always periodically check and replace the mini pump filter as needed. Always make sure the in-line filter / water trap is installed properly. Always periodically check and replace the in-line filter as needed. Always remove water or condensation from the inside of the in-line filter / water trap assembly prior to performing tests. Always use the optional oil filter (p/n A773) when performing tests on oil burning equipment.

Never over saturate your sensors by performing tests on equipment with gas levels beyond the capability of you analyzer. Always keep the A794 water trap / filter assembly clean and replace the filter as necessary. Replacement filter part number is A794F. This manual will guide you through the functions of the TPI 707 which will give you many years of reliable service.

The following guidelines will help prevent damage to your sensor:

• Always use the mini pump filter when performing tests.
• Always periodically check and replace the mini pump filter as needed.
• Always make sure the in-line filter / water trap is installed properly.
• Always periodically check and replace the in-line filter as needed.
• Always remove water or condensation from the inside of the in-line filter / water trap assembly prior to performing tests.
• Always use the optional oil filter (p/n A773) when performing tests on oil burning equipment.
• Never over saturate your sensors by performing tests on equipment with gas levels beyond the capability of you analyzer.
• Always keep the A794 water trap / filter assembly clean and replace the filter as necessary. Replacement filter part number is A794F.
