TPI SP323 – Smart Temperature Clamp Probe

• Temperature range: -40 to +185 F (-40 to +85 C)
• Pipe range: ¼ inch to 1 ½ inch (6mm to 38mm)
• Resolution: 0.1 deg F / 0.1 deg C
• Wireless smart device connectivity
• Remote Data Logging with Multiple instruments at the same time

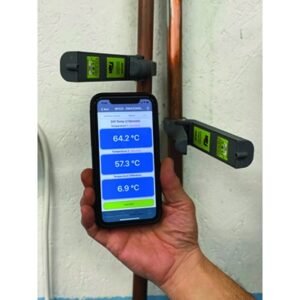

The TPI SP323 Smart Temperature Clamp Probe is used to measure temperature on refrigeration systems. It connects to a smart device using the TPI View App. The clamp probe sends live measurement data to the smart device via the app, and can be used in conjunction with an additional SP323 to measure differential temperature or the SP670 Smart Pressure Probe to calculate Superheat and Subcooling with the App. The TPI View App displays real-time readings in numeric and graphical format. The Job Management function allows you to create multiple JOBS and attach multiple REPORTS to each Job or give each report a different reference/name and save to an existing JOB. The SP323 is also capable of logging temperature measurements over time to help identify intermittent problems.
