TPI SPCHDLX – Deluxe Charging Kit (2x SP323 Smart Temperature Clamp Probe, 2x SP670 Smart High Pressure Probe, and 2x SP597 Smart Hygrometer Probe)

• SP323: Temperature range: -40 to +185 F (-40 to +85 C)
• SP323: Pipe range: ¼ inch to 1 ½ inch (6mm to 38mm)
• SP670: Pressure Range: -14.7 psi to 870 psi (-1 bar to 60 bar)
• SP670: Connection Type: 7/16″-20 UNF / ¼” SAE angled for connections in tight spaces
• SP597: Humidity Range: 0 to 100% RH

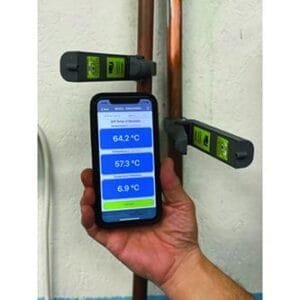

TPI SPCHDLX Charging Kit consists of two SP323 Smart Temperature Clamp Probes, two SP670 Smart High-Pressure Probes, and two SP597 Smart Hygrometer Probes. The SP323 Smart Temperature Clamp Probes and the SP670 Smart Pressure Probes are used to measure temperature and pressure on refrigeration systems, while the SP597 Smart Hygrometer Probe measures humidity and temperature in heating and cooling systems as well as ambient air and in ducts. The SP670 probe employs an angled ¼” fitting to allow access to service ports in close spaces. The Schrader Valve Depressor on the SP670 is adjustable for use with worn valves in test ports, and it can be serviced as well to extend the life of the probe. These probes can connect to a smart device and send live measurement data to the device via the TPI View app. The SP323’s can be used in conjunction to measure differential temperature or with the SP670 Smart Pressure Probe to calculate Superheat and Subcooling with the App. The TPI View App displays real-time readings in numeric and graphical format. The Job Management function allows you to create multiple JOBS and attach multiple REPORTS to each Job or give each report a different reference/name and save to an existing JOB.
