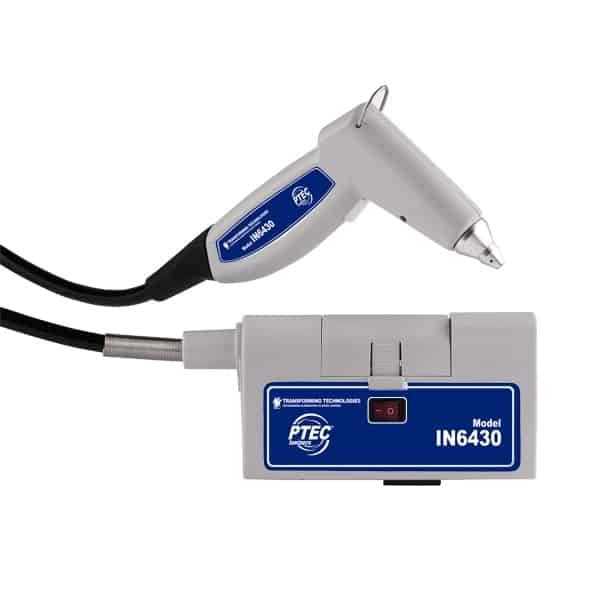

Transforming Technologies IN6430 – Ptec Ionizing Blow Off Gun

• Point-and-shoot precision ionization
• Inherently stable Ptec technology
• Dense output of high-frequency AC (68KHz) ion emission
• Ergonomic handle design

Transforming Technologies IN6430 ionizing air gun is a superior static eliminating device that integrates best-in-class AC performance and ergonomic design features into a superior and affordable package. The IN6430 works twofold: as a forceful blow-off gun that easily removes particulates from surfaces and as a neutralizer to remove the charges responsible for the attraction of contaminants to product surfaces.

Typical AC ionizing guns require stiff and bulky high voltage (HV) cables to connect the gun to the power supply. The IN6430 integrates the air and HV cables into one, durable, easy-to-flex cable.

FL0030 Hollow Fiber Micro Filter

The FL0030 micro filter features a hollow fiber membrane that provides excellent filtration and has a long service life. The compact design is easy to install and comes with quick-release connections for fast replacement. All materials used are compatible with the most stringent applications. Learn more about the FL0030 here.

Output Nozzle Tips

Change the airflow from the IN6430 gun to handle unique and difficult point-of-use ionization applications with interchangeable nozzle tips. Wide angle, long-range, bendable, Luer lock, or manifold tips may be substituted depending on the application.

Verification and Calibration

The IN6430 ionizer comes factory calibrated and with a calibration certificate. Ionizer performance can be tested and verified with a charge plate monitor. Important tests to perform are positive and negative decay times and ion balance. It is recommended to test ionizer performance at least once per year.

The IN6430 is designed to neutralize electrostatic charges in personal benchtop environments, sensitive materials assembly, SMT, electronics assembly, automotive packaging, clean room, and laboratory environments. The IN6430 can also remove static in painting applications, and in other applications where static is an issue.

The IN6430 is rated to reduce 1000 volts to 100 volts in 2 seconds at a distance of 12 inches from the charged surface. The closer to the charged surface, and the higher the PSI, the faster the decay times. Different configurations of air pressure and distance can create the best static eliminating performance for your application.

The IN6430 uses Ptec, a specialized piezoceramic technology, to create a high-frequency AC ionizing output with exceptional balance and decay performance. Transforming Technologies eliminates high-voltage cables by locating the power supply in the ionizing gun handle. Transforming Technologies OSHA compliant emitter nozzle protects both the operator and the ionizer. Emitter contamination and wear are virtually non-existent with AC ionizing guns.
