TREND Networks R151006 – NaviTEK NT Pro with Touchscreen (Formerly IDEAL Networks)

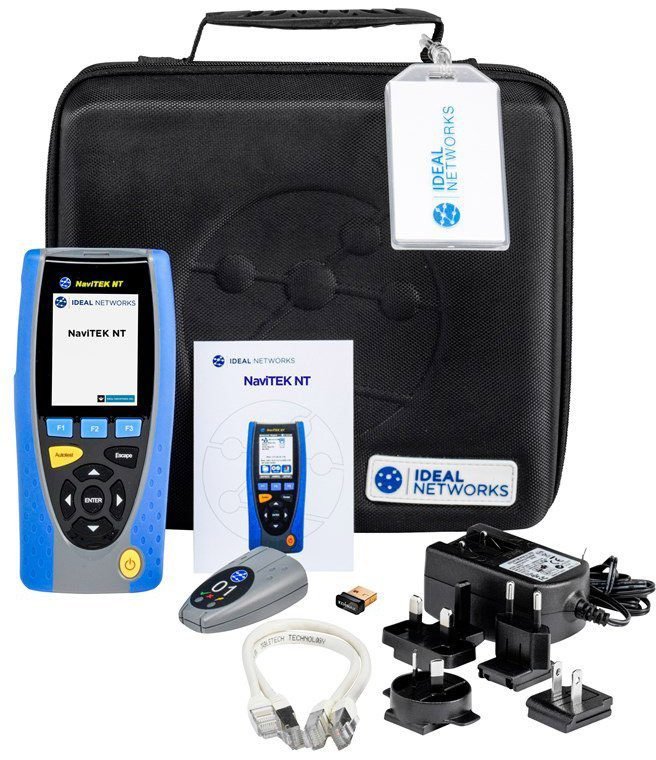

TREND Networks R151006 NaviTEK NT Pro with Touchscreen

The new NaviTEK NT is a network tester for troubleshooting and maintenance of active and passive copper and fiber networks. Incorporating an improved graphical interface NaviTEK NT allows network technicians to pinpoint and solve network connectivity issues faster than ever before. Subsequently, tests can be saved as pdf reports and shared with colleagues and clients using the free IDEAL AnyWare app.

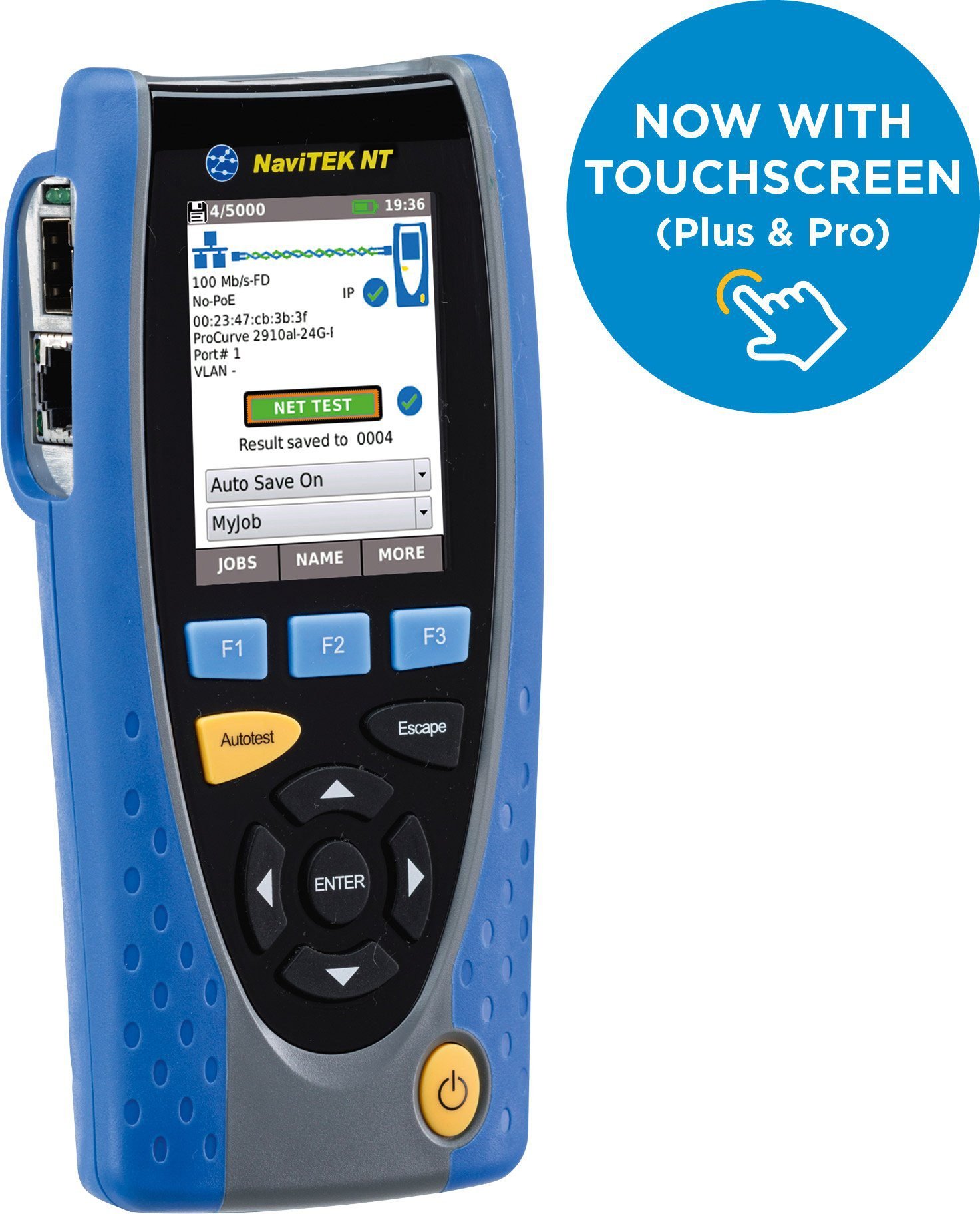

• Now includes a touchscreen
• Network troubleshooter (copper/fiber)
• PoE, service detection and port information
• Real time display of network traffic
• Test storage and PDF reporting
• Cable tracing/distance to fault (TDR)
• Supports IDEAL AnyWARE App

Addressing the needs of today’s network technicians

Today, network technicians have a broad selection of software troubleshooting tools at their disposal and whilst useful in certain situations and environments they do have limitations. NaviTEK NT on the other hand offers a comprehensive suite of test and troubleshooting functionality only found on dedicated hand-held testers:

• Copper and fiber test interfaces
• Fast detection of link and IP information including duplex, speed, port ID, VLAN, DNS, DHCP, Gateway status and IP address
• Detects services such as ISDN, POTS and PoE
• Accurate wire mapping including length measurement and distance to fault
• Rugged, compact design permits use in confined spaces
• Not susceptible to virus and malware attack

Port and network summary info	VLAN detection  and operation	Ethernet utilization
Press the Autotest button to display summary information and allow for detailed inspection of network parameters.	Automatic detection of VLAN ID’s allows the user to configure NaviTEK NT for operation on a VLAN.	Real time display of broadcast network traffic shown as a percentage of port speed for the previous 60 minutes.
CDP/LLDP/EDP port information	Netscan	Network Probe
Show port information using Cisco Discovery Protocol (CDP), Link Layer Discovery Protocol (LLDP) and Extreme Discovery Protocol (EDP).	Display list of IP and MAC addresses of every device connected to the network.	View network illustration to verify test results of each network component.

NaviTEK NT

Performs tests for copper cabling and networks, including:

• Display network configuration – IPv4 / IPv6 compatible
• Advanced wiremap for miswires, split pairs, opens and shorts
• Distance to opens and shorts (TDR)
• PoE/PoE+ detection
• Tone generator for cable tracing
• Autotest button performs Ping and Traceroute test (network mode)
• Hub blink for port identification
• DHCP client
• Switch detection – 10/100/1000 Mb/s
• User-exchangeable RJ45 inserts
• Support for up to 12 wiremap remotes
• Backlit color screen

NaviTEK NT Plus

All the features of NaviTEK NT as well as:

• Autotest button performs a suite of network tests: Internet connectivity (Ping, DNS, Gateway, Traceroute) and NetScan
• Network Probe (NET TEST) provides detailed port and network information of each device
• Port identification using EDP/CDP/LLDP protocols
• VLAN detection and support
• Network scan (IP & MAC addresses of devices)
• PoE/PoE+ load test
• Traffic utilization bar graph
• Internal memory for 5000 test reports
• Generate test reports (PDF or CSV)
• Sent test reports from your mobile device using the free IDEAL AnyWARE App

NaviTEK NT Pro

All of the features of NaviTEK NT Plus as well as:

• Fiber optic cable interface
• Logon using the 802.1x protocol
• Optical power level and pass/fail indication with supported SFP
• Loopback mode for transmission testing on both copper and fiber interfaces

Test Reporting

NaviTEK NT automatically generates test reports in PDF or CSV format. The summary page of each report can be customized to include logo, company and operator details. Choose between 3 different reports that can show either passed, failed or all test reports in each report:

• Summary
• Brief
• Full (see example on the right side)
