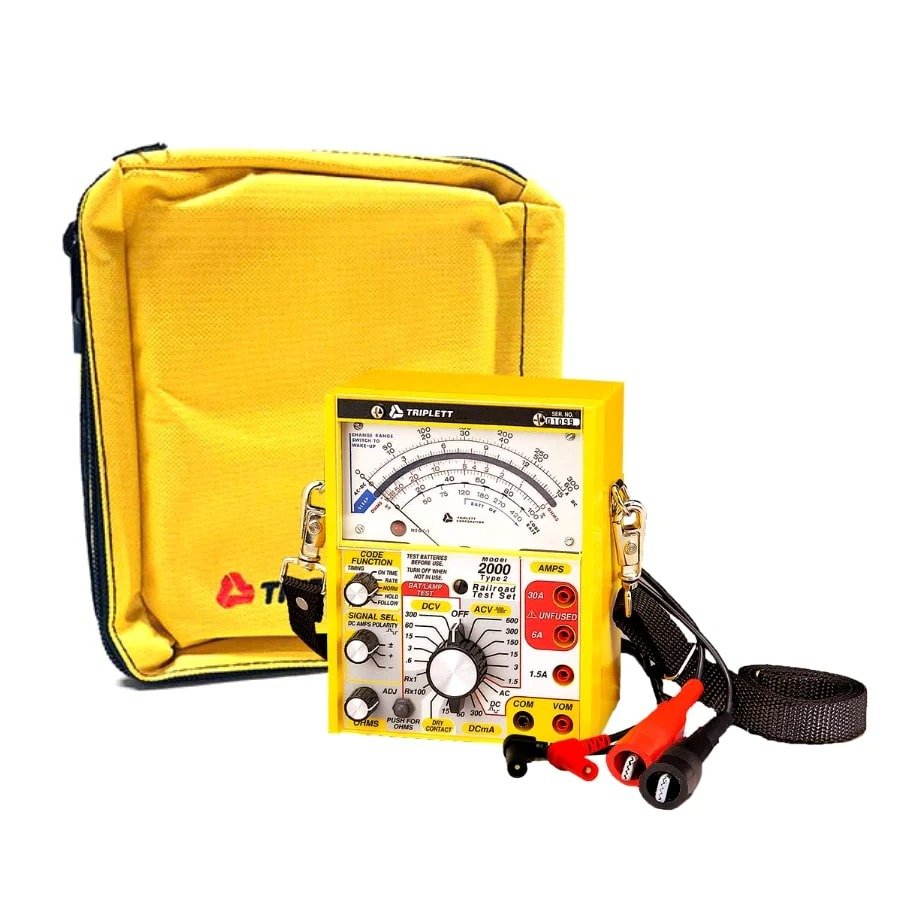

Triplett 2013-NIST – Railroad Tester Kit with Certificate of Traceability to N.I.S.T

• Railroad Tester Kit with Certificate of Traceability to N.I.S.T
• Base unit with no Cab Filters
• Auto Polarity in DC functions
• Both Auto and Selectable DC Amps Polarity
• Direct measurement of Code Parameters

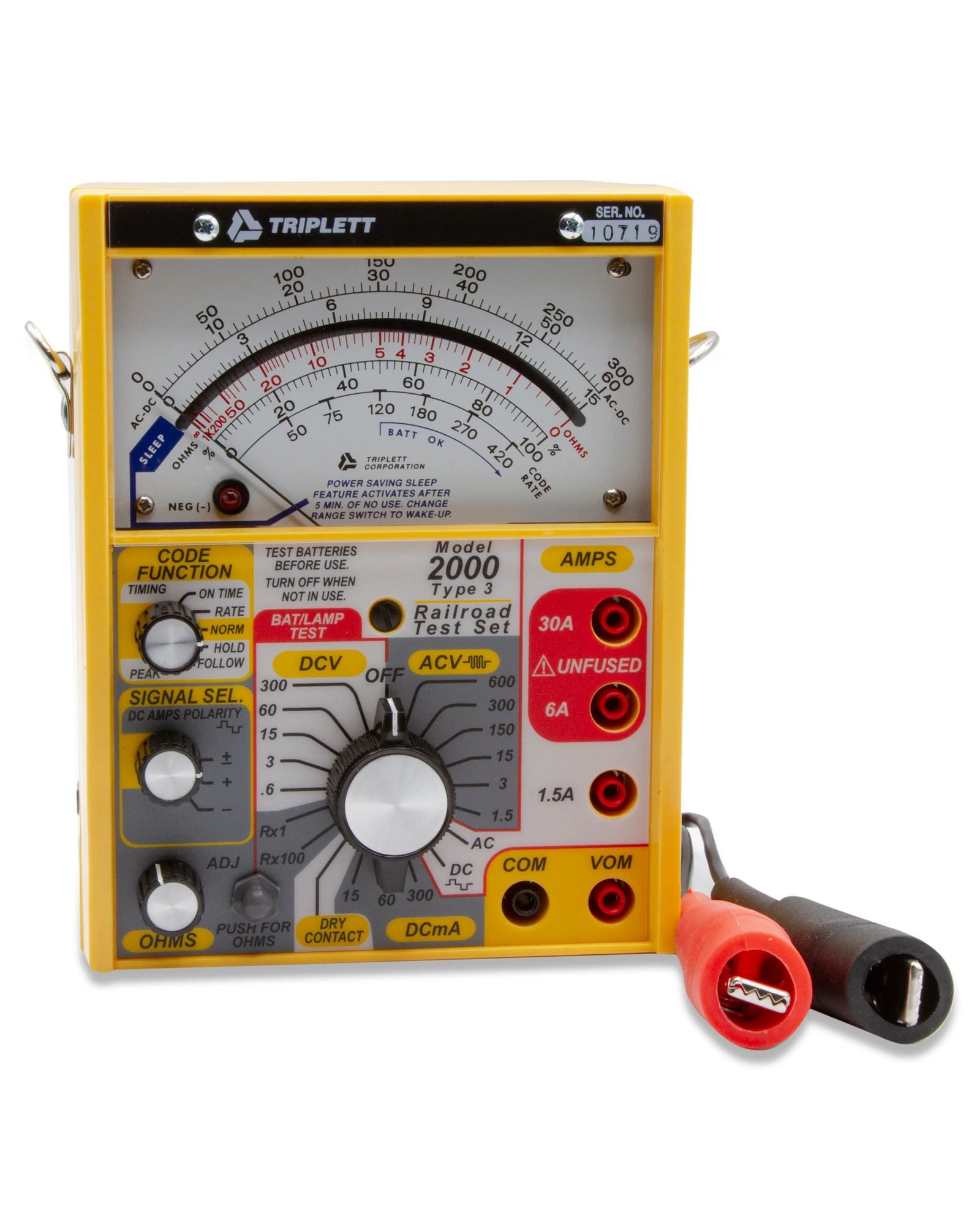

The 2000 Series Railroad Testers are specialized Test Sets designed to perform standard maintenance tests (using Volts, Ohms, and Amps measurements) as well as specialized tasks requiring measurements on railroad coding equipment.

The 2000 Series is compatible with older test technologies, yet is easier to use, and offers test features not found on earlier test sets. Fewer jacks, more ranges, and a logical front panel layout contribute to the 2000 Series’ ease of use. A precision multi-turn Ohms Adjust Control facilitates accurate resistance measurements. Also, the measurement of relay contact On Time has been simplified and expanded requiring no adjustments.

Code Parameter measurements have been made simpler and more accurate. No longer is it necessary to count pointer swing to measure. On Time can be measures on live signals as well as relay contacts. peak levels can be determined quickly and automatically. Adjustments to the code equipment peak level can be made without constantly readjusting the Test Set.

Direct Measurement of Code Parameters

• Direct measures Code Parameters in any AC or DC range. NO adjustments necessary. No counting of pointer wings. Peak
• Follow tracks and holds rising as well as falling levels.
• Peak level
• Rate
• On time
• Accurately measures code parameters to 420 cpn.

Mechanical Features

• Rugged, light weight, weather-resistant case
• Secondary protective window (field replaceable)
• One Year Warranty on construction and calibration

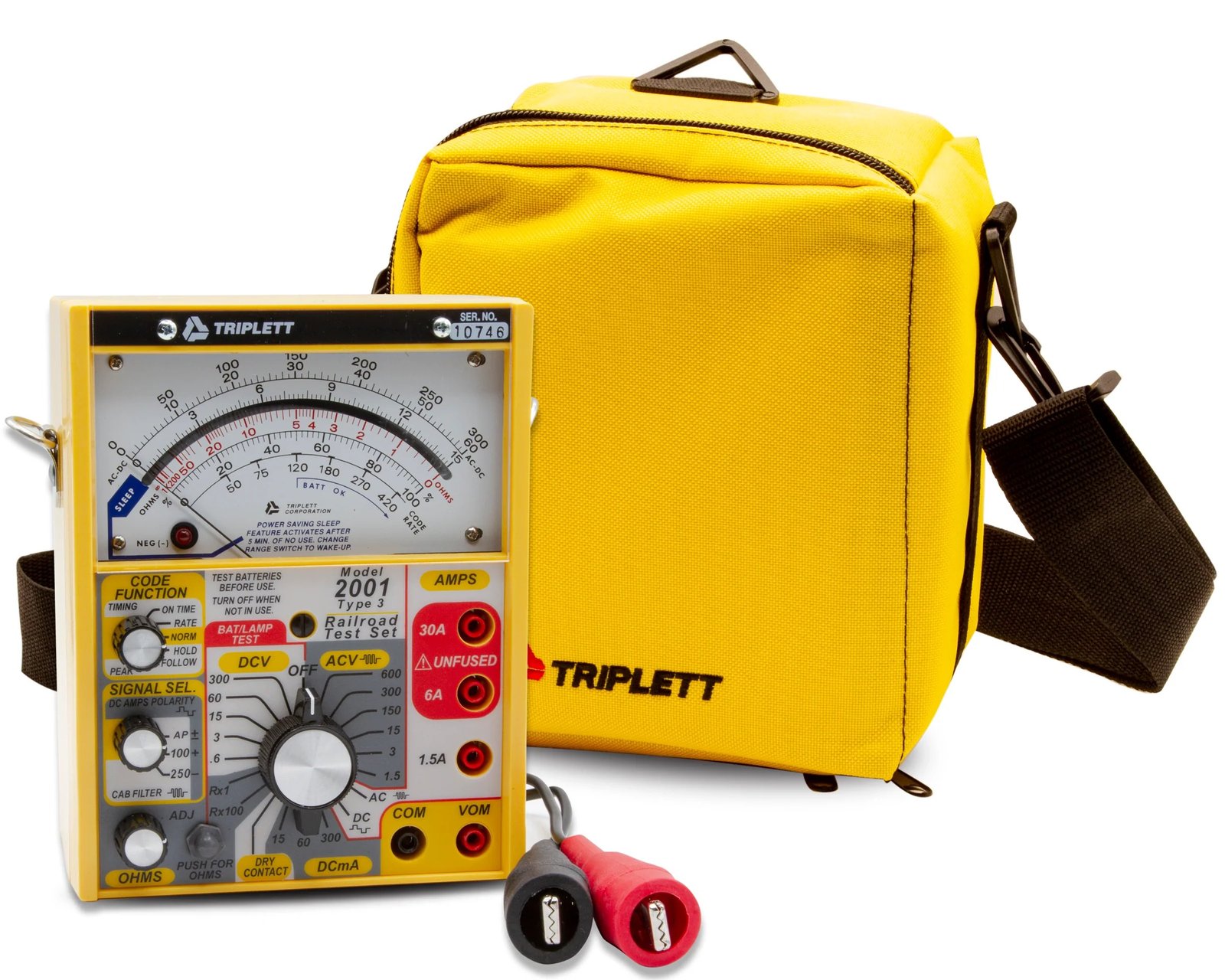

Cab Filter Options (2001, 2002, & 2003)

Allow measurements of all code parameters for selected cab frequencies without shutting down equipment. Active in all AC Volts and AC Amps Ranges.

Safety Features

• Shrouded safety jacks
• Fused on all ranges and functions except 6A and 30A
• Battery/Lamp Test and Battery Monitor prevent false readings from weak batteries
• All Pass mode for standard non-filtered measurements

2010/2011/2012/2013-NIST Comes with Certificate of traceability to NIST standards
