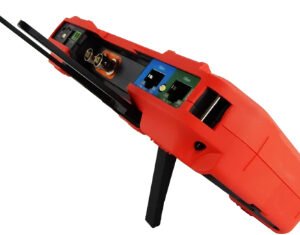

Triplett 8075 – CamView IP Pro-X Camera Tester

• CamView IP Pro-X Camera Tester
• Works with SD Analog, AHD 3.0, HD-CVI 3.0, HD-TVI 3.0, H.264, H.265 IP, NTCS/PAL, and all ONVIF enabled IP cameras
• USB, BNC, RJ45 and HDMI ports
• WiFi for connecting to WiFi cameras and to create a WiFi hotspot
• 25W PoE and 12VDC camera outputs

The CamView IP Pro-X is designed for the installation and maintenance of analog SD, analog HD and network HD video surveillance systems. It will guide you through a step-by-step process to test the functionality of IP cameras, whether they are connected to an existing network or directly attached to the Tester. You can adjust the camera’s settings, and record still images or video from the selected camera. You can also check the audio signal from the camera if it is equipped with a microphone. If the camera is directly connected, the Tester will provide POE voltage to power the camera. Comes complete with (2) Li-ion batteries, Universal AC adapter/charger with 4 plugs, Ethernet cable, BNC/BNC cable, microUSB to USB cable, RS485 cable with extra screw terminal, audio cable, 12V camera power cable, lanyard and carrying case.

The CamView IP Pro-X is designed for the installation and maintenance of analog SD, analog HD and network HD video surveillance systems.

Works with SD Analog, AHD 3.0, HD-CVI 3.0, HD-TVI 3.0, H.264, H.265 IP, NTCS/PAL, and all ONVIF enabled IP cameras.

• USB, BNC, RJ45 and HDMI ports
• 5W PoE and 12VDC camera outputs

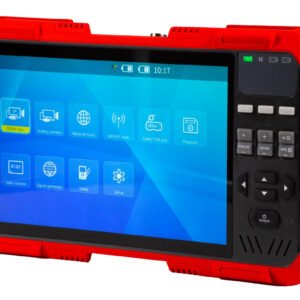

• 7″ touchscreen
• TDR and RJ45 Cable Test
• Built-in video test image generator
