Triplett ADL20 – USB DC Current Datalogger, 4 to 20mA
47 people are viewing this product right now
Original price was: $120.98.$86.93Current price is: $86.93.
Shipping calculated at checkout.
Estimated delivery:5 days
4 to 20mA DC Current USB Datalogger
- Monitor single channel 4 to 20mA current loops
- Built-in 2000-count LCD display provides clear, easy-to-read data
- Record up to 31,320 DC Current readings, ensuring comprehensive monitoring
- USB interface for easy transfer of recorded data to your PC
- User-adjustable sampling rate from 1 second to 24 hours
- High/Low alarms with visual alerts
- 2 LEDs indicate status of record and alarm
- 3.6V Lithium battery, test leads with alligator clips, protective cap, and software included
- DC current range: 0 to 20.00mA
- Accuracy: ±0.5%, Resolution: 0.01mA
Guarantee Safe and Secure Payment Checkout
Description
Triplett ADL20
- Monitor single channel 4 to 20mA current loops
- Built-in 2000-count LCD display provides clear, easy-to-read data
- Record up to 31,320 DC Current readings, ensuring comprehensive monitoring
- USB interface for easy transfer of recorded data to your PC
- User-adjustable sampling rate from 1 second to 24 hours
USB DC Current Datalogger, 4 to 20mA
The Triplett ADL20 is a 4 to 20mA DC current USB datalogger designed to monitor single channel 4 – 20mA current loops commonly used in process control applications. The ADL20 offers comprehensive data logging with its capacity to record up to 31,320 DC current readings and a user-adjustable sampling rate ranging from 1 second to 24 hours.
The ADL20 is equipped with visual high/low alarms ensuring prompt attention when the predefined settings are exceeded. Additional features include two LED status indicators, a built-in multifunction 2000-count LCD, and a USB interface for seamless data transfer. A 3.6V Lithium battery, test leads with alligator clips, a protective cap, and software are included.

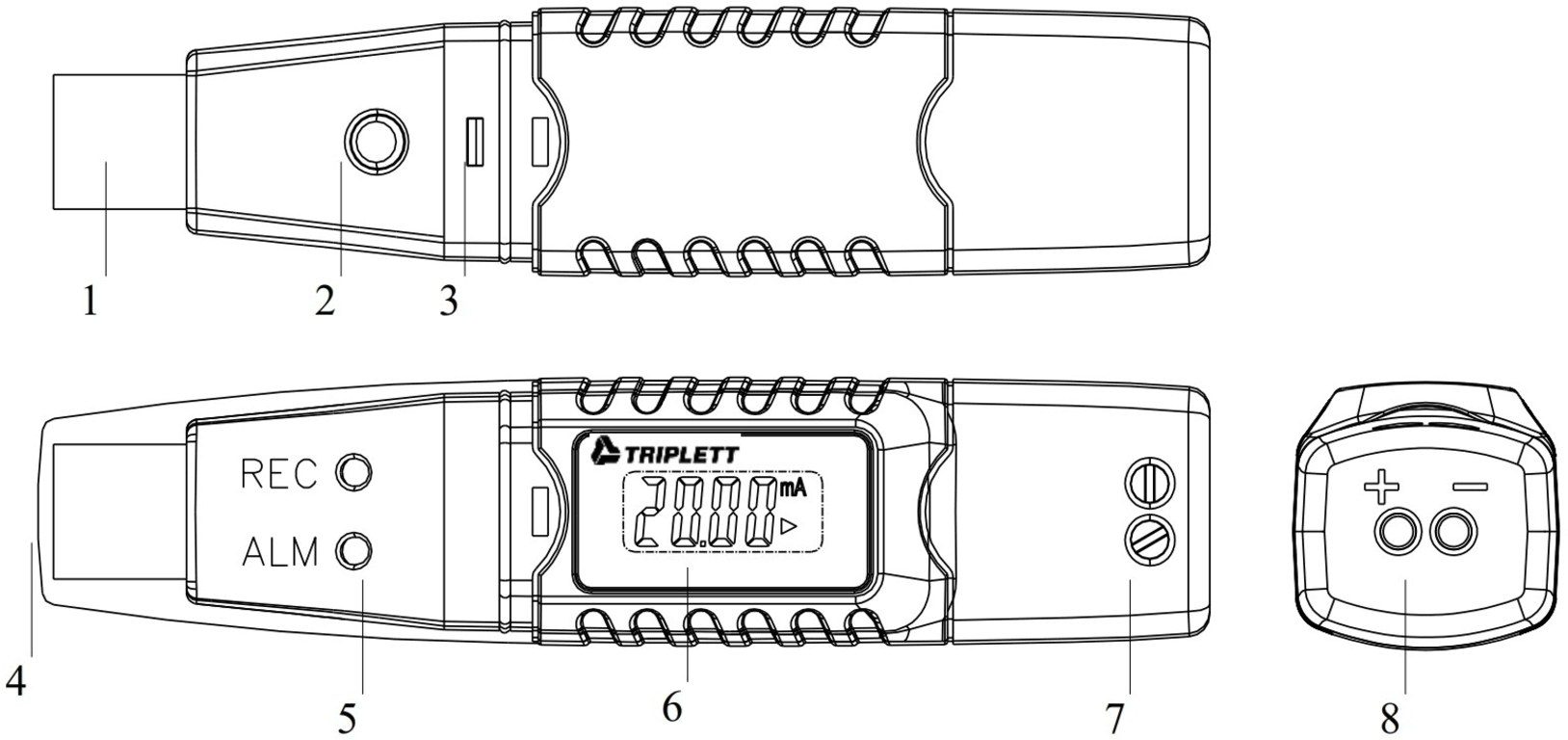

ADL20 Product Overview
| 1. USB connection plug | 5. Red and green LED control light |
| 2. Key | 6. LCD |
| 3. Case buckle | 7. Measuring wire set screw |
| 4. Protective cap | 8. Measuring wire ports |
Dataloggers / Data Acquisition/Current Dataloggers Template | |
|---|---|
| Max Current | 20 mA (0.02 A) |
| Min Current | 0 mA (0 A) |
| Power Source | Battery |
| # Data Points | 31320 |
| # Inputs/Channels | 1 |
| SAMPLE RATE/Intervals | 1 second to 24 hours |
| Accuracy | ±0.5% |
| LCD Screen | Yes |
| Software Included | Yes |
| Type | DC |
Product General Attributes | |
| Product Weight | 0.25 LBS |
| Product Height | 0.9 IN |
| Product Length | 4.2 IN |
| Product Width | 0.9 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 4.2 × 0.9 × 0.9 in |
