Triplett BR510 – 360 Degree Articulating Borescope

• Waterproof (IP67) 6mm camera on 1.5m cable (only camera head is waterproof)
• 2-way articulating probe adjusts 180° in both directions
• 8 adjustable LEDs with 3 brightness levels
• 5” color TFT LCD monitor with 1920 x 1080 resolution
• Built-in clock/calendar

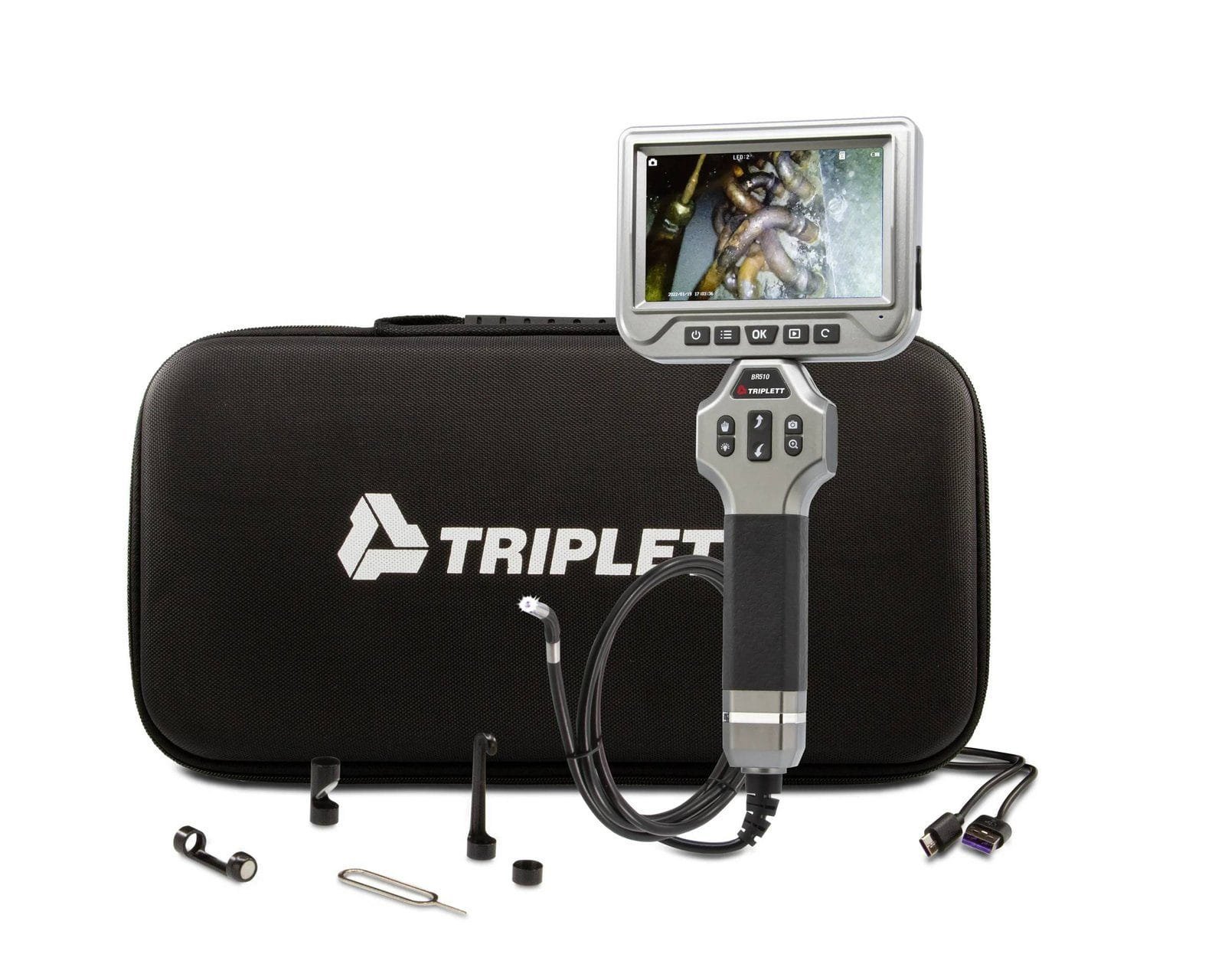

The Triplett BR510 high-definition articulating borescope inspection camera allows you to see behind walls and down drains, which can save time and money on a repair or installation. It has a 6mm waterproof (IP67) camera with a two-way articulating probe that adjusts 180° in both directions. Six adjustable LEDs with three brightness levels can illuminate totally darkened areas for inspection. It features a five-inch color TFT LCD monitor with 1920 x 1080 resolution, a built-in clock/calendar, and the ability to record video (.AVI) and capture images (.JPG). View video and images on the display or transfer to your PC using the USB interface or a removable SD card. You can store up to 19k images or 20 minutes of video (three-minute files) on the included 4GB SD card. Video recording mode features a freeze function. Includes borescope, 1.5m articulating probe with 6mm camera, 5V Li-Po (lithium-polymer) rechargeable battery, microSD card, USB cable, and camera accessories (magnet, hook, protective cap).

1. Power Button: Press and hold for 3 seconds to turn on/off

2. Setting: Enter/Exit the setting interface

3. OK: Confirm selection

4. Photo/Video Playback: Enter/Exit photo/video playback

5. Image Rotation: Press to rotate the picture 360°

6. Charging/Data Port

7. TF Card Slot

8. Freeze Image

9. Adjust light brightness

10. Bend 180° to the Left

11. Bend 180° to the Right

12. Taking Photo/Video

13. Zoom in
