Triplett CM1070-NIST – 1000A AC/DC True RMS Clamp Meter with Dual Type K and uA and Certificate of Traceability to N.I.S.T.

• Measures up to 1000A AC and DC current
• Dual Type K input for Superheat and Differential temperature measurement
• µA for HVAC flame rod current measurement
• True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
• Built-in Non-Contact Voltage Detector with LED

The Triplett CM1070-NIST is a true RMS clamp meter that can measure AC and DC current up to 1000A without breaking the circuit by clamping around a single conductor. This model includes a Certificate of Traceability to NIST. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. The CM1070 also includes Dual Type-K input for superheat and differential temperature measurement and uA current for HVAC flame rod measurement.

Additional measurements include resistance, capacitance, frequency, temperature, diode test, and continuity. Measurements can be read on the dual 50,000-count backlit LCD screen. Features include an NCV detector with LED, built-in flashlight, peak voltage measurement, min/max and data hold, low battery indication, and auto power off (can be disabled).

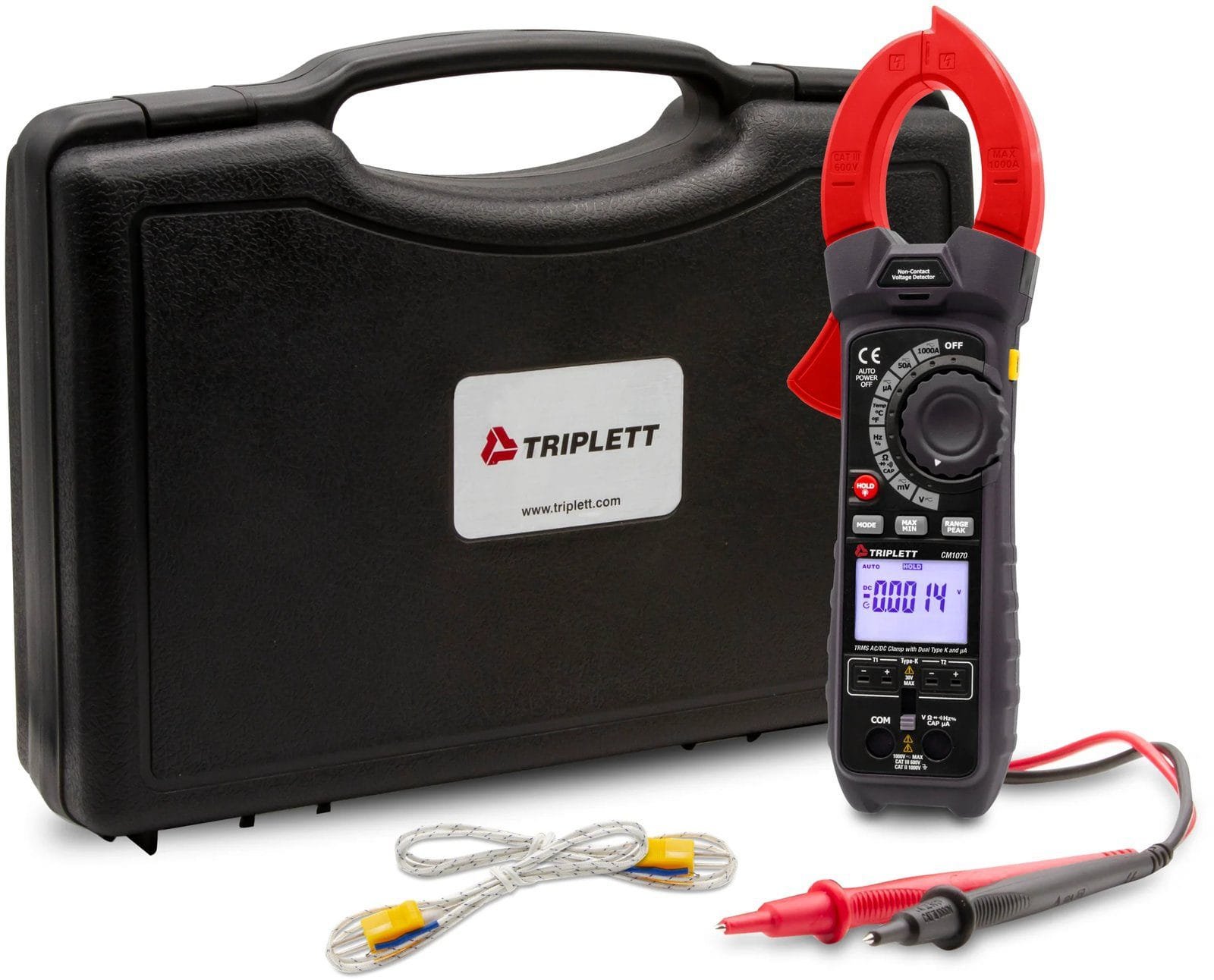

The CM1070 adheres to CAT IV, 600V safety standards and comes with test leads, type-K thermocouple bead probes (2), a 9V battery, a carrying case, and a Certificate of Traceability to N.I.S.T.

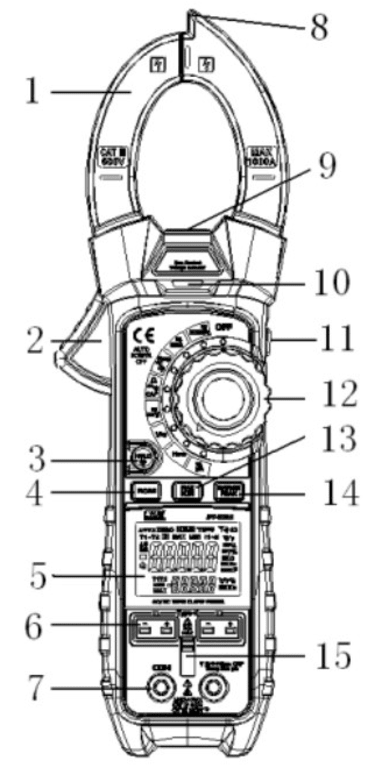

1. Current clamp

2. Clamp opening trigger

3. Hold/Backlight button

4. Mode / °C/ °F

5. Backlit LCD

6. Type K input jacks

7. Multimeter input jacks

8. Non-contact voltage detector

9. Lamp

10. NCV LED indicator

11. Lamp/Zero button

12. Function switch

13. Max/Min button

14. Range/Peak / Thermocouple display button

15. Input shutter
