Triplett MG500-NIST – Insulation Resistance Meter / Multimeter (Incl NIST Cert.)

• Includes NIST Certificate of Traceability
• Insulation Tester designed to measure insulation resistance up to 200GΩ
• Wide range of test voltages (50V, 100V, 250V, 500V, 1000V)
• Measurements Include – AC/DC Voltage, Resistance, Capacitance, Frequency, Continuity
• Polarization Index (PI) and Dielectric Absorption Rate (DAR) for advanced insulation analysis

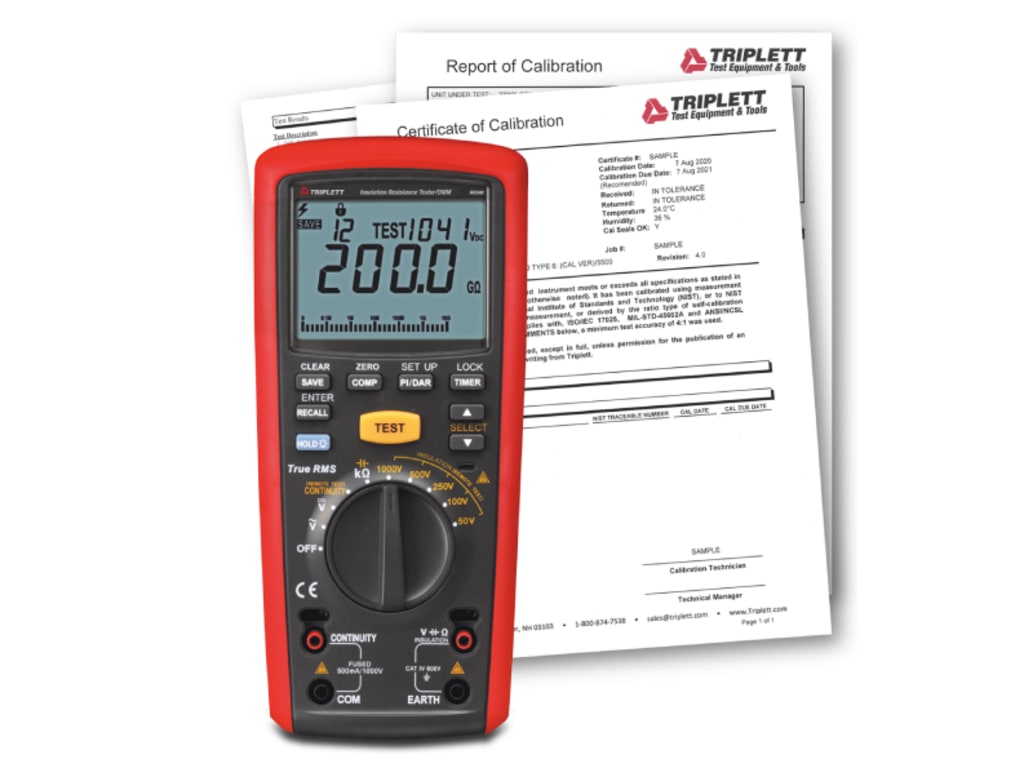

The Triplett MG500-NIST comes with a Certificate of Traceability to N.I.S.T.

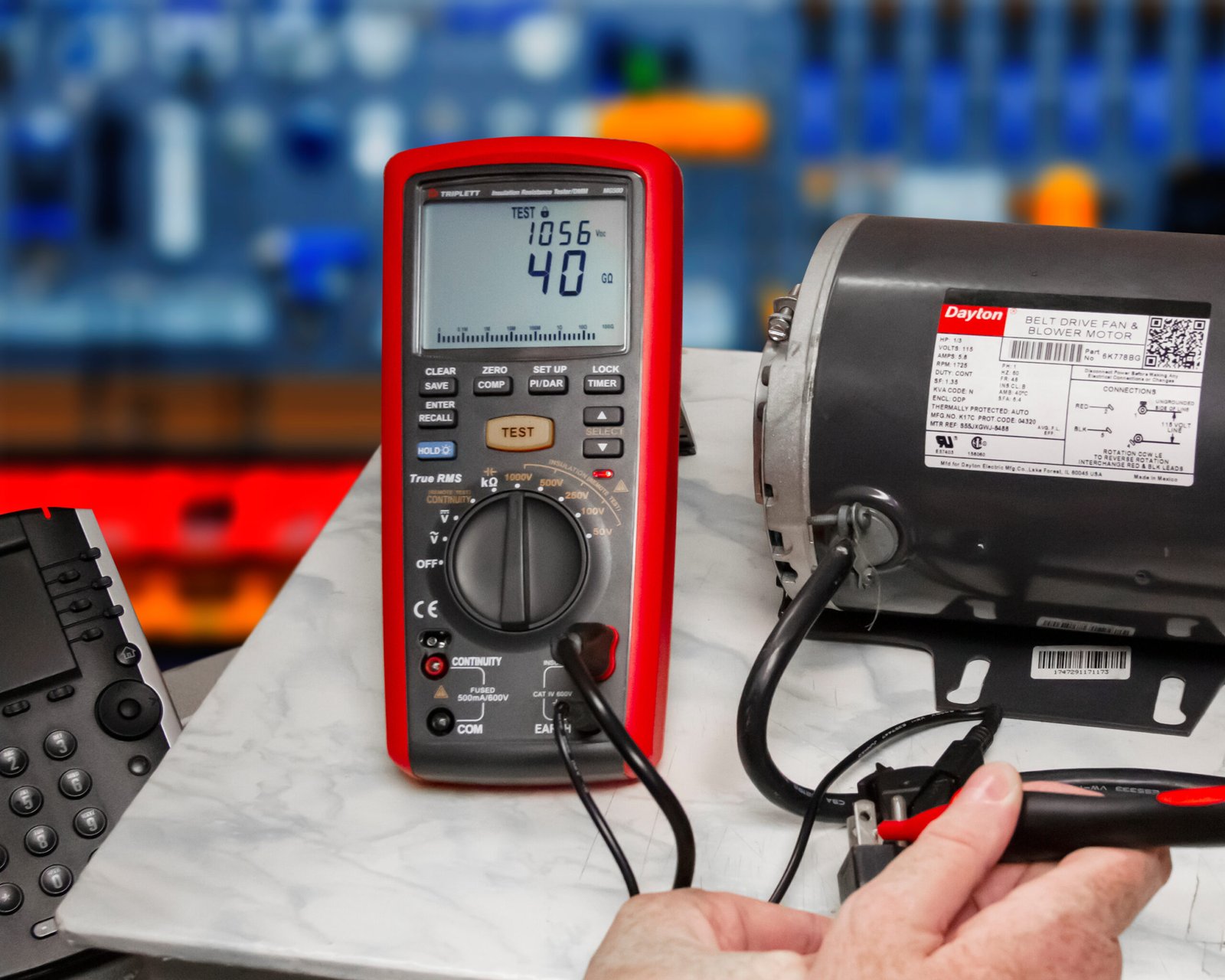

The Triplett Model MG500 Insulation Tester is a comprehensive testing instrument designed to measure insulation resistance up to 200GΩ. It offers a wide range of testing capabilities, including five test voltages (50V, 100V, 250V, 500V, and 1000V), as well as measurements of AC/DC Voltage, Resistance, Capacitance, Frequency, and Continuity.

The Triplett Model MG500 Insulation Tester is a versatile and reliable instrument that simplifies insulation testing and electrical measurements across various applications. It offers advanced features and a complete set of accessories to meet your testing needs with accuracy and convenience.

• Insulation Resistance to 200GΩ – Capable of measuring insulation resistance up to 200GΩ, ensuring thorough insulation testing
• Multiple Test Voltages – Supports five test voltages (50V, 100V, 250V, 500V, and 1000V) to suit various testing scenarios
• Polarization Index (PI) and Dielectric Absorption Rate (DAR) – Features PI and DAR measurements for advanced insulation analysis
• Lock Power Feature for Hands-Free Operation – Provides a lock power function for hands-free and stable testing
• Timed Test Function – Includes a timed test function with settings from 1 to 10 minutes in 1-minute increments
• ETL Listed – ETL listing ensures product safety and compliance with industry standards
• Comparison Mode (Pass/Fail) – Offers a comparison mode to quickly determine if test results meet the specified criteria
• Leakage Current Measurement – Allows for leakage current measurement to assess insulation integrity
• AC/DC Voltage, Resistance, Capacitance, Frequency, and Continuity Measurement – Performs a wide range of electrical measurements for comprehensive testing
• Complete Package – The insulation tester includes test leads, test probes, a remote control probe, alligator clips, (6) AA batteries, and a durable carrying case
• CAT IV 600V Safety Category – Rated for CAT IV 600V safety category, ensuring safe operation in demanding electrical environments
