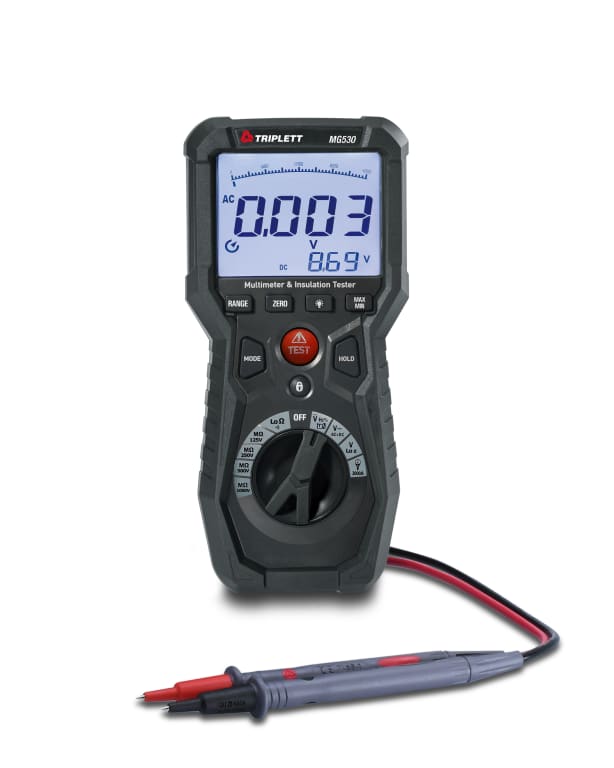

Triplett MG530 – Insulation Tester / Multimeter (4000MΩ / 1000V)

• To measure insulation resistance up to 4000MΩ using (4) voltages 125V, 250V, 500V, and 1000V
• Measurements Include – AC/DC Voltage, Resistance, Frequency, Continuity
• Includes a 3000A AC Current measurement option (flex clamp optional)
• CAT IV 600V safety category, for safe operation in demanding electrical environments
• Lock Power feature for hands-free operation; Live circuit voltage indicator

The Triplett MG530 is a versatile tester that offers a wide range of functions. It can test insulation resistance up to 4000MΩ using four test voltages (125V, 250V, 500V, 1000V). Additionally, it can measure AC/DC Voltage, Resistance, Frequency, and Continuity. This tester comes equipped with a Lock Power function for hands-free operation, allowing you to focus on your measurements. It also features a live circuit voltage indicator for added safety. The MG530 includes a 3000A AC Current measurement option (using an optional flex clamp).

For enhanced functionality, it offers a LoZ (impedance) mode to identify ghost voltages and an LPF (low pass filter) mode for filtering frequency and harmonic interference when measuring variable frequency drives. The backlit 4000 count LCD display with bar graph provides clear and easy-to-read results.

• Insulation Resistance Testing – Tests insulation resistance up to 4000MΩ with four test voltages (125V, 250V, 500V, and 1000V)
• Lock Power Feature – Allows for hands-free operation during testing
• Wide Range of Measurements – Measures AC/DC Voltage, Resistance, Frequency, and Continuity
• Live Circuit Voltage Indicator – Provides a clear indication of live circuit voltage for added safety
• Additional Features – Includes a 3000A AC Current measurement option (using optional flex clamp), LoZ (impedance) mode for identifying ghost voltages, and LPF (low pass filter) mode for filtering interference
• Backlit LCD Display – Features a backlit 4000 count LCD display with bargraph for easy reading
• Safety Rating – CAT IV 600V safety rating ensures secure operation
• Complete Package – Includes test leads, (6) AA batteries, and a carrying case
