Triplett PCAL200-NIST – Voltage and Current Source Calibrator with Certificate of Traceability to NIST
13 people are viewing this product right now
Original price was: $797.48.$639.89Current price is: $639.89.
Shipping calculated at checkout.
Estimated delivery:5 days
Voltage and Current Source Calibrator with Certificate of Traceability to N.I.S.T.
- Voltage and Current Source Calibrator with Certificate of Traceability to NIST
- Precision calibrator provides 0.05% accuracy for voltage and current source outputs
- Versatile tool for various applications in electronics testing, calibration, research, and development
- Versatile current span adjustment (0-20mA/4-20mA) with percentage readout
- Choose between automatic sawtooth or triangular output current step functions
- Built-in functions include flashlight, auto power off, low battery indicator
- DC Voltage Range (Resolution): 10V (0.001V)
- DC Current Range (Resolution): 30mA (0.001mA)
- Maximum Load: 1000Ω at 10mA
Guarantee Safe and Secure Payment Checkout
Description
Triplett PCAL200-NIST
Voltage and Current Source Calibrator with Certificate of Traceability to NIST
- Precision calibrator provides 0.05% accuracy for voltage and current source outputs
- Versatile tool for various applications in electronics testing, calibration, research, and development
- Versatile current span adjustment (0-20mA/4-20mA) with percentage readout
- Choose between automatic sawtooth or triangular output current step functions
Voltage and Current Source Calibrator with Certificate of Traceability to NIST

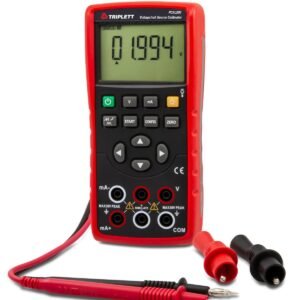

The Triplett PCAL200 DC Voltage and Current Source provides an adjustable 0-20mA/4-20mA span with % readout and a 0 to 10V DC voltage range with 0.05% accuracy that can be used for benchtop and field industrial process device testing and calibration. It features automatic sawtooth or triangular output current step function, on-screen low battery indication, auto power off, and a built-in flashlight. The Triplett PCAL200 includes test leads, (3) AA batteries, (2) spare fuses, and latch key (for opening battery door).

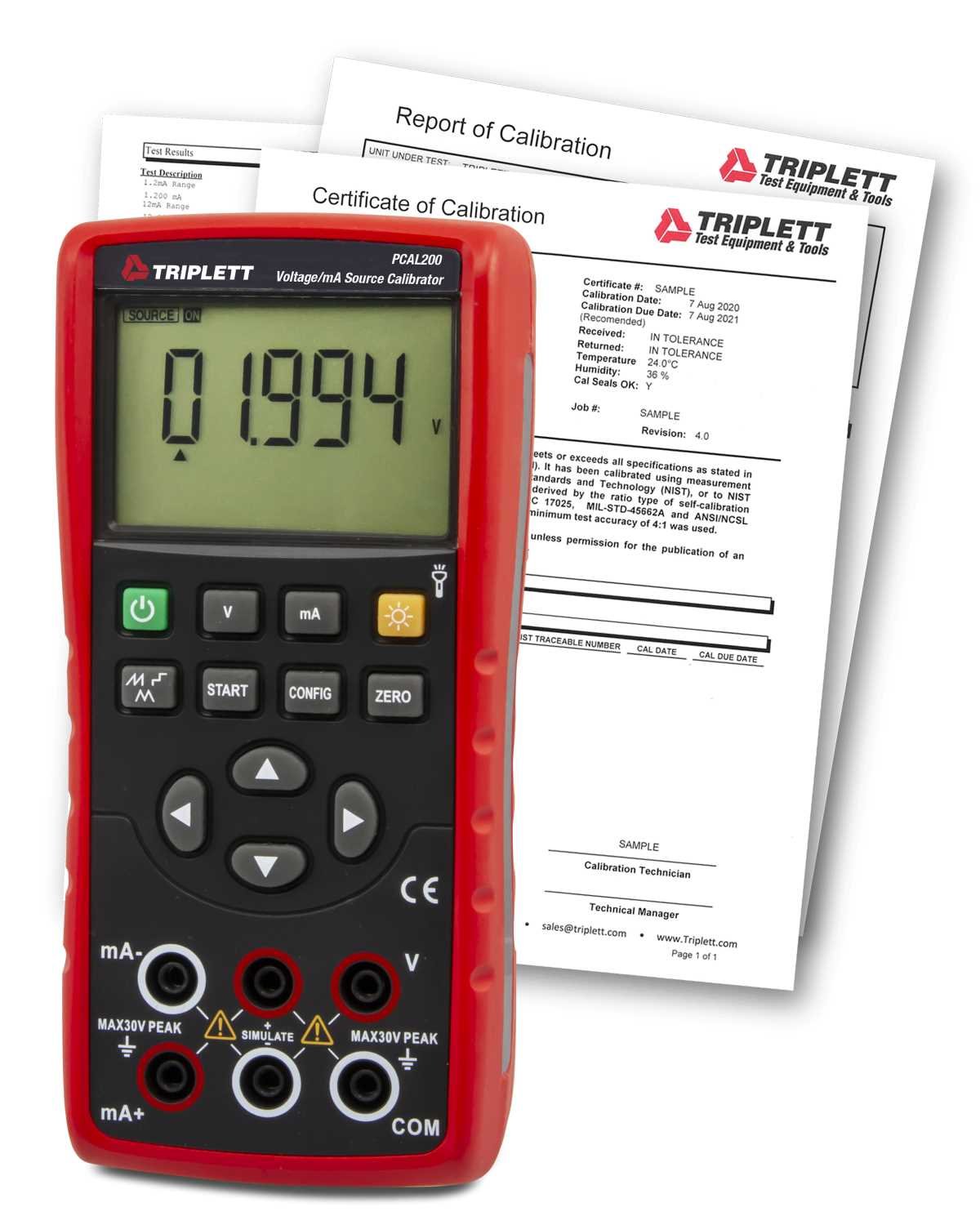

The Triplett PCAL200-NIST Voltage and Current Source Calibrator includes a Certificate of Traceability to NIST.
Triplett PCAL200 – Voltage and Current Source Calibrator Applications
The PCAL200 TDC Voltage and Current Source is a versatile tool suitable for various applications in fields such as electronics testing, calibration, research, and development.
- Calibration Labs
- Process Control
- Electronic Circuit Testing
- Instrumentation Development
- Sensor Testing and Validation
- Automated Test Systems
- Educational Laboratories
- Research and Development
- Battery Testing
- LED and Lighting Testing
Process / Calibration/Signal Calibrators/Voltage Calibrators Template | |
|---|---|
| Style (Voltage Calibrators) | Hand Held |
| Display (Voltage Calibrators) | Single |
| Measure Input Voltage | No |
| Source Ouput Voltage | Yes |
| Maximum Source Voltage | 10 V |
| Voltage Accuracy | ±(0.05% + 2mV) |
| Current Measurement | No |
| Current Source Output | Yes |
| Measure T/C | No |
| Measure RTD | No |
| Measure Resistance | No |
| Measure Frequency | No |
| Measure Voltage | No |
| Measure Current | No |
| Auto Step/Ramp | No |
Process / Calibration/Milliamp Calibrators Template | |
| Source/Simulate DC Current | Yes |
| Measure DC Current | No |
| Two Wire Transmitter Simulation | No |
| Percent Display | Yes |
| Resolution AC Current | 0.001 mA (0.000001 A) |
| Accuracy | ±(0.05% + 4µA) |
| Simulate Loop Voltage | No |
| Backlight | Yes |
| Ramp/Step Output | Yes |
| FieldBus Compatible | No |
