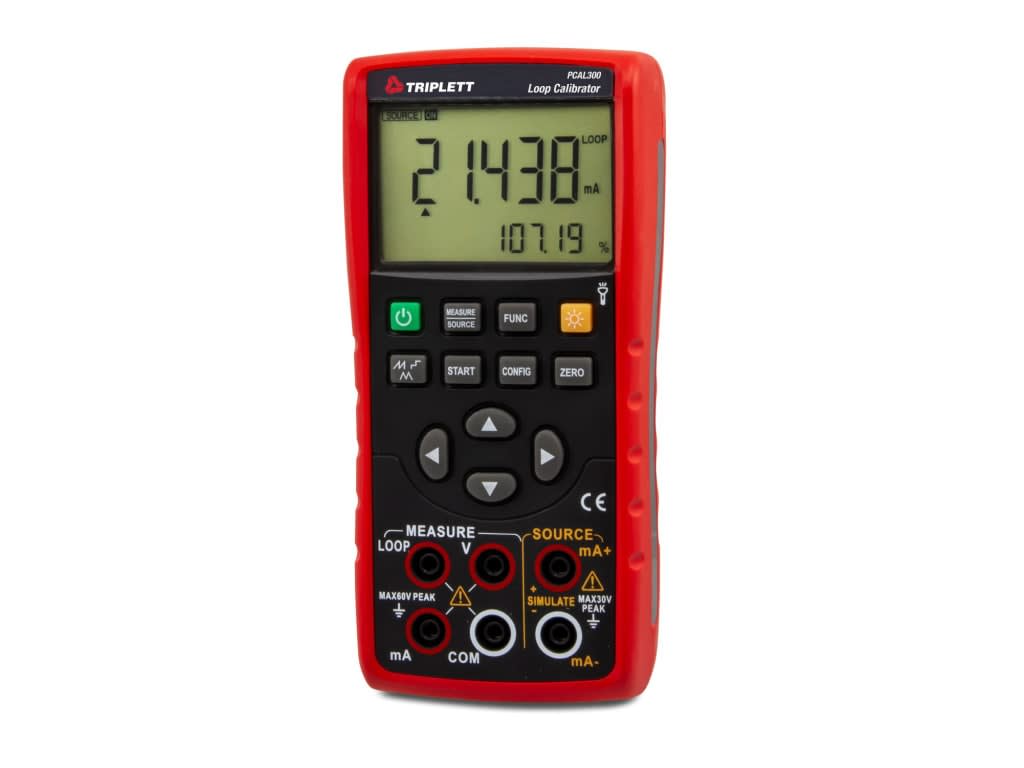

Triplett PCAL300 – Loop Process Calibrator

• Loop Process Calibrator to measure DC voltage/current and source DC mA current

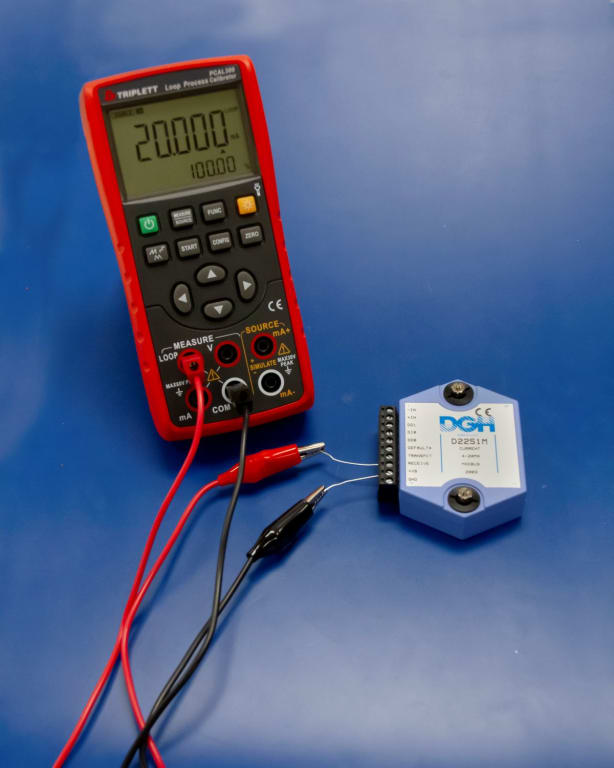

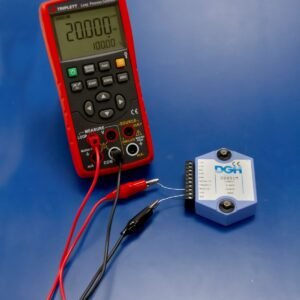

• Simultaneously provide 24V loop power to transmitters while conducting mA current measurements
• Precision calibrator provides source and measure accuracy up to 0.02%
• Versatile current span adjustment (0-20mA/4-20mA) with percentage readout
• Choose between automatic sawtooth or triangular output current step functions

The Triplett PCAL300 Loop Process Calibrator for benchtop and field industrial process device testing and calibration can easily measure DC voltage/current and source DC mA current with an accuracy of 0.02%. It can simultaneously provide 24V loop power to transmitter while conducting mA current measurement. In addition, it features an adjustable 0-20mA/4-20mA span with % readout, automatic sawtooth or triangular output current step function, auto power off, and a built-in flashlight. Includes test leads, (3) AA batteries, (4) spare fuses, and latch key (for opening battery door).

The PCAL300 Loop Process Calibrator offers a range of capabilities that make it invaluable in various industrial and field applications where precise measurement and calibration of DC voltage/current and loop-powered devices are essential.

• Process Instrumentation Calibration
• Field Instrumentation Troubleshooting
• Loop-Powered Transmitter Testing
• Control Valve Calibration
• PLC and DCS System Setup
• Energy Management Systems
• Field Maintenance and Commissioning
• Building Automation Systems
• Water and Wastewater Treatment
• Renewable Energy Systems
