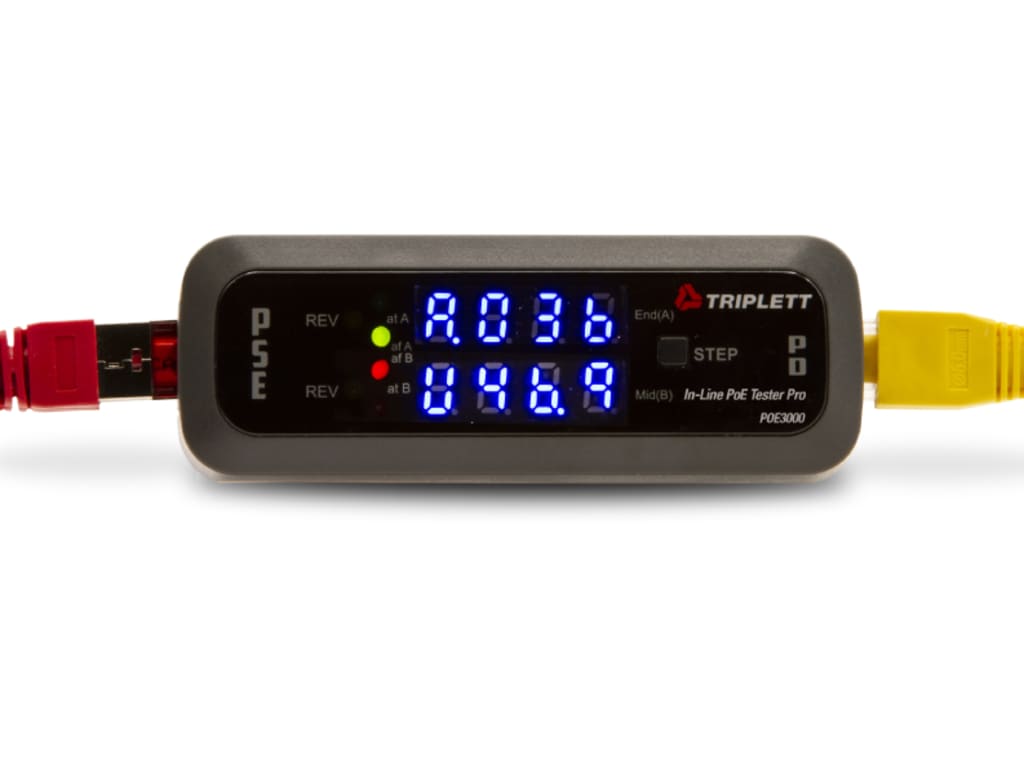

Triplett POE3000 – In-line PoE Tester Pro (Passes Thru Voltage and Data)

• This in-line PoE tester also allows the passage of both voltage and data
• 4 LEDs indicate IEEE802.3af or 802.3at/bt standard
• Detects PSE-type/class, power source, polarity, voltage, current, power
• Determines standard PoE (36 to 60V) or non-standard (11 to 60V) passive PoE
• Tester designed to speed up the installation, and troubleshooting of PoE system devices

The Triplett POE3000 In-Line PoE Tester Pro is a valuable tool that streamlines the installation and troubleshooting of PoE (Power over Ethernet) system devices. It simplifies the process by offering various detection capabilities. The tester’s 4 LEDs indicate whether it complies with IEEE802.3af or 802.3at/bt standards. It can detect PSE (Power Sourcing Equipment) type/class, power source, polarity, voltage, current, and power, and determine if it is End Span (1/2, 3/6), Midspan (4/5, 7/8), or across all 4 pairs. For added convenience, the tester can differentiate between standard PoE (36 to 60V) and non-standard (11 to 60V) passive PoE, making it suitable for various PoE setups. It also includes 2 yellow LEDs to indicate reversed polarity for power type.

The Triplett POE3000 provides inline power level monitoring that alternates between displaying Voltage, Current, and Power. It incorporates a step button for selecting specific data to display. No batteries are required as it utilizes system power when connected to a device.

• Passes Thru Voltage and Data – This in-line PoE tester not only detects various PoE parameters but also allows the passage of both voltage and data, ensuring seamless power and data transmission in your PoE system
• Streamlines Installation and Troubleshooting – Helps to speed up the installation and troubleshooting of PoE system devices
• IEEE802.3af/802.3at/bt Detection – 4 LEDs indicate IEEE802.3af or 802.3at/bt standard compliance
• Comprehensive Detection – Detects PSE-type/class, power source, polarity, voltage, current, and power, and determines End Span, Midspan, or across all 4 pairs
• Standard vs. Non-Standard PoE – Determines standard PoE (36 to 60V) or non-standard (11 to 60V) passive PoE
• Polarity Reversal Indication – 2 Yellow LEDs indicate reversed polarity for power type
• Inline Power Level Monitoring – Alternates between displaying Voltage, Current, and Power with a step button for data selection
• No Battery Required – Uses system power when connected to a device
• Complete Package – Includes the Inline PoE Tester Pro for your convenience
