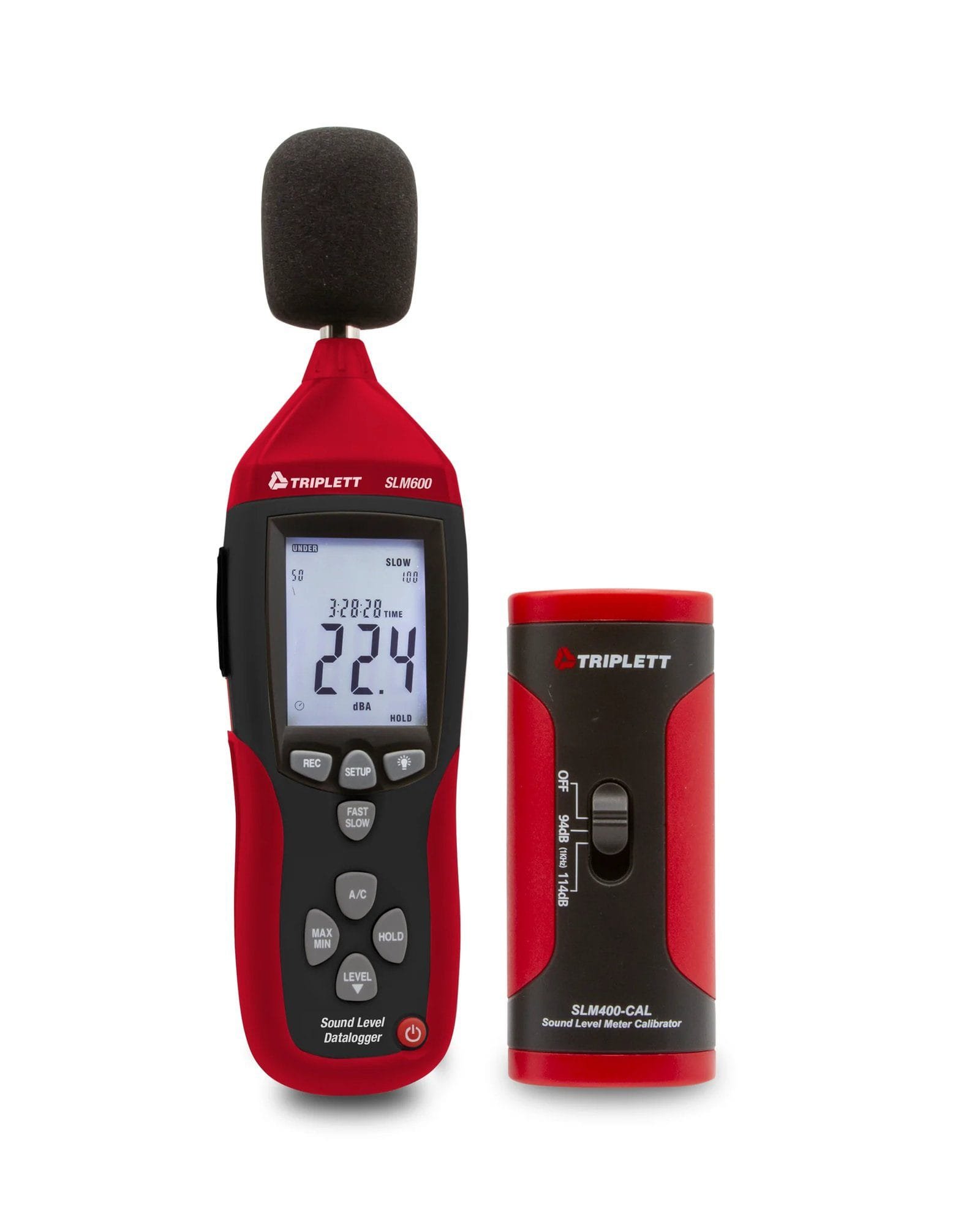

Triplett SLM600-KIT – Sound Datalogger Kit with Calibrator

• Records up to 32,700 readings with user programmable sample rate
• Meets IEC 61672-1 Class 2 standards with ±1.4dB accuracy
• A and C weighting with selectable fast/slow response time
• Includes Class 2 Sound Level Meter/Datalogger with wind screen, 9V battery, USB cable, screwdriver, and software, plus Sound Level Calibrator with 9V battery
• 1 year warranty

The Triplett SLM600-KIT Sound Level Meter/Datalogger with Calibrator Kit can be used to test and verify sound levels for worker safety (OSHA), community noise ordinances, night clubs/concerts, airports, mines, athletic events, construction sites, vehicle testing, wind farms, new product noise reduction, and other applications.

The Sound Level Meter meets IEC 61672-1 Class 2 with ±1.4dB accuracy. It can datalog up to 32,700 readings with user programmable sampling rate (1 to 59 seconds) and date/time stamp. It features a 30 to 130dB range (3 ranges) plus A and C weighting with selectable fast/slow response time.

Additional features include Analog AC/DC output, Data Hold, Min/Max, and Auto power off with disable.

The calibrator fits 1/2″ diameter microphones and has selectable 94dB and 114dB output with ±0.5dB accuracy. Calibrator output frequency is ±4%@1kHz.

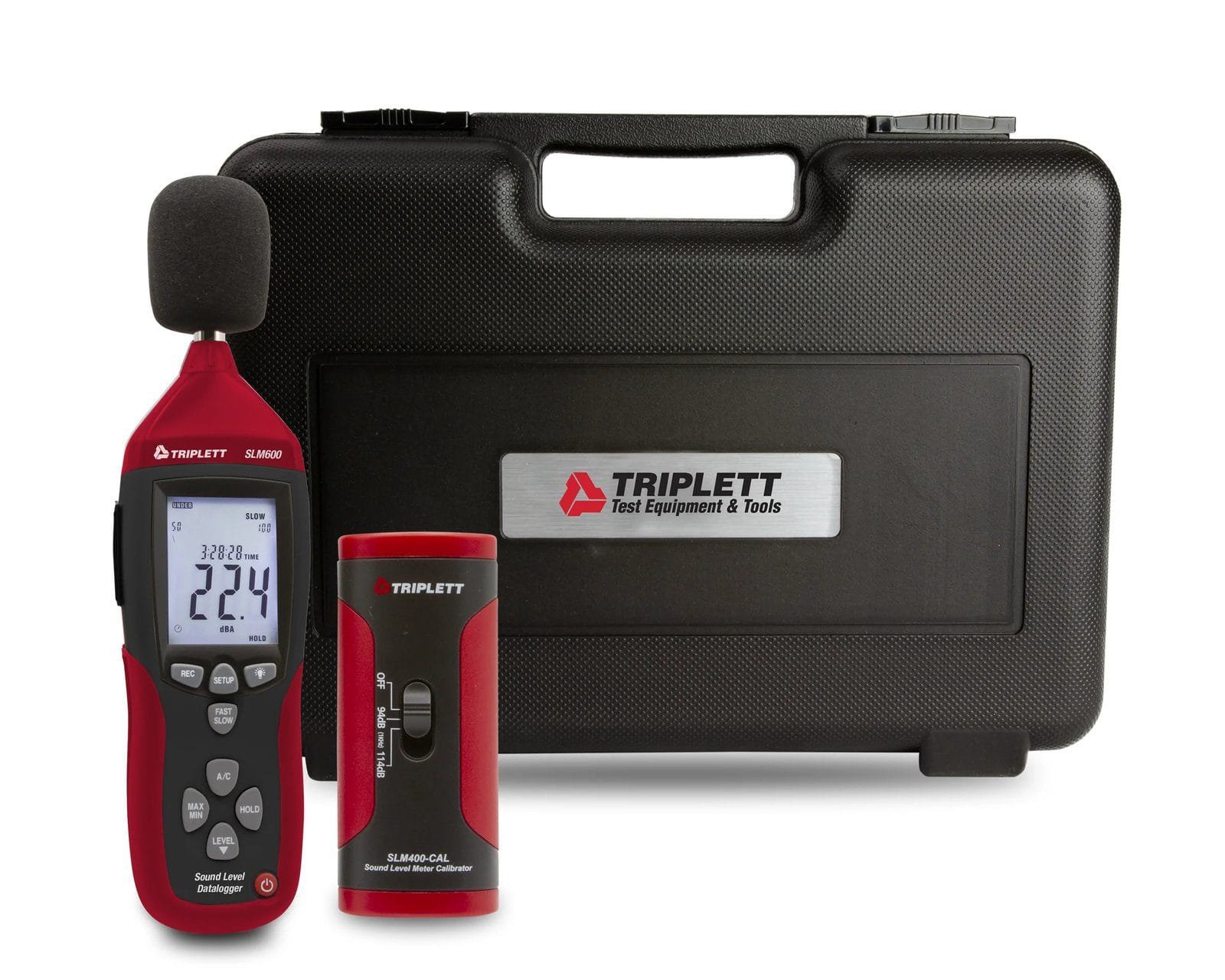

The kit includes Class 2 Sound Level Meter/Datalogger with wind screen, 9V battery, USB cable, screwdriver, and software, plus Sound Level Calibrator with 9V battery. All stored in a hard, carrying case. 1 year warranty.

1. Microphone

2. 4-digit LCD Display

3. ON-OFF button

4. LCD Backlight button

5. Frequency weighting selection button

6. Response time selection button

7. Range selector button

8. Max Hold / Data Hold selector button

9. Battery compartment on rear

10. Calibration pots in battery compartment

11. Windscreen
