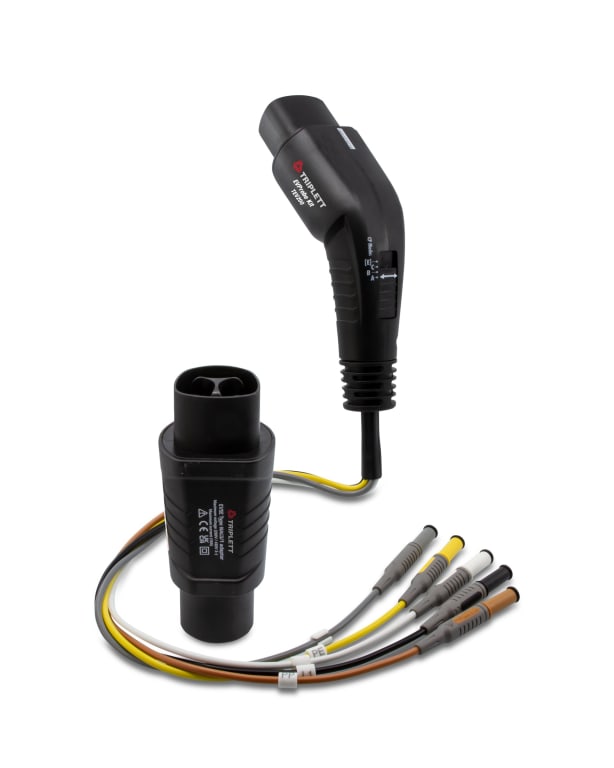

Triplett TEV200 – Electric Vehicle Probe Kit

• Plugs into your multimeter or multifunction tester (sold separately)
• L1, L2, L3, N, PE, CP, and PP wires of the charging connector are available
• Perform voltage, frequency, phase indication, phase sequence, RCD, resistance, and impedance tests
• Control Pilot State simulates different vehicle states with different resistances between conductors
• CP Signal output terminals can be connected to oscilloscope for waveform and amplitude checks

The Triplett Model TEV200 Electric Vehicle Probe kit plugs directly into your digital multimeter, clamp meter, or multifunction tester and allows you to perform typical measurements including voltage, frequency, phase indication, phase sequence, various RCD tests, insulation resistance, low ohm measurements, line impedances, and loop impedances (if supported by the measuring input device). It easily connects by wire (standard male banana type) between the EVSE charging point (Type-2 connector) and the measurement inputs of the DMM, clamp, or MFT.

The probe kit provides access to all wires of the charging connector: L1, L2, L3, N, PE, CP, and PP. The built-in Control Pilot (CP) State can simulate vehicle states with different resistances connected between CP and PE conductors. You can use the CP Signal output terminals to connect your oscilloscope (sold separately) to check the waveform and amplitude of the CP signal. CP Error “E” simulates the behavior of the station when there is an established short circuit between CP and PE.

The TEV vehicle charger testers are available in versions with different capabilities. Please see the table below for some highlighted differences. See each product page’s attached datasheet for specific information.

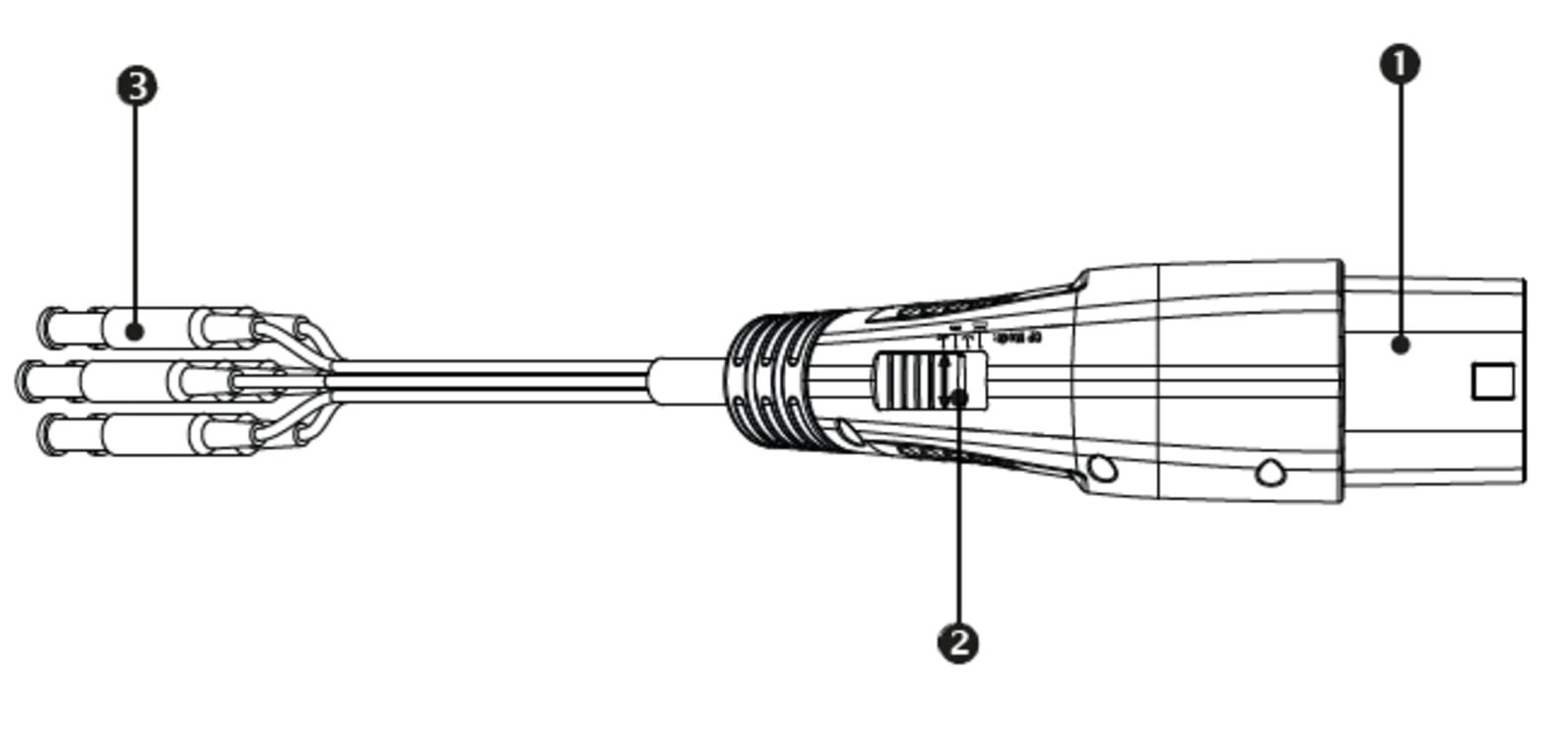

1. Type-2 plug (Type-2 to Type-1 adapter included, not pictured)

2. Slider switch for CP mode selection

3. Test leads with 4mm safety plugs for L1, L2, L3, N, PE, CP, and PP
