Triplett UTG300 – Ultrasonic Thickness Gauge

• Measures the thickness of steel, stainless steel, brass, copper, iron, lead, glass, and more
• Measurement range: 0.04 to 11.81-inch (1.00 to 300.00mm)
• 2.4-inch monochrome dot matrix display
• Single measurement, or continuous with real-time min/max/avg
• Switchable Metric (mm) or Imperial (inches) readout

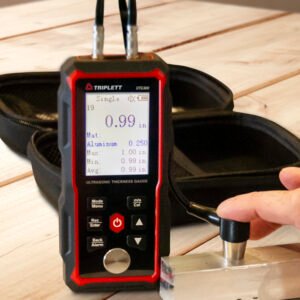

The Triplett UTG300 Ultrasonic Thickness Gauge can detect the thinning of pipes and pressure vessels from corrosion and make accurate measurements of plates and machined parts widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other fields. It has a switchable Metric (mm) or Imperial (inches) readout with a thickness measurement range of 0.04 to 11.81-inches (1.00 to 300.00mm) and a sound velocity range of 3280 to 32805ft/s (1000 to 9999m/s). Results can be viewed on the 2.4-inch monochrome dot matrix display.

High/Low alarms sound when the reading is higher or lower than the user-settable reference and limit values. Select between single measurement or continuous with real-time min/max/avg. You can manually store/recall up to 300 records with measured value/min/max/avg and sound velocity. A USB-C interface is provided for recharging the battery (Uses any standard 5V/1A charger, *sold separately*).

A 5MHz probe, built-in 3.7V 2000mAh lithium battery with USB type-C charging cable, and gel couplant are included.

Applications

• Detect the thinning of pipes and pressure vessels from corrosion
• Make accurate measurements of plates and machined parts
• Widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other fields
