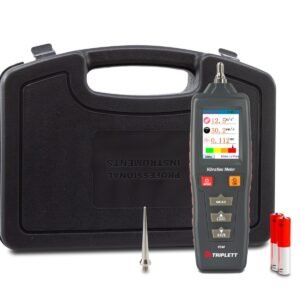

Triplett VB40-NIST – Vibration Meter with Certificate of Traceability to NIST
33 people are viewing this product right now
Original price was: $519.99.$413.16Current price is: $413.16.
Shipping calculated at checkout.
Estimated delivery:3 days
Vibration Meter with Certificate of Traceability to N.I.S.T.
- VB40 Vibration Meter with Certificate of Traceability to NIST
- Acceleration (RMS): 0.1 to 199.9m/s2; 655.8ft/sec2; 20.3g
- Velocity (RMS): 0.1 to 199.9mm/s, 7.87in/s; 2.00cm/s; 200mm/s
- Displacement: 0.001 to 1.999mm
- Wide frequency ranges (2): 10Hz to 1KHz (LO) and 1KHz to 4KHz (HI)
- Resolution to 0.1m/s2; 0.1mm/s
- Basic accuracy of +/- (5% + 2 digits)
- Data Storage: Store, View Files/Manual Recall – 500 Total Readings (5 groups of 100 readings per group)
- Machine Level Setting allows for setting baseline or reference level for vibration on a machine
- Piezoelectric Ceramic Accelerometer (Shear Type)
Guarantee Safe and Secure Payment Checkout
Description
Triplett VB40-NIST
- VB40 Vibration Meter with Certificate of Traceability to NIST
- Acceleration (RMS): 0.1 to 199.9m/s2; 655.8ft/sec2; 20.3g
- Velocity (RMS): 0.1 to 199.9mm/s, 7.87in/s; 2.00cm/s; 200mm/s
- Displacement: 0.001 to 1.999mm
- Wide frequency ranges (2): 10Hz to 1KHz (LO) and 1KHz to 4KHz (HI)
Vibration Meter with Certificate of Traceability to NIST
The Triplett VB40 Vibration Meter is based on piezoelectric effect of artificially polarized ceramics. It is suitable for conventional vibration measurement of mechanical equipment, especially for rotating displacement, velocity and acceleration, and is widely used in fields like manufacturing, electric metallurgy and general aerospace.
​
Triplett VB40 – Vibration Meter Features
- Ranges
- Acceleration (RMS): 0.1 to 199.9m/s2; 655.8ft/sec2; 20.3g
- Velocity (RMS): 0.1 to 199.9mm/s, 7.87in/s; 2.00cm/s; 200mm/s
- Displacement: 0.001 to 1.999mm
- Wide frequency ranges (2): 10Hz to 1KHz (LO) and 1KHz to 4KHz (HI)
- Resolution to 0.1m/s2; 0.1mm/s
- Basic accuracy of ±(5% + 2 digits)
- LCD Auto-screen rotation: screen automatically adjusts its orientation based on the device’s physical orientation
- Data Storage: Store and View Files/ Manual Recall – 500 Total Readings (5 groups of 100 readings per group)
- Machine Level Setting allows for user setting baseline or reference level for vibration on a particular machine
- Work light for working in dimly lit areas
- Selectable Auto Power Off (APO) 0 to 9min
- Battery Life Indicator
Reliability / Preventative Maint / Rotational/Vibration Meter Template | |
|---|---|
| Accerlation Range | 199.9 m/sec2 |
| Number of Channels | 1 |
| Frequency Range | 4 kHz (4000 Hz) |
| Single Axis Measurement | Yes |
| Tri-Axial Measurement | No |
| Tachometer Capability | No |
| Peak/Hold | No |
