Description

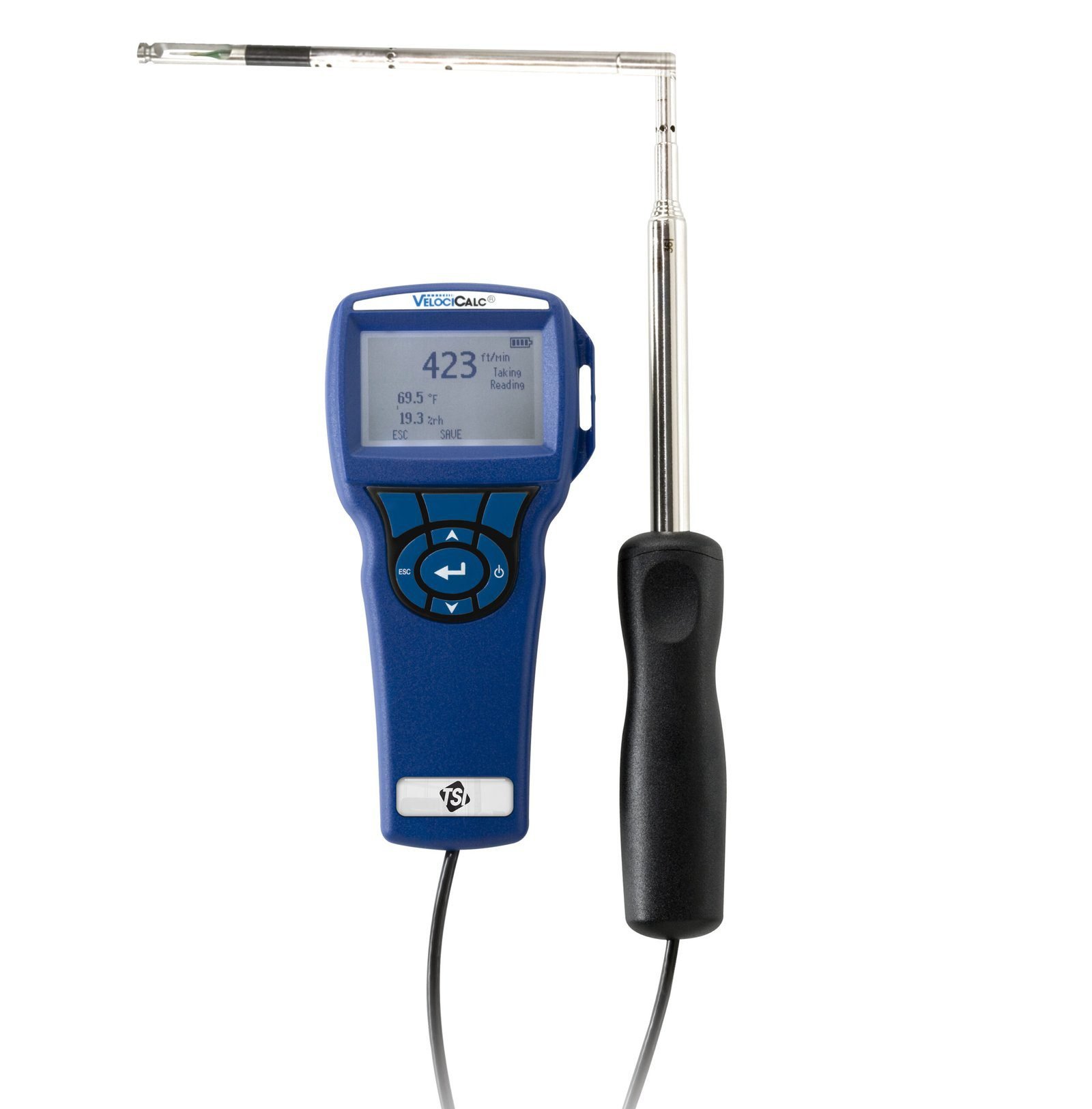

TSI 9545-A VelociCalc Air Velocity Meter with Straight Probe
- Simple intuitive operation
- Industry leading accuracy
- Calculates volumetric flow, and actual/standard velocity
- Displays humidity as % relative humidity, wet bulb or dew point temperature
- Displays up to three measurements simultaneously
- Data log 12,700+ samples and 100 test ID’s
The Model 9545 Air Velocity Meter from TSI Alnor is a versatile handheld environmental meter which can simultaneously measure and log several ventilation variables. The meter uses a single probe with multiple sensors to measure velocity and temperature, and calculate flow. The meter features high accuracy over a wide air velocity range of 0 to 6,000 ft/min (0 to 30 m/s).
The Model 9545 is also capable of measuring relative humidity, and calculating dew point and wet bulb temperature. This makes the meter ideal for optimizing HVAC system performance, commissioning, plant maintenance, critical environment certification and duct traverses.
Articulated probe
The Model 9545 includes an articulated probe to help you measure these variables even in tight environments. In addition to the articulated probe, the meter includes a hard carrying case, batteries, calibration certificate, and the LogDat2™ Downloading Software.
Industry Leading Performance
TSI meters, including the Model 9545, provide substantially better accuracy at low flows and throughout a wide dynamic range than competitive instruments. This gives users improved performance in critical applications, so results are always reliable. Customers and distributors agree that TSI instruments allow for best-in-class data management and reporting.
Calibration
The Model 9545 comes pre-calibrated and a certificate is included with purchase. Should you need recalibration at any point, TSI provides fast turnaround calibration and repair service with exceptional customer support. This means getting your instrument back fast to avoid costly downtime.
Applications
The Model 9545 includes many unique features which make the instrument easy to use in virtually any application. The meter can simultaneously measure temperature and velocity as well as display up to three measurements simultaneously. The Model 9545 is also the only meter in its series capable of measuring humidity. After measurements are completed, use the meter to calculate volumetric flow and actual/standard velocity.
Software Included
The Model 9545 also includes a data logging function with plenty of storage space. With the Model 9545, users can data log 12,700+ samples and 100 test IDs. With the included TSI LogDat2™ downloading software, transferring this data to a PC is quick and easy. Use your downloaded data to easily create professional reports for your clients.
| 9515 | 9535 | 9545 | 9565 | |
| CO2 | Optional | |||
| CO | Optional | |||
| Temperature | • | • | • | • |
| Humidity | • | • | ||
| Percentage outside air | Optional | |||
| Dew point | • | • | ||
| Wet bulb temperature | • | • | ||
| Data logging/downloading | • | • | • | |
| Statistics | • | • | • | |
| Review data | • | • | • | |
| Field Calibration | • | • | • | |
| Differential Pressure | • *Excludes 6565-X |
Environmental Testers / Physical Property/Anemometer / Air Flow Template | |
|---|---|
| Measurement (anemometer) | Ft/Min |
| Air Velocity Max | 6000 ft/min |
| Accuracy Air Velocity | ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater |
| Humidity | Yes |
| Temperature | Yes |
Environmental Testers / Physical Property/Hygrometers Template | |
| Measure Temperature | Yes |
| Style (Hygrometers) | Hand Held |
| Humidity Accuracy | ±3% RH |
| Temperature Accuracy | ±0.5°F (±0.3°C) |
Product General Attributes | |
| Product Height | 4.60 IN |
| Product Length | 16.55 IN |
| Product Width | 12.70 IN |
| HTS/Schedule B Number | 9026.20.8000 |
| ECCN Number | EAR99 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 4.60 IN |
| Shipping Length | 16.55 IN |
| Shipping Width | 12.70 IN |
