Description

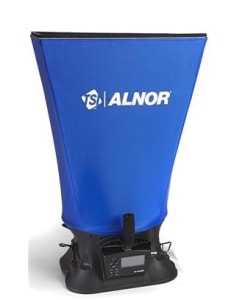

TSI EBT731 – Alnor Balometer Capture Hood
- Ergonomic, lightweight design enables easy one-person operation
- Automatic sensing and display of supply or return flows saves time on the job
- Back pressure compensation ensures accurate readings at high flow rates
- Detachable digital micromanometer provides additional measurement capability
The EBT731 Balometer Capture Hood is intended for applications including HVAC commissioning, clean room certification, HVAC system troubleshooting, and HVAC system testing and balancing. The unit includes NIST calibration as standard and comes with a certificate. Also included is a luggage-style carrying case for easy, safe transport. The unit is powered by four (4) AA size rechargeable NiMH batteries. A multi-country charger is included as well.
Improve Productivity
Utlizing real-time communication driven by wireless Bluetooth technology. Compatible with LogDat™ Mobile Remote Reader Software the EBT731 maximizes worker productivity and efficiency.
Generate Reports
Include comments, voice notes and photos for simple export via Gmail; Creating a seamless workflow between all team members. Allowing problems to be located and corrected quickly.

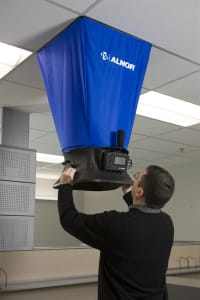

One-person Operation
No need for extra personnel or the use of ladders. The ergonomic, lightweight design of the EBT731 allows it to be transported between test sites safely and easily.
Overview
The EBT731 Balometer Capture Hood from TSI Alnor gives you the power to perform electronic air balancing faster than ever before, and with greater accuracy. The Capture hood’s ergonomic and lightweight design makes it easy to move around the job site and take direct air volume readings at diffusers and grilles with unmatched efficiency. Plus, all this can be easily done by one person.
All-in-one
The EBT731 Hood combines multiple measurement tools into one instrument to save you time and money. It includes a detachable digital micromanometer with carrying case, as well as an 18-inch Pitot probe and two Static Pressure probes. With its ergonomic, lightweight design, one person can take full control of the EBT731 and perform all necessary measurements.
The EBT731 can also automatically sense and display supply or return flows to save time on the job. The unit’s back pressure compensation feature also helps to ensure accurate readings. All this means that with the EBT731, one person can do the job, and do it right the first time. That saves time and helps you create healthy and energy efficient environments while meeting local codes, guidelines and regulations for ventilation systems.
Capture Hood Design
The hood itself features and ergonomic design which is ultra-lightweight for easy one-person operation. It can automatically sense and display supply or return flows, which saves time on the job. A unique Back Pressure Compensation feature ensures accurate readings. Multiple hood sizes are also available, making the Balometer Capture Hood extremely versatile in most HVACR applications.
What’s Included
The EBT731 combines multiple measurement tools into one instrument, so users can easily create healthy and energy efficient environments while meeting local codes, guidelines, and regulations for ventilation systems. These tools include the 2 ft. x 2 ft. air capture hood/frame/base and a detachable micromanometer with an included carrying case. One 18 in. Pitot probe and two Static Pressure probes, as well as neoprene tubing, are also included with the EBT731.
Large Display
All this is controlled via a large graphic display with backlight and intuitive menu structure. The screen can display up to five measurements simultaneously.
Export Wirelessly
When measurements have been completed, the unit allows you to export data via a USB cable or wireless Bluetooth communication.
Detachable Micromanometer
The detachable micromanometer included with the EBT731 can accurately measure pressure, velocity and flow to help you meet industry standards, as well as any local, state, and federal regulations. The manometer’s Auto-Zeroing pressure sensor cuts out several steps in the process and saves users valuable time. The unit’s integrated Log-Tchebycheff duct traverse application simplifies calculations and further helps to save time on the job. An Automatic Density Correction feature increases reading accuracy.
The micromanometer also includes a range of other unique features. An auto-zeroing pressure sensor reduces the number of steps for the user and saves time. Automatic density correction helps to increase reading accuracy. An integrated Log-Tchebycheff duct traverse application helps simplify calculations and save time. When it’s time to export data, the micromanometer allows for data transfer via USB cable and Bluetooth wireless communication.

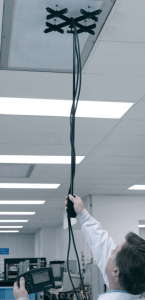

TSI Velocity Matrix Shown – Not Included
Balometer Attributes | |
|---|---|
| Maximum CFM | 2500 CFM |
Product General Attributes | |
| Product Height | 28.50 IN |
| Product Length | 29.50 IN |
| Product Width | 12.75 IN |
| HTS/Schedule B Number | 9026.90.4000 |
| ECCN Number | EAR99 |
| Country of Origin | United States |
