Description

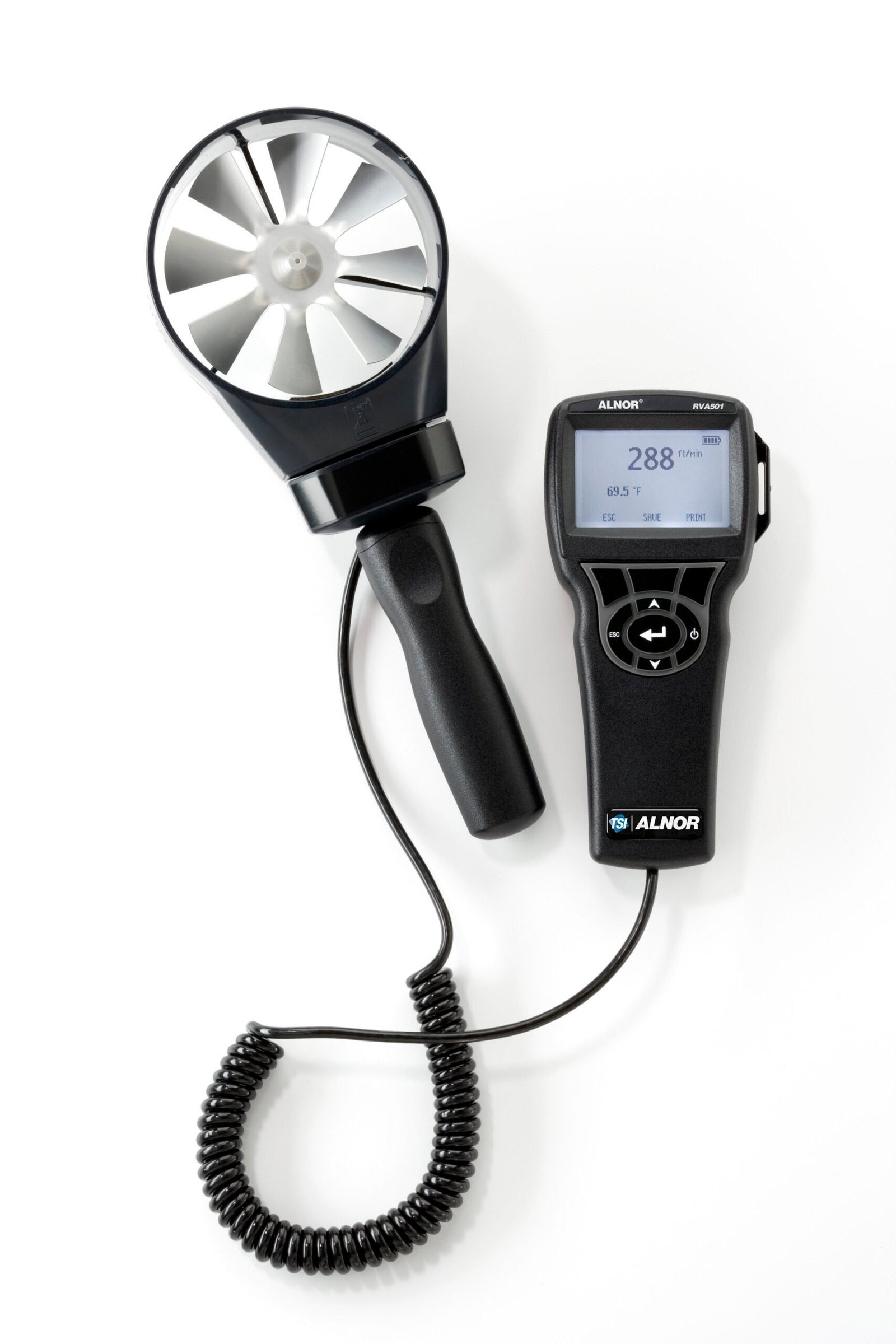

The Alnor® Rotating Vane RVA501 is a handheld digital rotating vane anemometer that measures air velocity, air volume, and temperature in imperial or metric units. The four-inch (100mm) head automatically averages velocity and volume readings, making the RVA501 an essential tool for measuring unevenly distributed or fluctuating flows through heating and cooling coils, diffusers, grilles, and filters. Sweep mode quickly and reliably provides one averaged reading of velocity or volume over a large measurement area. The detachable head is ideal for taking measurements in tight spaces. Its optional telescoping probe provides safe access to hard-to-reach locations and its data logging capability allows storage of more than 12,700 readings.
Ideal applications include heating and cooling coil analysis, diffuser and grille measurements, indoor air quality tests and filter face velocity measurements.
Environmental Testers / Physical Property/Anemometer / Air Flow Template | |
|---|---|
| Type (anemometer) | Vane |
| Measurement (anemometer) | Ft/Min, m/s |
| Air Velocity Max | 6000 ft/min |
| Air Velocity Min | 50 ft/min |
| Accuracy Air Velocity | ±1.0% of reading ±4 ft/min (±0.02m/s) |
| Temperature | Yes |
Product General Attributes | |
| Unique Features | Rectangular and circular cones available Measures volumetric flow at grilles and diffusers Reads air volume quickly and accurately Excellent choice for small grilles |
| Warranty | 24 MONTHS (2 YEARS) |
| Warranty Details | a. Hot-wire or hot-film sensors used with research anemometers, and certain other components when indicated in specifications, are warranted for 90 days from the date of shipment. b. Pumps are warranted for hours of operation as set forth in product or operator’s manuals. c. Parts repaired or replaced as a result of repair services are warranted to be free from defects in workmanship and material, under normal use, for 90 days from the date of shipment. d. Seller does not provide any warranty on finished goods manufactured by others or on any fuses, batteries or other consumable materials. Only the original manufacturer’s warranty applies. e. Unless specifically authorized in a separate writing by Seller, Seller makes no warranty with respect to, and shall have no liability in connection with, goods which are incorporated into other products or equipment, or which are modified by any person other than Seller. |
| Product Weight | 0.6 LBS Product Weight Meter Weight with Batteries |
| Product Height | 4.90 IN |
| Product Length | 16.60 IN |
| Product Width | 12.70 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9026.20.8000 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered Power Supply Voltage Four AA-size batteries or AC adapter |
| Country of Origin | United States |
| Shipping Height | 4.90 IN |
| Shipping Length | 16.60 IN |
| Shipping Width | 12.70 IN |
