TTi PFM3000 – 3GHz Hand-Held Counter
26 people are viewing this product right now
$243.10
Shipping calculated at checkout.
Estimated delivery:5 days
3GHz Hand-Held Counter
- PFM3000 3GHz Hand-Held Counter
- 3 Hz to 3000 MHz in two overlapping ranges
- High input sensitivity over the full frequency range
- High impedance measurement up to 125 MHz
- Reciprocal counting technique gives superior resolution
- Period measurement from 3 Hz to 125 MHz

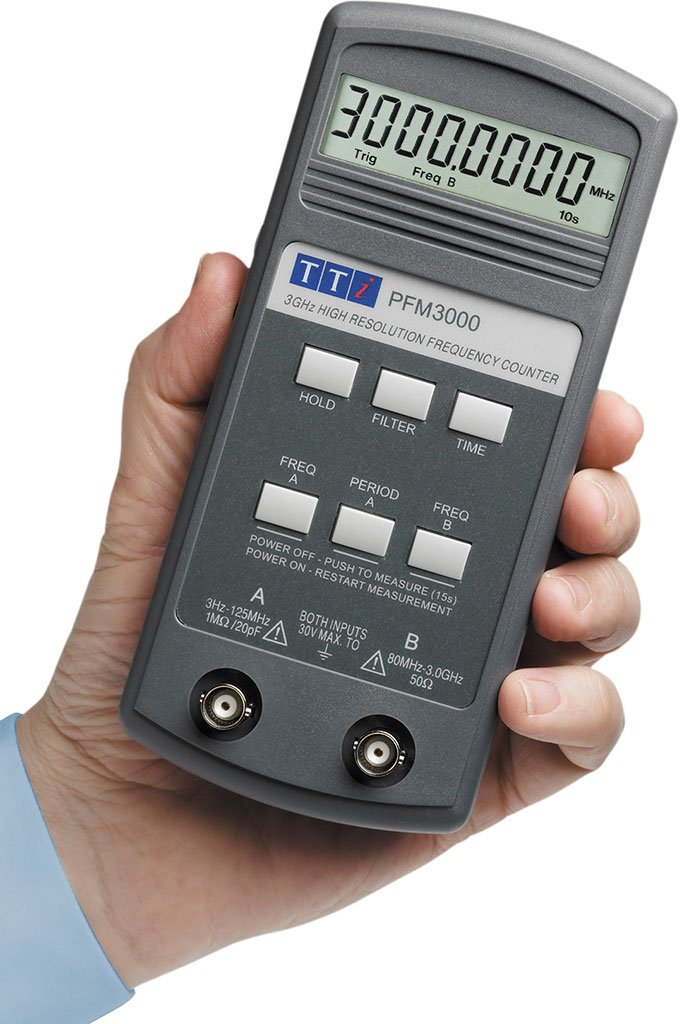

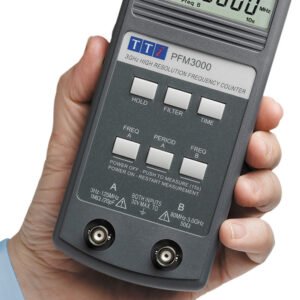

- Battery operation and lightweight, handheld format
- Push-to-measure function with auto power-down
- Large 8+ digit display with full range of annunciators
- Selectable measurement time; display hold function
Guarantee Safe and Secure Payment Checkout
Description
TTi PFM3000
- PFM3000 3GHz Hand-Held Counter
- 3 Hz to 3000 MHz in two overlapping ranges
- High input sensitivity over the full frequency range
- High impedance measurement up to 125 MHz
- Reciprocal counting technique gives superior resolution
3GHz Hand-Held Counter
Wide Frequency Range and High Resolution
The PFM3000 offers high sensitivity frequency measurement from 3Hz to more than 3GHz in two overlapping ranges. Period measurement is also provided from 8ns to 330ms.
The PFM3000 uses a continuous reciprocal measurement technique to provide high resolution at all frequencies with rapid update.It offers high sensitivity across the whole frequency range. A low pass filter can be selected to reduce high frequency signal noise at lower frequencies.
Large and Clear Display

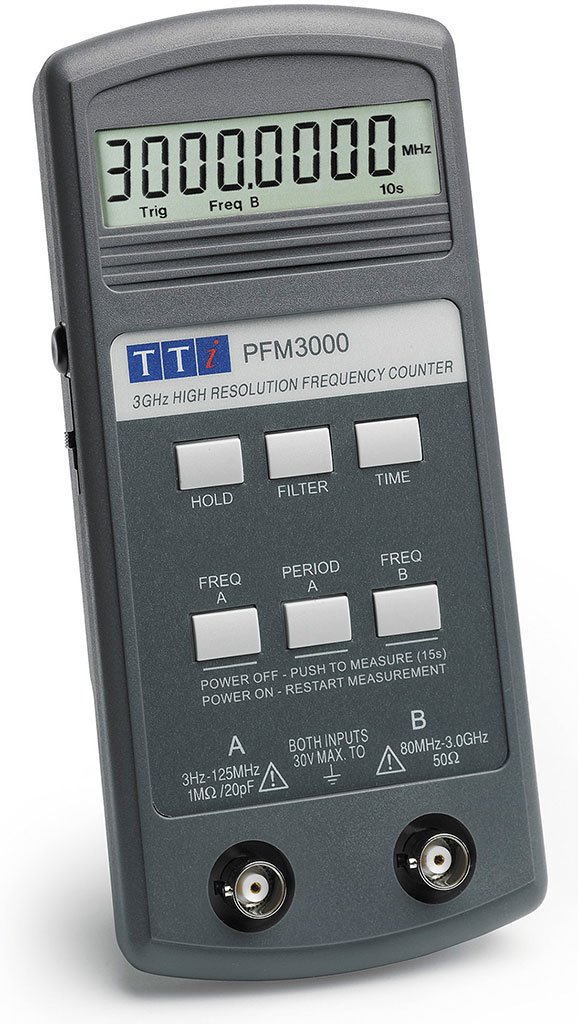

Despite its compact dimensions, the PFM3000 incorporates a large 8 digit LCD. Annunciators are provided for measurement function, measurement time, overflow, trigger activity, low battery, and measurement units.
Bench-Top Use

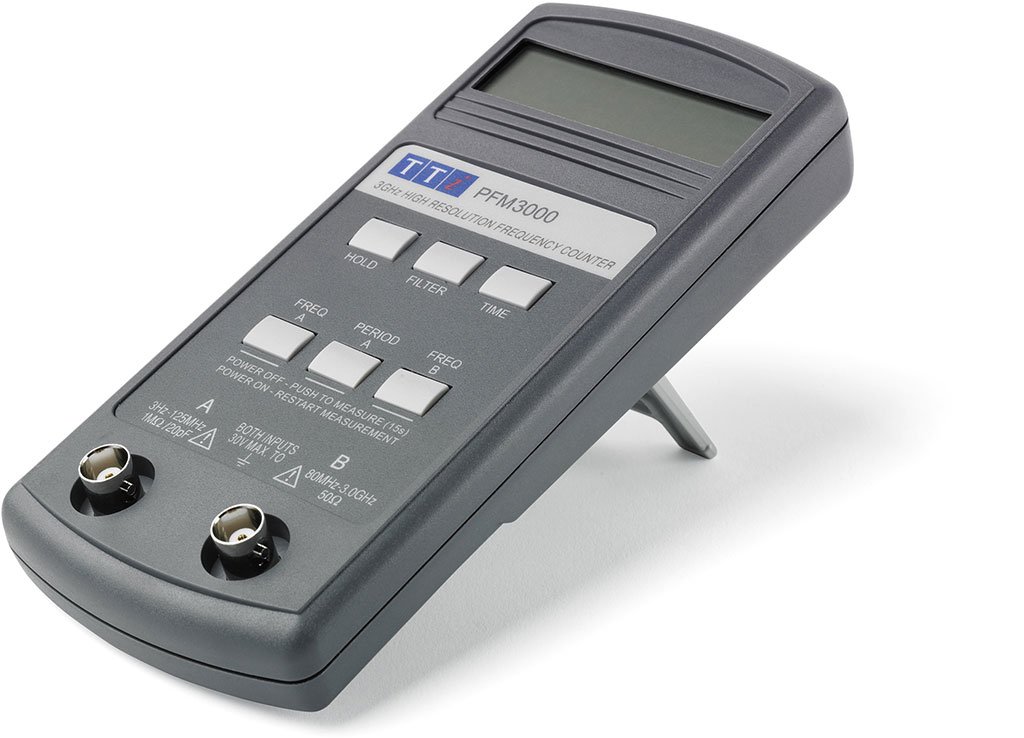

The PFM3000 has the performance needed for many bench-top applications, and its built-in tilt stand sets the display at a convenient angle.
Generators / Counters/Frequency Counters Template | |
|---|---|
| Frequency Range Min | 3 Hz |
| Frequency Range Max | 3 GHz |
| Max Resolution (Hz) | 3 Hz (3000000 uHz) |
| Frequency Functions | Frequency |
| Triggers | Yes |
| Digit Display | 8 |
| Type of Time Base | Crystal Oscillator Frequency: 10MHz Initial Oscillator Adjustment Error: ± 2ppm (closed-case adjustable by user) |
Product General Attributes | |
| Unique Features | 3 Hz to 3000 MHz in two overlapping ranges High input sensitivity over the full frequency range High impedance measurement up to 125 MHz Reciprocal counting technique gives superior resolution Period measurement from 3 Hz to 125 MHz |
| Warranty | 3 YEARS |
| Warranty Details | For all Aim-TTi products purchased after 1st June 2013, the warranty can be extended to three years from the date of purchase. Customers can extend the standard 1 year warranty on their product to three years by registering within 3 months of purchase. Registration is free and will ensure that products purchased from our worldwide distributors are warranted from the purchase date, rather than the date of manufacture, in order to fully utilise the warranty period. Up to five products can be registered simultaneously using the form. |
| Product Weight | 190 GRAMS (0.419 LBS) |
| Product Height | 2.30 IN |
| Product Length | 178 MM (7.01 IN) |
| Product Width | 81 MM (3.19 IN) |
| HTS/Schedule B Number | 9030.40.0000 |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United Kingdom |
| Other Information | Depth:: 30mm |
You must be logged in to post a review.
Manuals/Guides
| Weight | 190 lbs |
|---|---|
| Dimensions | 178 × 81 × 2.3 in |
