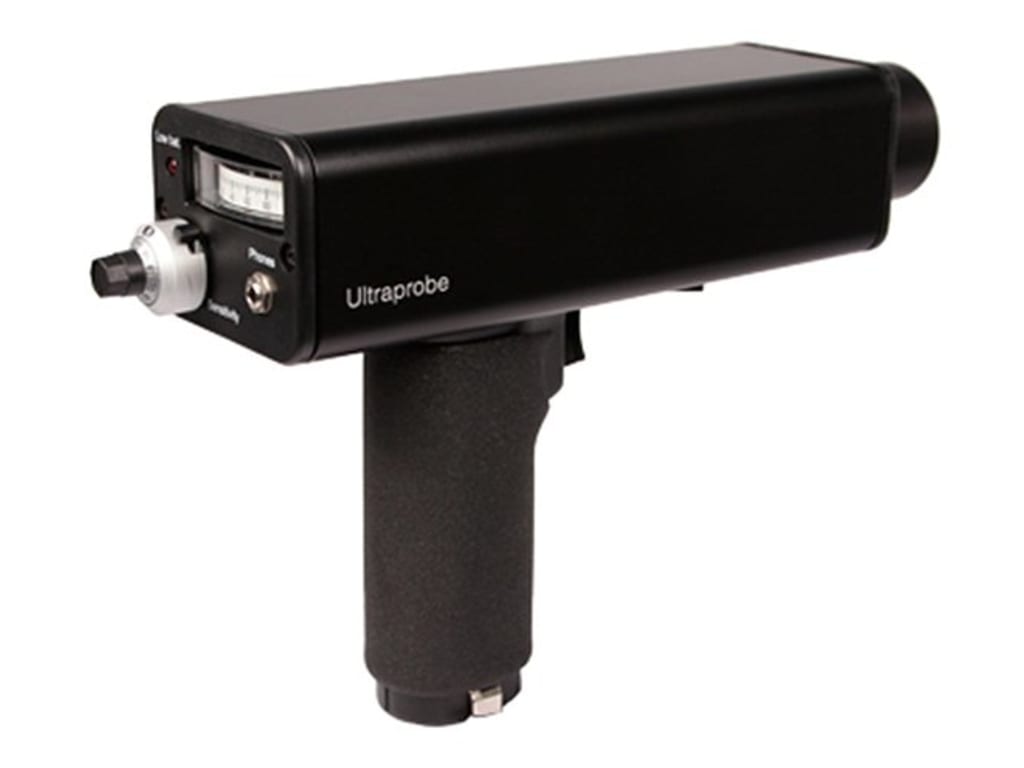

UE Systems UP-2000C – Ultraprobe 2000 Stethoscope Kit

• Stethoscope (contact type) probe for monitoring internal ultrasound such as in bearings, steam traps a,nd valves
• Extension probe kit to increase stethoscope contact range to 78 cm (31 inches)
• Frequency Tuning Adjustment Dial: 20-100kHz with (fixed band) position for ultra-narrow frequency response.
• Bi-Modal Meter Switch for logarithmic and linear meter scale adjustments.
• Optional Auxillary Mode selection for chart recorder output: 0-50mV.

The Ultraprobe® 2000 flexibility and adaptability easily adjust to meet a wide range of testing demands. This intrinsically safe instrument tests for leaks as well as perform mechanical and electrical inspections.

The Ultraprobe® 2000 can be adapted to test practically any problem in operating equipment with such features as:

FREQUENCY TUNING enables a user to tune into problem “sounds” while minimizing background interference.

METER MODE selection adjusts the meter response from a real-time response to an averaging response. This feature allows accurate adjustments for leak detection and for mechanical analysis.

The Ultraprobe® 2000 can heterodyne ultrasound into audible range providing accurate sound reproduction.

Sensitive only to ultrasonic frequencies, the Ultraprobe® 2000 will not respond to the low-frequency noises often associated with most plant equipment. Therefore, the instrument can be effectively utilized in very loud factory environments.
