UE UP2000LRM – Ultraprobe 2000 Long Range Kit

Please, activate Wishlist option to use this widget.
Please, activate Compare option to use this widget.
30 people are viewing this product right now

Original price was: $6,044.50.Current price is: $5,897.07.

Shipping calculated at checkout.
or
Add to quote
Estimated delivery:3 days

Ultraprobe 2000 Analog Ultrasound Detector, Long Range Kit

  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method

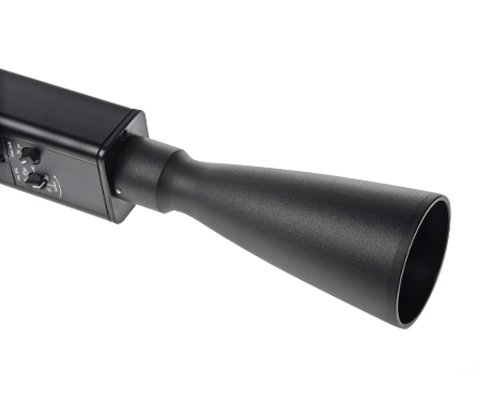

  • Long range module (LRM-2) for more accurate & extended range of detection for leak detection or electrical emissions
  • Adjustable Frequency from 20 kHz to 100 kHz with “fixed band” position for ultra-narrow frequency response
  • Bi-Modal Meter Switch for logarithmic and linear meter scale adjustments
  • Precision 10-turn adjustment dial with numerically calibrated sensitivity increments for finite gain adjustment
  • Deluxe industrial noise reducing headset
SKU: UE Systems UP2000LRM Tags: , Categories:
Pay safely with Visa Pay safely with Master Card Pay safely with PayPal Pay safely with Maestro Tooltip text
Guarantee Safe and Secure Payment Checkout

Description

UE UP2000LRM

  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum, and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps, and valves
  • Extension rod set to increase stethoscope contact range to 31 inches (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method

Ultraprobe 2000 Long Range Kit

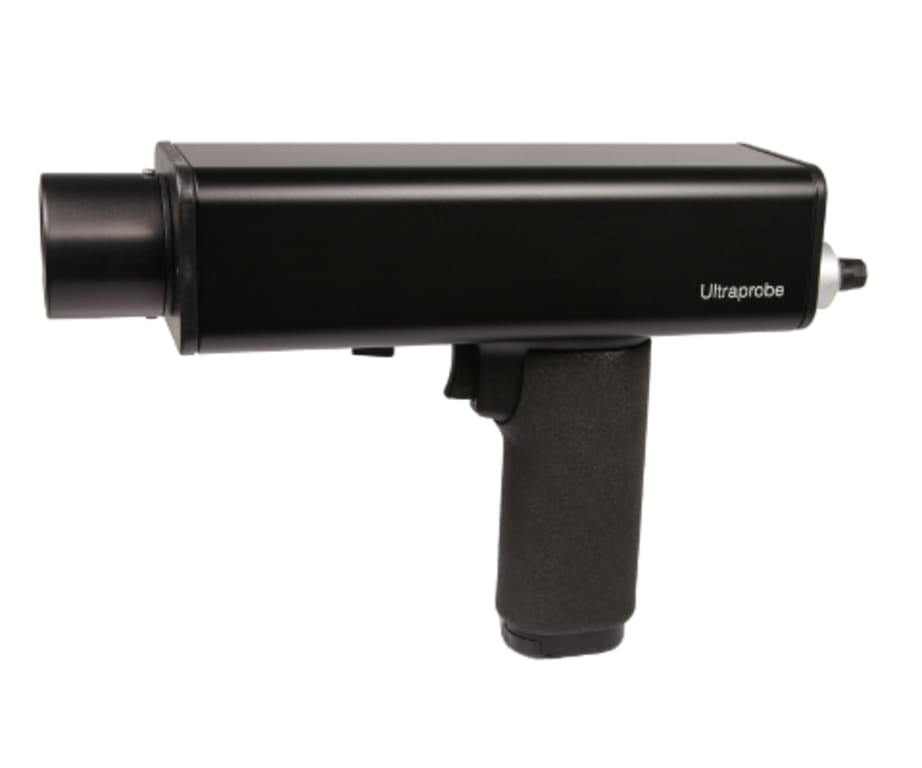

The Ultraprobe 2000 offers flexibility and adaptability and easily adjusts to meet a wide range of testing demands. This intrinsically safe instrument tests for leaks as well as perform mechanical and electrical inspections. The Ultraprobe 2000 is a valuable tool for ultrasonic troubleshooting and predictive maintenance. The instrument provides testing capabilities ranging from leak detection to mechanical analysis. It is a testing laboratory that fits in the palm of your hand.

The Ultraprobe 2000 includes standards:

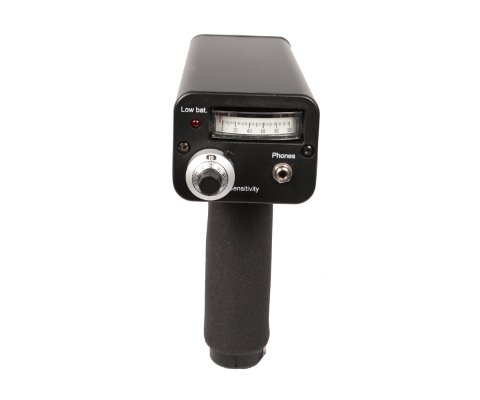

  • Ultraprobe housing with a metered pistol grip, ballistic meter, frequency tuning dial, 10 turn potentiometer, numerically calibrated sensitivity dial with selection lock, bi-modal meter selector switch, battery, battery indicator light, battery recharger receptacle, and headset receptacle
  • Deluxe industrial noise-reducing headset
  • Battery recharge kit for main housing and warble tone generator
  • Zero Halliburton aluminum carrying case

The UP2000LRM Utlraprobe 2000 Long Range Kit configuration includes:

  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum, and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps, and valves
  • Extension rod set to increase stethoscope contact range to 31 inches (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method
  • Long range module (LRM-2) for a more accurate & extended range of detection for leak detection or electrical emissions

The Ultraprobe 2000 can be adapted to test practically any problem in operating equipment with features such as:

  • FREQUENCY TUNING enables a user to tune into problem “sounds” while minimizing background interference.
  • METER MODE selection adjusts the meter response from a real-time response to an averaging response. This feature allows accurate adjustments for leak detection and for mechanical analysis.
  • The Ultraprobe 2000 can heterodyne ultrasound into audible range providing accurate sound reproduction.

Sensitive only to ultrasonic frequencies, the Ultraprobe 2000 will not respond to the low-frequency noises often associated with most plant equipment. Therefore, the instrument can be effectively utilized in very loud factory environments.

Leakage Detectors/Ultrasonic Leak Detectors Template

Medium DetectedAir, Gas, Other, Steam
Display TypeAnalog
Tone GeneratorYes
HeadphonesYes
Extension ProbeYes
Peak HoldNo

Product General Attributes

Warranty1 YEARS
Warranty Details1 year parts/labor standard; 5 years with completed warranty registration card
Safety ApprovalCE
Battery TypeNimH
