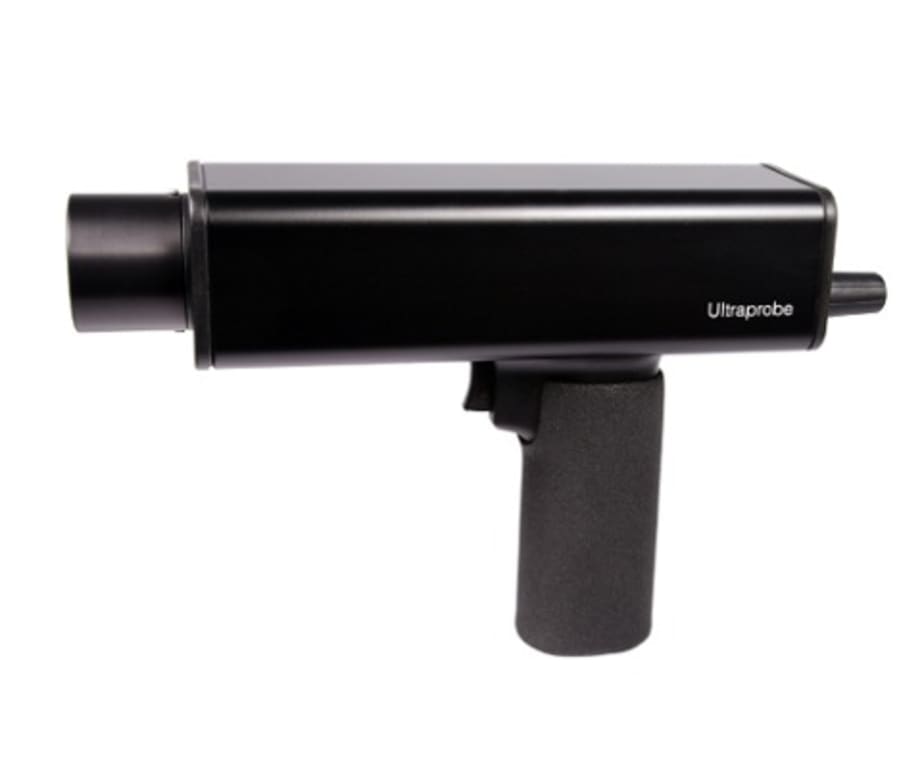

UE UP9000S – Ultraprobe 9000 Scanner Kit, Digital Ultrasonic Inspection System

• Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum, and electrical emissions
• Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
• Adjustable Frequency from 20 kHz to 100 kHz (tunable in 1 kHz increments)
• The digital display panel offers calibrated decibel readout and a 16-segment bar graph
• Instantly registers sound intensity changes and simultaneously registers peak hold as you scan

The Ultraprobe 9000 is a digital ultrasonic inspection, information, storage, and retrieval system that’s versatile and easy to use (most operators learn within 15 minutes!). This Ultraprobe will help move you through inspections quickly. Whether used for troubleshooting or a pre-planned route, data is easily viewed on the display panel and stored with the push of a button. The Ultraprobe 9000 includes the following standard:

• ULTRA PROBE pistol grip housing consists of the display panel, the “spin & click” controls for volume/frequency adjustment, data entry and data storage, the headphone jack, battery, I/O port, trigger on/off switch, and module receptacle.
• Deluxe industrial noise-reducing headset
• Data cable I/O to USB
• Battery recharge kit
• Zero Halliburton aluminum carrying case
• Comprehensive instruction manual
• License & update free, including DMS software

The UP9000S Utlraprobe 9000 Scanner Kit configuration includes:

• Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum, and electrical emissions
• Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound

This Ultraprobe will help move you through inspections quickly and easily -most operators learn within 15 minutes.

Whether used for troubleshooting or a pre-planned route, data is easily viewed on the display panel and stored with the push of a button. The easy-to-read display panel offers calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold as you scan.

• Establish a bearing route to identify early bearing failure & lubrication problems
• Find your leaks & report the cost per leak with DMS reporting
• Inspect for faulty steam traps
• Inspect electrical systems for discharge problems

On-board data logging utilizing Ultratrend DMS

• Manage routes
• Up & download via USB connection
• Multiple data views
• History tables/spreadsheets
• Trend charts
• Export database & report documents to Excel
