UEi 510KIT – Condensing Unit Installation and Maintenance Test Kit
17 people are viewing this product right now
Original price was: $1,327.04.$1,127.98Current price is: $1,127.98.
Shipping calculated at checkout.
Estimated delivery:5 days
CONDENSING UNIT INSTALL KIT
- Includes TRMS clamp meter, refrigerant leak detector, wireless refrigeration analyzer, (x2) wireless hygrometers, (x2) wireless pressure probes, (x2) wireless temp. pipe clamps, (x1) wireless vacuum gauge, (x1) wireless outdoor temp probe, UEi Tool Backpack
- 750/1000V AC/DC, 600A AC/DC TRMS Clamp meter
- DL579 Safety rating CATIV 300V / CATIII 600V
- AC/DC Microamps
- Temperature split and psychrometric calculations
- A2L certified refrigerant leak detector
- Digital numeric leak size indicator
- A2L Compatible Smart refrigeration probes deluxe kit with vacuum gauge
- HUB8 Kit has wireless distance of 350ft pending environment
- 1-year warranty on DL579 and 2-year warranty on RLD15B
Guarantee Safe and Secure Payment Checkout
Description
UEi 510KIT
- Includes TRMS clamp meter, refrigerant leak detector, wireless refrigeration analyzer, (x2) wireless hygrometers, (x2) wireless pressure probes, (x2) wireless temp. pipe clamps, (x1) wireless vacuum gauge, (x1) wireless outdoor temp probe, UEi Tool Backpack
- 750/1000V AC/DC, 600A AC/DC TRMS Clamp meter
- DL579 Safety rating CATIV 300V / CATIII 600V
- AC/DC Microamps
- Temperature split and psychrometric calculations
Condensing Unit Installation and Maintenance Test Kit
This Kit provides the recommended test instruments required by condensing unit start up manuals for proper installation and maintenance. Most equipment warranties require initial install readings to be documented upon installation.

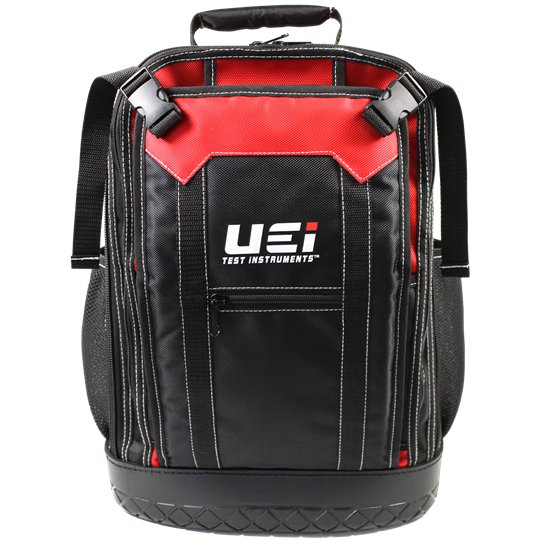

510KIT is packed in this UEi Tool Backpack. Built rugged, waterproof base, two compartments with inner pocket options and includes D-clip.
Kit Includes:
- True RMS Clamp Meter (DL579)
- Refrigerant Leak Detector (RLD15B)
- Wireless Refrigeration Analyzer (HUB8)
- 2 Wireless Hygrometers
- 2 Wireless Pressure Probes
- 2 Wireless Temp. Pipe Clamps
- 1 Wireless Vacuum Gauge
- 1 Wireless Outdoor Temp. Probe
- UEi Tool Backpack (AC550)

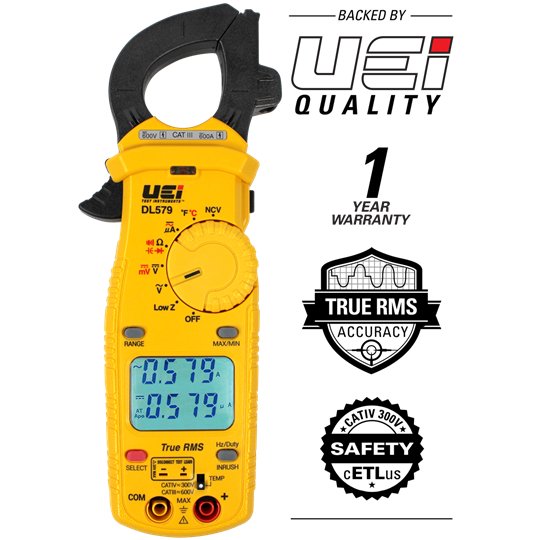

DL579 600A True-RMS Dual Display HVAC/R Clamp Meter
- 750/1000V AC/DC, 600A AC/DC
- AC/DC Microamps
- Low Z (impedance)
- Resistance
- Continuity/Diode Test
- Frequency/Duty Cycle
- Easy access battery cover latches
- Test Lead Storage
- 1-Year limited warranty

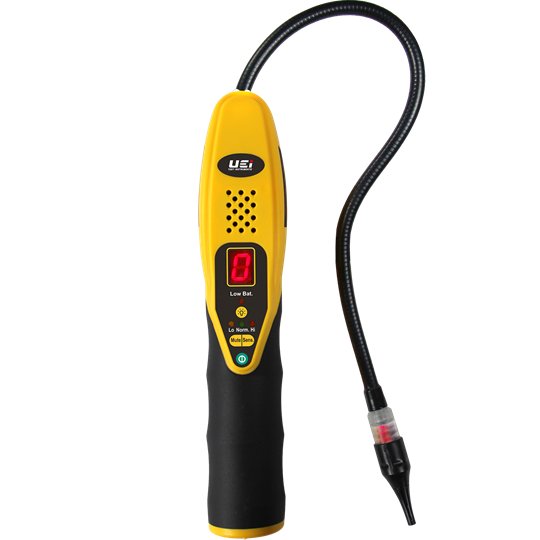

RLD15B Refrigerant Leak Detector
- A2L Certified
- Digital numeric leak size indicator
- 3 Sensitivity levels
- Visual LED leak alarm
- Auto calibration & ambient level reset
- Splash resistant
- Worklight
- 2-Year limited warranty

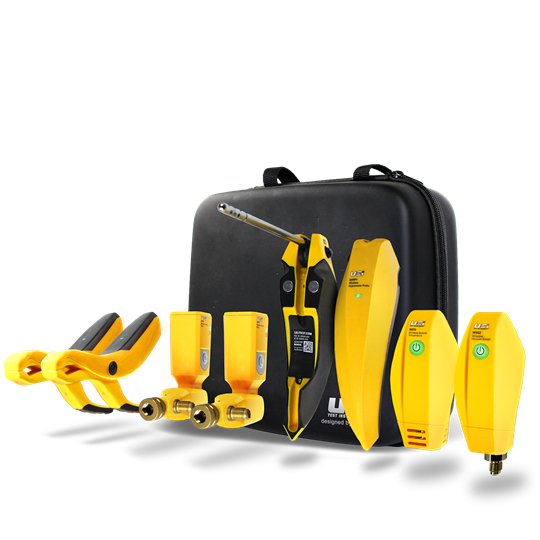

HUB8 Smart Refrigeration Probes Deluxe Kit w/ Vacuum Gauge
- System refrigerant charging calculations
- Temperature split and psychrometric calculations
- Dual mode vacuum screen for evacuation & rise tests
- Real time target superheat calculation
- Wireless distance of 350ft pending environment
- Easy drag-and-drop probe connections
Wireless Hygrometer – Magnets secure Hygrometer to plenum and the position lock holds probe in optimum air stream path.
Wireless Pressure Probe – Pass thru port hook up, no hoses or adapters needed. 180° articulation allows access in tight spaces.
Wireless Vacuum Gauge Probe – Instant warm up and response time with an oil contamination and sensor failure detection.
Wireless Pipe Clamp – Narrow head for tight spaces with a thermally isolated sensor for greater accuracy.
Outdoor Temperature Probe – Magnetic hanger allows for temperature
measurements in direct air stream.
HVAC Equipment and Instruments/HVAC/R Measurements Template | |
|---|---|
| Style (HVAC/R) | Clamp-On |
| Combustion Analysis | No |
| Measurement Types (HVAC/R) | Current, Frequency, Resistance |
| Diode Testing | Yes |
| Continuity Test | Yes |
| CAT Rating | IV |
| CAT Voltage Rating (V) | 300V |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | DL579 has 1-year limited warranty. RLD15B has 2-year limited warranty. |
| Safety Approval | CE, FCC, UL |
| Interfaces I/O | Other |
| IP Rating | IP42 |
| Product Weight | 14.75 LBS |
| Product Height | 20 IN |
| Product Length | 12 IN |
| Product Width | 14 IN |
| Battery Type | AA, AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
You must be logged in to post a review.
| Weight | 14.75 lbs |
|---|---|
| Dimensions | 12 × 14 × 20 in |
