UEi 522KIT – Oil Burner & Boiler Installation & Maintenance Test Kit
13 people are viewing this product right now
Original price was: $1,737.06.$1,476.50Current price is: $1,476.50.
Shipping calculated at checkout.
Estimated delivery:5 days
OIL BURNER and BOILER INSTALL KIT
- Kit includes Combustion Analyzer (C161OIL), True RMS Clamp Meter (DL579), Combustible Leak Detector (CD100A), Static Pressure Manometer (EM201SPKIT), Differential Folding Thermometer (PDT655), UEi Tool Backpack (AC550)
- Backed by UEi Service+
- C1610IL features up to 10-year warranty with annual recertification
- Designed for gas and oil-fired boilers and furnaces
- 600A True-RMS Dual Display HVAC/R Clamp Meter,
- Senses leading combustible (Natural Gas, Propane, etc.), non-combustible and toxic gases
- Detects propane-based R290A and R600A, also known as Natural Refrigerants or Not-In-Kind
- ± 80 inWC
- Measures static pressure
- Large easy-to-read backlit display
Guarantee Safe and Secure Payment Checkout
Description
UEi 522KIT
- Kit for oil burner and boiler applications
- Kit includes Combustion Analyzer (C161OIL), True RMS Clamp Meter (DL579), Combustible Leak Detector (CD100A), Static Pressure Manometer (EM201SPKIT), Differential Folding Thermometer (PDT655), Smoke Pump Test Kit (SPT1)UEi Tool Backpack (AC550)
- C1610IL Residential combustion analyzer for gas and oil-fired appliances has a NOx filtered CO sensor
- C1610IL features up to 10-year warranty with annual recertification
- 600A True-RMS Dual Display HVAC/R Clamp Meter has Low Z (impedance), resistance, continuity/diode test, frequency/duty cycle

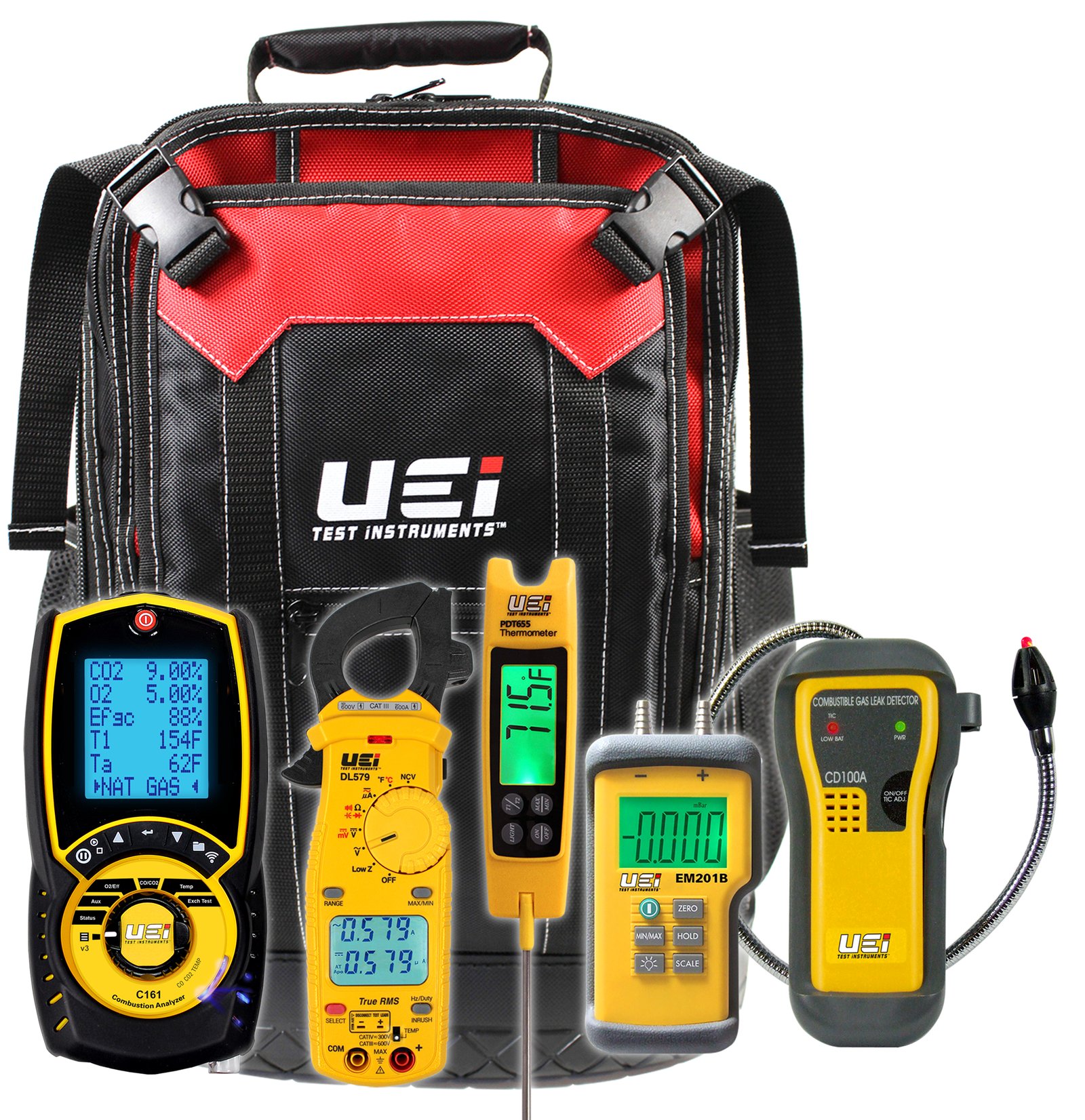

Oil Burner & Boiler Installation & Maintenance Test Kit
This Kit provides the recommended test instruments required by Oil Burner & Boiler start up manuals for proper installation and maintenance. Most equipment warranties require initial install readings to be documented upon installation.
522KIT is packed in this UEi Tool Backpack. Built rugged, waterproof base, two compartments with inner pocket options and includes D-clip.
Kit includes:
- Combustion Analyzer (C161OIL)
- True RMS Clamp Meter (DL579)
- Combustible Leak Detector (CD100A)
- Static Pressure Manometer (EM201SPKIT)
- Differential Folding Thermometer (PDT655)
- Smoke Pump Test Kit (SPT1)
- UEi Tool Backpack (AC550)

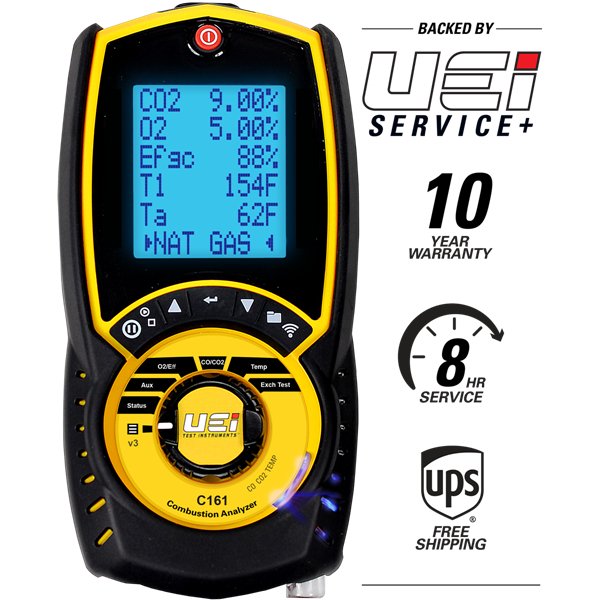

C161OIL Residential Combustion Analyzer for Gas & Oil-Fired Appliances
- Backed by UEi Service+
- Up to 10-Year warranty with annual recertification
- Large 6-line backlit display
- Designed for gas and oil-fired boilers and furnaces
- NOx filtered CO sensor

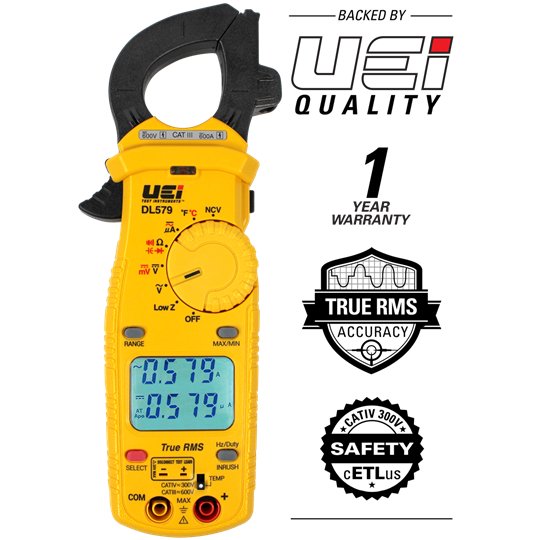

DL579 600A True-RMS Dual Display HVAC/R Clamp Meter
- 750/1000V AC/DC, 600A AC/DC
- AC/DC Microamps
- Low Z (impedance)
- Resistance
- Continuity/Diode Test
- Frequency/Duty Cycle
- Easy access battery cover latches
- Test Lead Storage
- 1-Year limited warranty
EM201SPKIT Static Pressure Manometer Kit
- ±60 Inches Water Column
- Differential Pressure
- High Resolution: 0.001 InWC -9.999 to +9.999 InWC
- Standard Resolution: 0.01 InWC for < -10 or > +10 InWC
- Dynamic Min/Max value capture
- 3-Year limited warranty
PDT655 Differential Folding Pocket Thermometer
- Large easy-to-read backlit display
- Large easy to use buttons
- Measures T1, T2, T1-T2
- Min/Max
- Built-in magnet
- 1-Year limited warranty

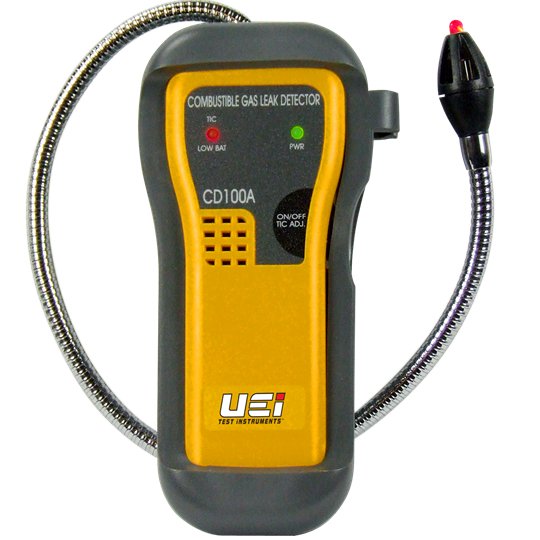

CD100A Combustible Leak Detector
- Senses leading combustible (Natural Gas, Propane, etc), non-combustible and toxic gases
- < 50 ppm methane sensitivity
- Detects Propane-Based Refrigerants R290A and R600. Known as “Natural Refrigerants” or “Not in Kind”.
- Audio and visual tic rate, fully adjustable
- 1-Year limited warranty
HVAC Equipment and Instruments/HVAC/R Measurements Template | |
|---|---|
| Style (HVAC/R) | Clamp-On |
| Combustion Analysis | Yes |
| Measurement Types (HVAC/R) | Capacitance, Current, Frequency, Resistance, Temperature |
| Diode Testing | Yes |
| Continuity Test | Yes |
| CAT Rating | III |
| CAT Voltage Rating (V) | 600V |
Product General Attributes | |
| Safety Approval | CE, FCC, RoHS, UL |
| Interfaces I/O | Other |
| IP Rating | IP42 |
| Product Weight | 13.13 LBS |
| Product Height | 20 IN |
| Product Length | 12 IN |
| Product Width | 14 IN |
| Battery Type | 9v, AA, CR2032, Other |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United Kingdom |
You must be logged in to post a review.
| Weight | 13.13 lbs |
|---|---|
| Dimensions | 12 × 14 × 20 in |
