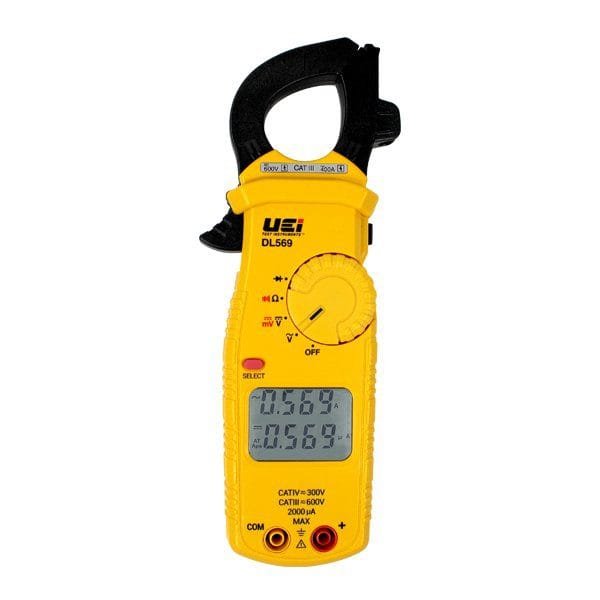

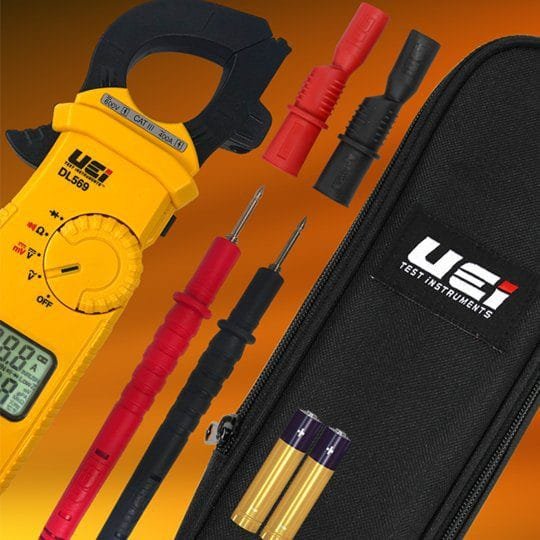

UEi DL569 – Dual Display Clamp Meter with Test Lead Storage (400A)

• AC Volts: 750 VAC
• DC Volts: 1000 VAC
• AC current (amps): 400A AC
• Resistance (Ohms): 40 kΩ
• AC micro volts: 400mV

Measure voltage, circuit continuity, resistance, and diode malfunctions. Check system boards and live wires.

A. Clamp: Measure inductive AC current. Opens to 1.25” (32.0mm)

B. Conductor Alignment Marks: Use to aid the visual alignment of a conductor when measuring inductive amperage. The greatest accuracy is achieved when the conductor inside the clamp is centered at the intersection of these marks.

C. Category Max Indicator: Maximum CAT Rating for clamp jaw.

D. Clamp Lever: Opens and closes current clamp jaw.

E. Rotary Selector Dial: Set Rotary Selector Dial’s desired function

F. SELECT Button: Press select DCmV or DCV on Voltage setting; to activate Ohms, Continuity on Ohms/Continuity setting

G. Category Max Indicator: Maximum CAT Rating for input jacks.

H. Wire Separation Tab: Use to isolate an individual wire from a bundle for testing.

I. Test Lead Holder

J. Hand Guide: Used as a point of reference for the operator’s safety

K. Display: Amps (AC/DC) reading will always display on the upper display

L. Test Lead Input Jacks: Multifunction and Positive input jacks. Multifunction input port used for measuring: AC or DC volts, resistance, continuity, diode.

M. Bracket for optional magnetic holder strap (sold separately)

N. Battery Cover: Easy access for replacing batteries without breaking the calibration seal.

O. Battery Compartment Latches

P. Serial Number

• Rotate Battery Compartment Latches to open position
• Remove battery cover
• Replace the old batteries with 2 new (AAA) batteries
• Replace the battery cover
• Rotate Battery Compartment Latches to lock
