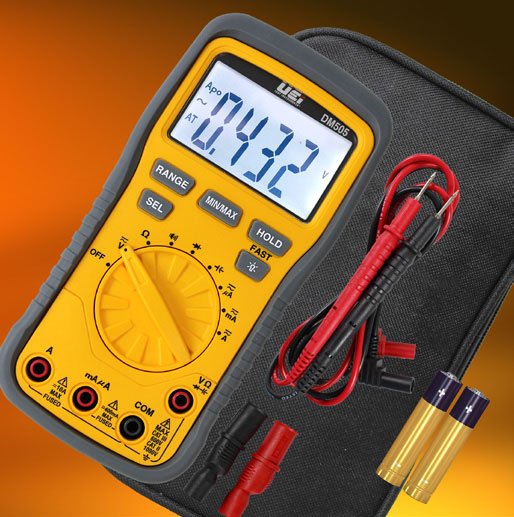

UEi DM505 – 1000V Digital Multimeter, CATIII 600V/CATII 1000V

• High resolution backlit display
• Auto/Manual ranging
• Auto power off
• 1 ms Fast response Min/Max
• 6 ft drop protection
• 2-Year limited warranty

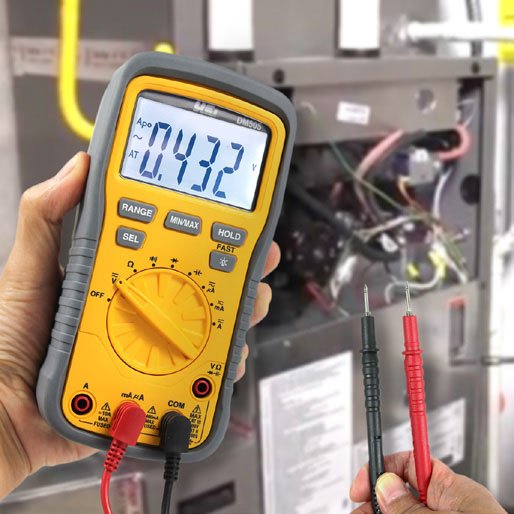

The UEi DM505 Digital Multimeter 1000V is designed for trade professionals who are familiar with the hazards of their trade. Observe all recommended safety procedures that include proper lockout utilization and use of personal protective equipment that includes safety glasses, gloves and flame resistant clothing.

Higher voltages and currents require greater awareness of physical safety hazards. Before connecting the test leads; turn off power to the circuit under test, set meter to the desired function and range; connect the test leads to the meter first, then connect to the circuit under test. Reapply power. If an erroneous reading is observed, disconnect power immediately and recheck all settings and connections.

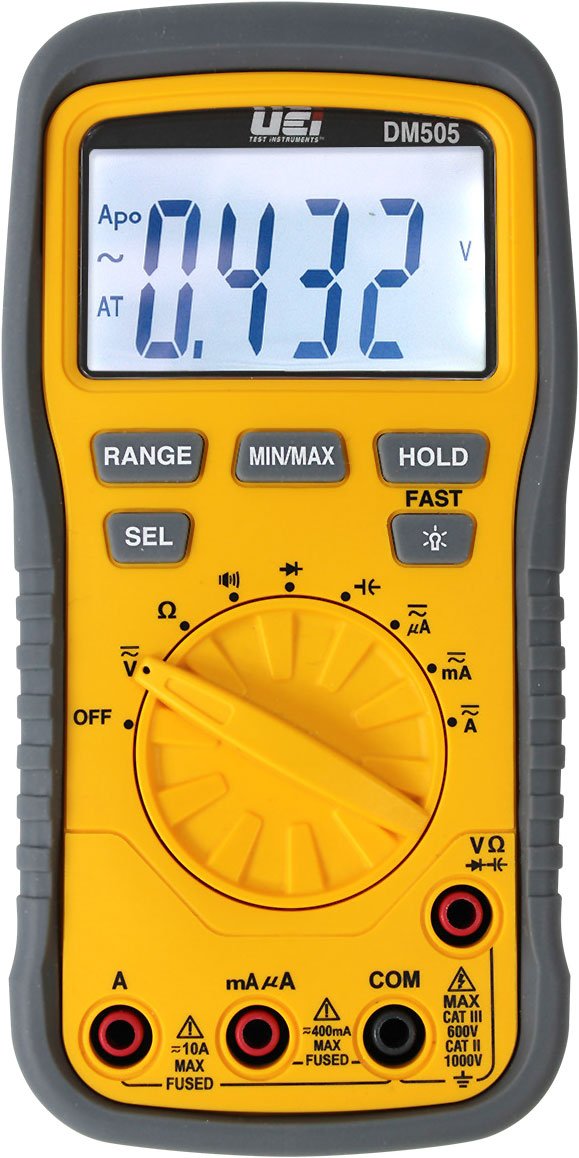

A. Apo: Auto power off after 30 minutes of use. Press and hold the HOLD button while turning the meter on to disable Apo.

B. Digital Backlit Display

C. Range Button:

Press to change from auto ranging to manual ranging.

Press repeatedly to select proper range.

Press and hold to return to auto range (AT will be displayed on screen).

D. Min/Max Button:

Press to enter MAX/MIN mode.

In the V, μA, mA or Amps functions, either select AC/DC or change to manual ranging before pressing this button to enter MAX/MIN mode.

Press repeatedly to alternate between Maximum and Minimum readings.

Press and hold to return to live readings

E. Select Button: Press to select AC,DC or Auto Selection in the following functions: Voltage, μA, mA, Amps.

F. Function Dial: Turns on meter and is used to select the function.

G. Category Max Indicator: Maximum CAT Rating for fused input jacks.

• Multifunction input port used for measuring: AC or DC volts, resistance, continuity, diode, Amps, mA, μA.
• Use CATIII test leads or higher.

H. Hold/Fast Button:

• Press to hold the reading on the display. Press again to return to live reading.
• Press to enter Fast MAX/MIN mode in MAX/MIN mode.
• Press again to return to normal MAX/MIN mode.

I. Back Light Button: Press to on back light. Press again to turn off. Back light duration is 1 minute.

J. Recess for magnetic hanger

K. Test Lead Holders

L. Protective Rubber Boot

M. Battery Cover (under protective rubber boot)

N. Kick Stand

O. Serial Number (under kick stand)
