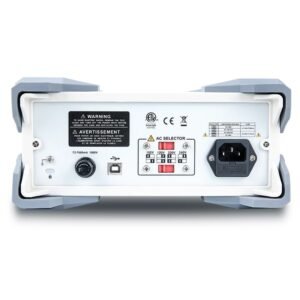

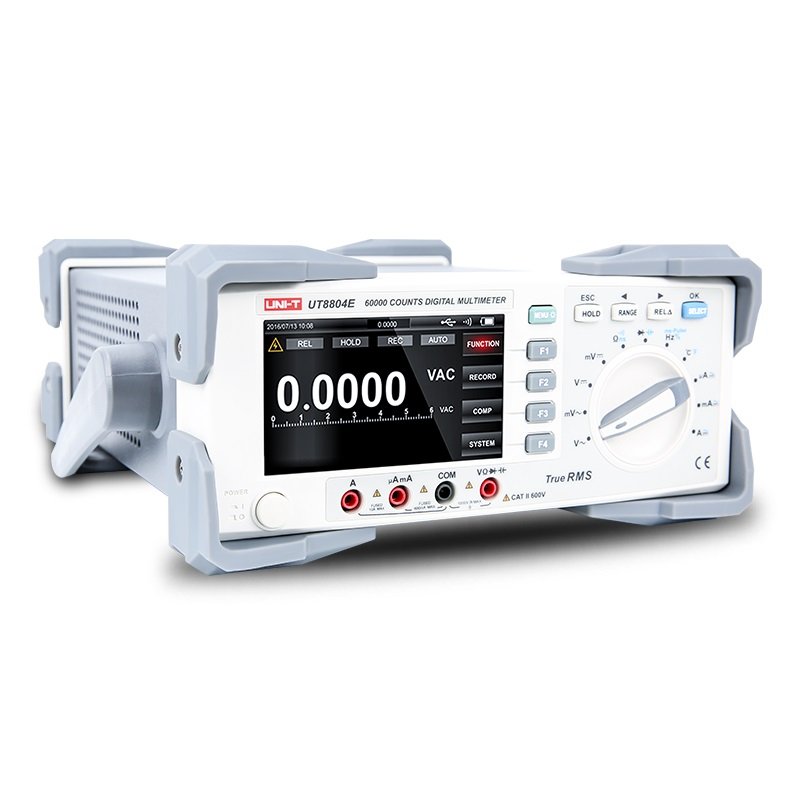

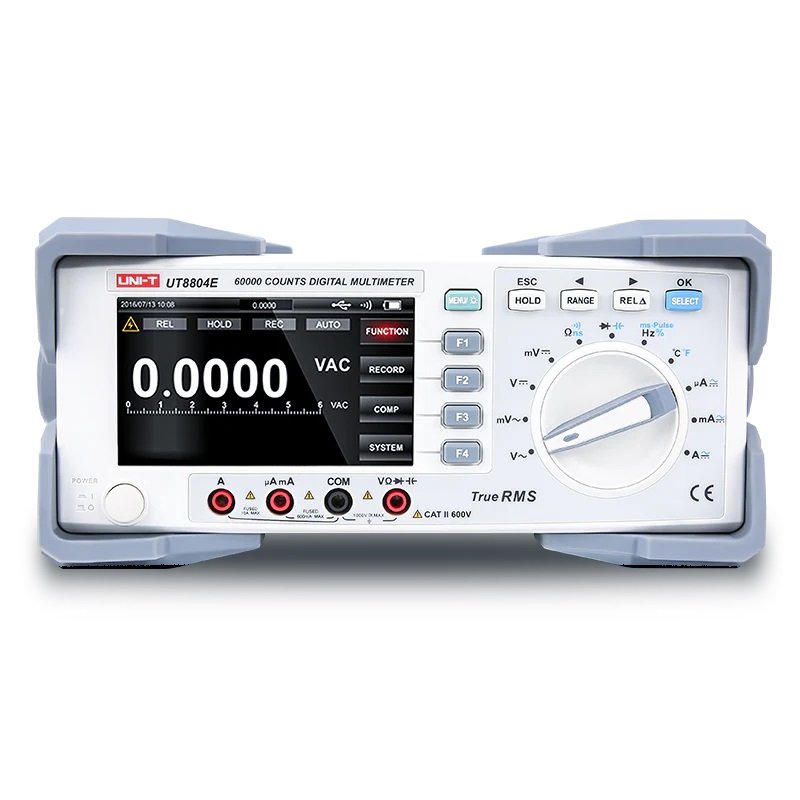

UNI-T UT8804E – 4.8 Digit Advanced-Series True RMS Benchtop Digital Multimeter

• True RMS Benchtop Digital Multimeter, auto/manual range, 60000 display counts, data saving/recording
• AC voltage range (True RMS): 60mV – 1000V
• DC voltage range: 60mV – 1000V
• AC current range (True RMS): 600uA – 10A
• DC current range: 600uA – 10A

The UNI-T UT8804E is an auto/manual range, AC powered, True RMS, benchtop digital multimeter that features 60000 display counts, a large backlit 4.3in TFT LCD, and full scale overload protection. The UT8804E is a comprehensive universal test instruments that measures AC/DC Voltage and Current, resistance, frequency, capacitance, conductance, diodes, continuity, temperature, frequency, duty ratio, pulse width, and other items, meeting user needs with multi-function, high precision and automation.

The UNI-T UT8804E digital multimeter can display 4.8 digits (60000) to provide a high precision and accurate results. The digitized analog display bar enhances the intuitiveness of viewing measurement results. The UNI-T UT8804E includes a diode test function that allows you to determine the on-voltage and diode polarity. The multimeter has a maximum and minimum value statistics function to aid in identifying peak and trough values during batch testing or multiple measurements. The user can customize measurements by selecting from multiple test parameters for each test items.

The Uni-T UT8804E has a recording function, capturing historical data, presenting it in statistical and trend charts. During recording, the user will have real-time access to critical information, including the number of samples, recording duration, extreme values, and average values. Easily analyze recorded data with full-time statistical information and an intuitive trend chart. This feature allows the user to identify data abnormalities within specific time slots and obtain values at specific time points by adjusting the cursor on the trend chart. Save up to 20k data sets. The UT8804E has a ‘REL’ button, that can set a reference value for measurements, allowing calculation of results relative to the reference value. Connect the Uni-T UT8804E to a PC (via USB port) and install the driver software (included) for the ultimate convenience. You’ll gain access to remote viewing, allowing you to monitor historical data and trend charts in real-time.
