UNI-T UT8805E – 5.5 Digit Performance-Series True RMS Benchtop Digital Multimeter
29 people are viewing this product right now
Original price was: $489.00.$391.20Current price is: $391.20.
Shipping calculated at checkout.
Estimated delivery:3 days
5.5 Digit Performance-Series Bench Digital Multimeter
- True RMS Benchtop Digital Multimeter, auto-ranging, 200000 display counts, 1GB NAND Flash Storage
- Measures resistance, capacitance, temp, continuity, frequency and cycle, diode, more
- Histogram, trend chart, bar chart, mathematical statistics, dual display, hold, dBm, configuration
- AC voltage range (True RMS): 200mV – 750V
- DC voltage range: 200mV – 1000V
- AC current range (True RMS): 2mA – 10A
- DC current range: 200uA – 10A
- 1GB NAND flash storage; 10k reading record and storage
- Interfaces: USB host, USB device, LAN, RS-232C
- Temperature measurement with built-in thermocouple cold junction compensation
Guarantee Safe and Secure Payment Checkout
Description
UNI-T UT8805E
- True RMS Benchtop Digital Multimeter, auto-ranging, 200000 display counts, 1GB NAND Flash Storage
- AC voltage range (True RMS): 200mV – 750V
- DC voltage range: 200mV – 1000V
- AC current range (True RMS): 2mA – 10A
- DC current range: 200uA – 10A
5.5 Digit Performance-Series True RMS Benchtop Digital Multimeter
The Uni-T UT8805E benchtop digital multimeter boasts a 5.5-digit display with a remarkable 200000-count resolution, showcased on its 4.3-inch TFT LCD screen. The dual display function allows the user to simultaneously measure its frequency. Seamlessly toggle between displaying voltage or current alongside the frequency value, enhancing the ability to diagnose complex circuits. The Uni-T UT8805E benchtop digital multimeter offers four distinct display modes to cater to various measurement scenarios – Number, Bar Graph, Trend Graph, or Histogram modes to visualize data in a meaningful way.
The UT8805E features a range of mathematical operations and reading statistics built into the unit including maximum, minimum, average value, standard deviation, pass/fail, dBm, dB, relative measurement, histogram, trend chart, bar chart. The Uni-T UT8805E benchtop digital multimeter provides flexible data storage solutions with its built-in 1GB NAND Flash and USB drive capabilities to save crucial measurement data and configurations. Additionally, the instrument offers a range of interface options, including USB, GPIB (optional), RS-232C, LAN, USB-TMC, IEEE 488.2 standard, VXI11, and SCPI language compatibility.
5.5 Digit Performance-Series True RMS Benchtop Digital Multimeter Features:
- 4.3-inch 480 x 272 TFT-LCD Dual Display
- 200000 count resolution
- Up to 5k reading/s reading speed
- True-RMS AC voltage/current measurement
- 1GB NAND Flash storage, mass storage system and test data
- History data record and storage
- Temp measurement with built-in thermocouple cold junction compensation
- Supports standard SCPI remote control command and software of upper computer, the latest mainstream multimeter command set compatible
- Dual display, Chinese & English menu and built-in help system

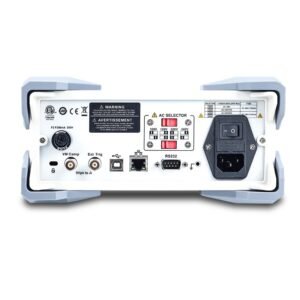

- Configuration interfaces: USB Device, USB Host, LAN, GPIB (optional), RS-232C
- Settings and the measured data can be record and read by VXI11, USBTMC and U-disk
Multimeters Template | |
|---|---|
| Style | Bench |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 750 V |
| Resolution AC Volts | 200 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 200 mV |
| Maximum Current AC | 10 A |
| Minimum Current AC | 2 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 200 uA (0.2 mA) |
| Basic Accuracy V DC | 0.015% |
| # Digit Display | 5.5 |
| Counts | 200000 . |
| Manual/Autoranging | Auto-ranging |
| Decibels | Yes |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | II |
| CAT Voltage | 300 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | Yes |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
Product General Attributes | |
| Safety Approval | CE, ETL, RoHS |
| Calibration Included | Factory Calibration |
