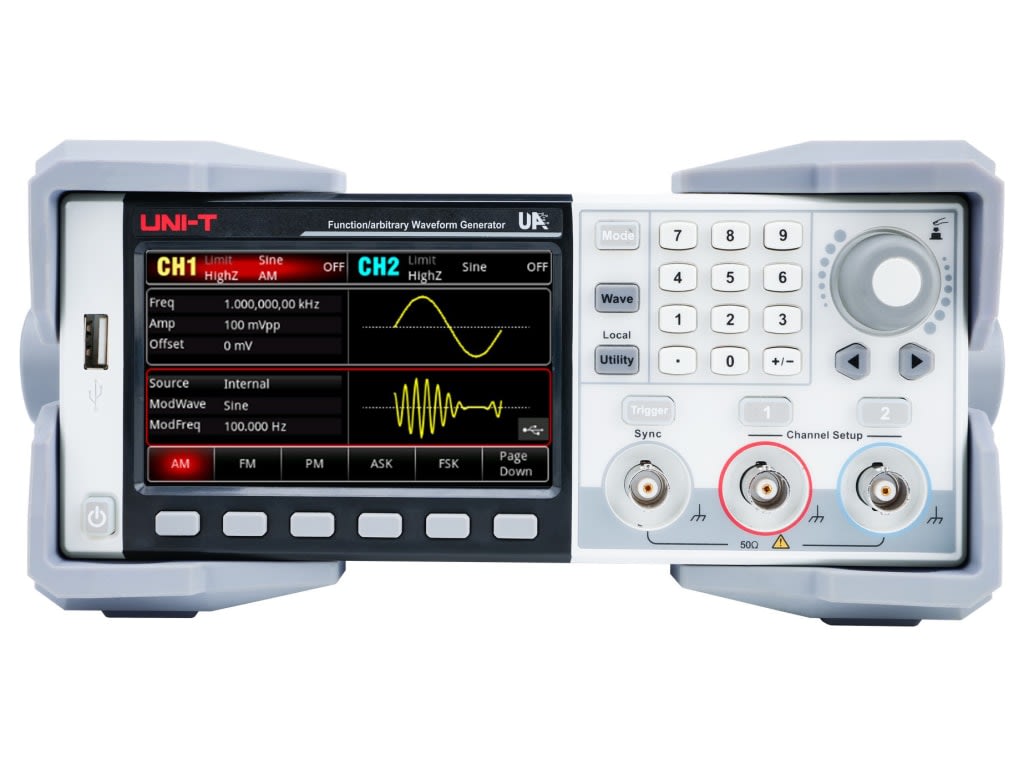

UNI-T UTG2082X – Advanced-Series Arbitrary Waveform Generator (2 Channels / 80MHz)
42 people are viewing this product right now
$647.90
Shipping calculated at checkout.
Estimated delivery:5 days
80MHz 2Ch Advanced-Series Arbitrary Waveform Generator
- Two channels
- 80 MHz maximum frequency
- 16-bit vertical resolution
- Arbitrary waveform length up to 64 Mpts
- 625 MSa/s sample rate
- Modulation functions: AM, PM, FM, DSB-AM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, SUM
- Harmonic order: 2 – 16
- Standard interfaces: USB Host, USB Device, LAN
- Sweep frequency and burst output
- 4.3-inch TFT LCD capacitive touch display screen
Guarantee Safe and Secure Payment Checkout
Description
UNI-T UTG2082X
- Two channels
- 80 MHz maximum frequency
- 16-bit vertical resolution
- Arbitrary waveform length up to 64 Mpts
- 625 MSa/s sample rate
Advanced-Series Arbitrary Waveform Generator (2 Channels / 80MHz)
The UTG2000X series of instruments are economical, high-performance arbitrary waveform generators. They can generate a high precision, pure, and stable waveform output with a resolution as low as 1 uHz. With interfaces that provide for convenient operation and a multitude of standard features, the UTG2000X arbitrary waveform generators are ideal for the needs of learning, testing, and improving work efficiency.
Several Versions Available
The UTG2000X series of arbitrary function generators are available in multiple versions, primarily differing in the frequencies of the waveforms they can output. Please see the table below for a comparison.
| UTG2062X | UTG2082X | UTG2122X | |
| Sine wave | 1 μHz-60 MHz | 1 μHz-80 MHz | 1 μHz-120 MHz |
| Square wave | 1 μHz-30 MHz | 1 μHz-40 MHz | 1 μHz-50 MHz |
| Pulse wave | 1 μHz-30 MHz | 1 μHz-40 MHz | 1 μHz-50 MHz |
| Ramp wave | 1 μHz-3 MHz | 1 μHz-4 MHz | 1 μHz-5 MHz |
| Arbitrary wave | 1 μHz-30 MHz | 1 μHz-40 MHz | 1 μHz-50 MHz |
| Harmonic | 1 μHz-30 MHz | 1 μHz-40 MHz | 1 μHz-50 MHz |
| Expression | 1 μHz-15 MHz | 1 μHz-20 MHz | 1 μHz-25 MHz |
| PRBS | 1 μbps-30 Mbps | 1 μbps-40 Mbps | 1 μbps-50 Mbps |
| Gauss noise | 1 MHz-60 MHz | 1 MHz-80 MHz | 1 MHz-120 MHz |
| Resolution | 1 μHz | 1 μHz | 1 μHz |
Dual Channel Output
Dual channel output with full amplitude at 20 Vpp can be output under 20 MHz.
Multiple Modulation Types
The UTG2000X series supports several types of modulation output: AM, FM, PM, DSB-AM, ASK, FSK, PSK, 3FSK, 4FSK, BPSK, QPSK, OSK, SUM, QAM, and PWM.
Channel Tracking
Channel tracking simplifies the operation of dual channels. The phase, amplitude, and frequency of both channels can be controlled by a single parameter, making it easy to create deviation or tracking signals.
Arbitrary Waveform Editor
The arbitrary waveform editor can use more than one method to generate a waveform. A user can insert a standard waveform or freely draw one.
Generators / Counters/Function Generator Template | |
|---|---|
| Channels | 2 |
| Frequency Maximum | 80 MHz |
| Frequency Minimum | 1 uHz (0.000001 Hz) |
| Functions | Burst, Noise, Other, Pulse, Ramp, Sine, Square, Sweep |
| Max Amplitude Vpp @ 50 ohms | 10 V |
| Arbitrary | Yes |
| Sample Rate | 625 MSa/S |
| Screen Type | LCD, TFT |
| Color Screen | Yes |
| Digital Amplitude Resolution | 16 Bits |
| Triggering | Yes |
| Counter that displays frequency on screen. | Yes |
| Modulation Types | AM, FM, FSK, PSK, PWM |
| Graphical Display | Yes |
| Memory | 64 MP [megapoints] (65536 kB) |
| Direct Digital Synthesis (DDS) | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA, ETL, RoHS, UL |

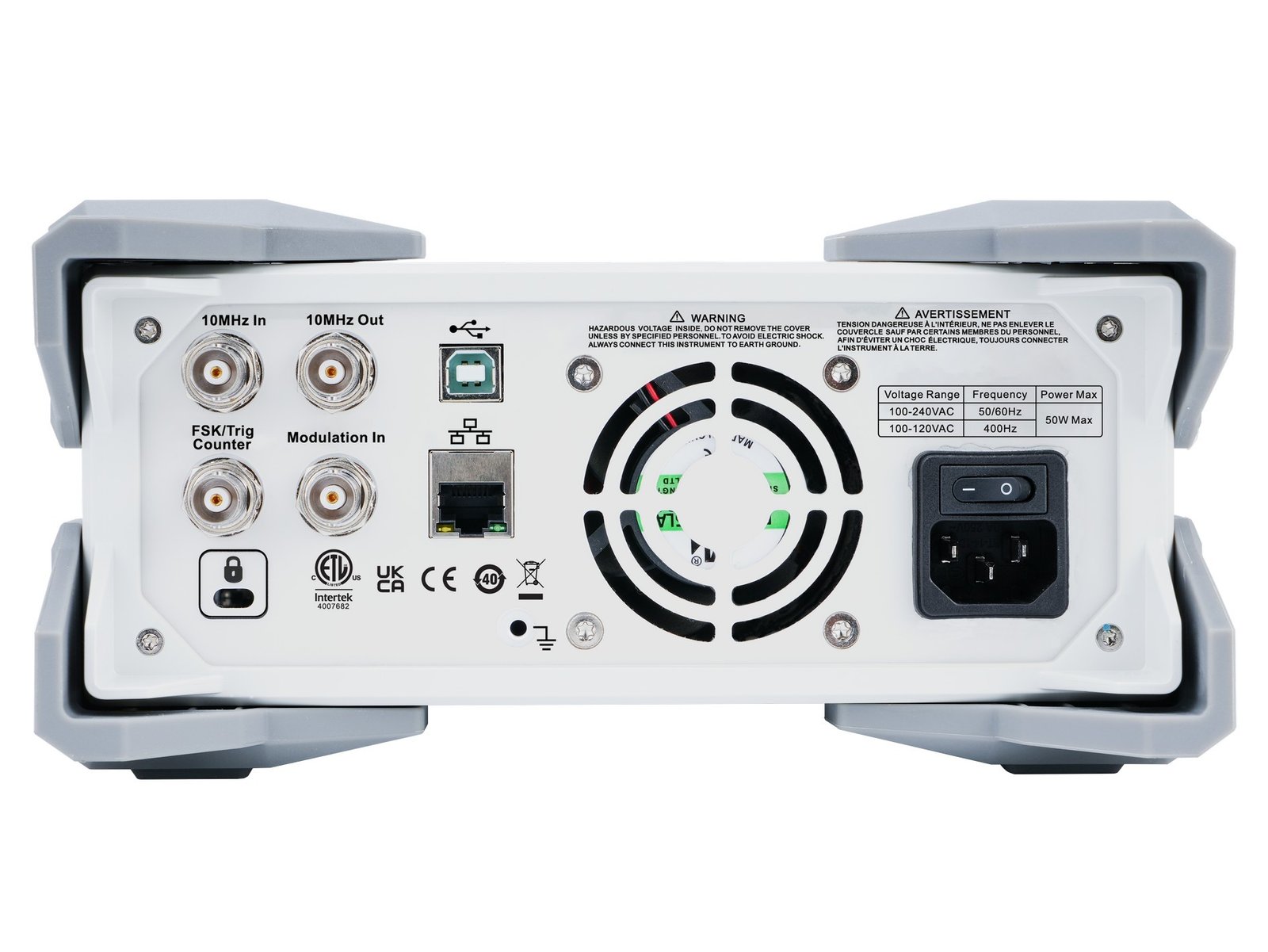

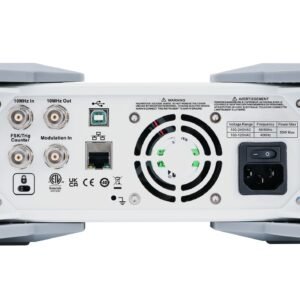

| Interfaces I/O | LAN / Ethernet, USB Host, USB |
| Power Supply Voltage | 120V 50/60 Hz |
