UNI-T UTG9504T – Function / Arbitrary Waveform Generator (4 Channel / 500 MHz)

• 4 channels
• 500 MHz maximum frequency
• Maximum sampling rate: 2.5 GSa/s
• Nine basic waves: sine, square, ramp, pulse, harmonic, noise, DC, arbitrary
• Modulation: AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, SUM

Featuring an array of advanced functionalities, the UNI-T UTG9000T Elite-Series Arbitrary Waveform Generator is your gateway to precision, versatility, and unparalleled performance. Step up your testing capabilities with the UTG9000T waveform generator, a genuine game-changer for your engineering pursuits.

Several models available

UNI-T offers several models of the UTG9000T waveform generator. The following is a brief overview of performance for each. For more detailed information, please view the document linked here.

Channels 1 and 2

Channels 3 and 4

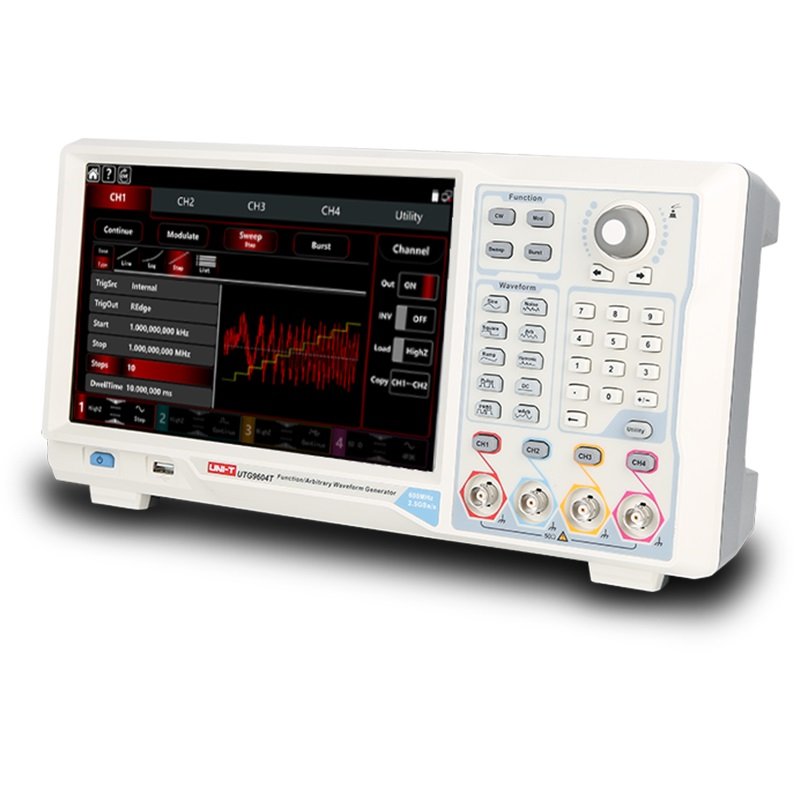

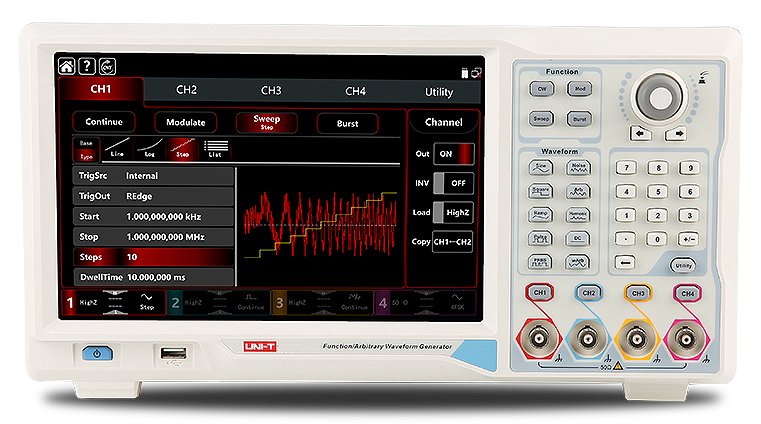

The UTG9000T features four channels, with CH1 and CH2 designated as the primary channels, while CH3 and CH4 belong to the secondary channels. Users have the flexibility to switch and view signal parameters for all four channels simultaneously on a single screen, simplifying operation and facilitating the recording of parameters.

The UTG9000T offers the capability to combine CH1 with CH2 and CH3 with CH4, providing exceptional real-time and true superposition features to display complex waveforms effectively.

The UTG9000T provides support for various analog and digital modulation techniques, including AM, FM, PM, DSBAM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, and SUM. The device offers both internal and external modulating signal sources, offering a diverse range of modulation signals to cater to waveform generation requirements spanning radio, TV, and mobile networks.

In addition to linear and logarithmic frequency modes, the UTG9000T introduces two additional modes: stepping and list. Users can specify the frequency step and time interval between each frequency point, allowing the generation of a waveform for stepping sweeps. Alternatively, by predefining a list, the output time interval corresponding to each frequency point in the list generates a frequency waveform. This feature empowers users to custom compile frequency waveforms according to their specific requirements.

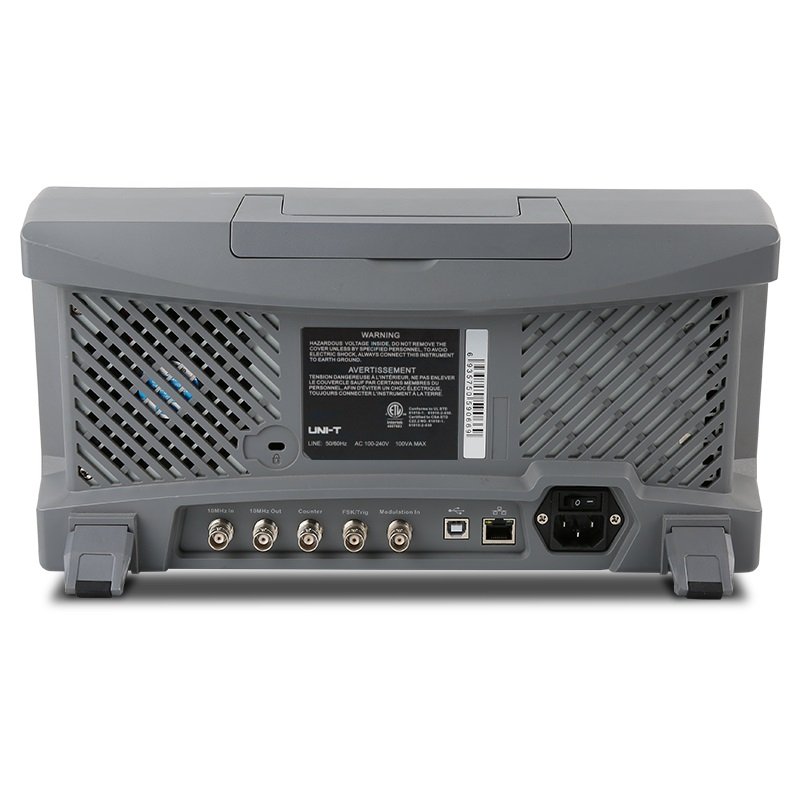

Incorporated within is a built-in frequency meter, simplifying the process of testing frequency signals. To perform the test, connect the signal to the “counter” on the rear panel, and the result will be readily obtained.
